Starting System

Starting System:

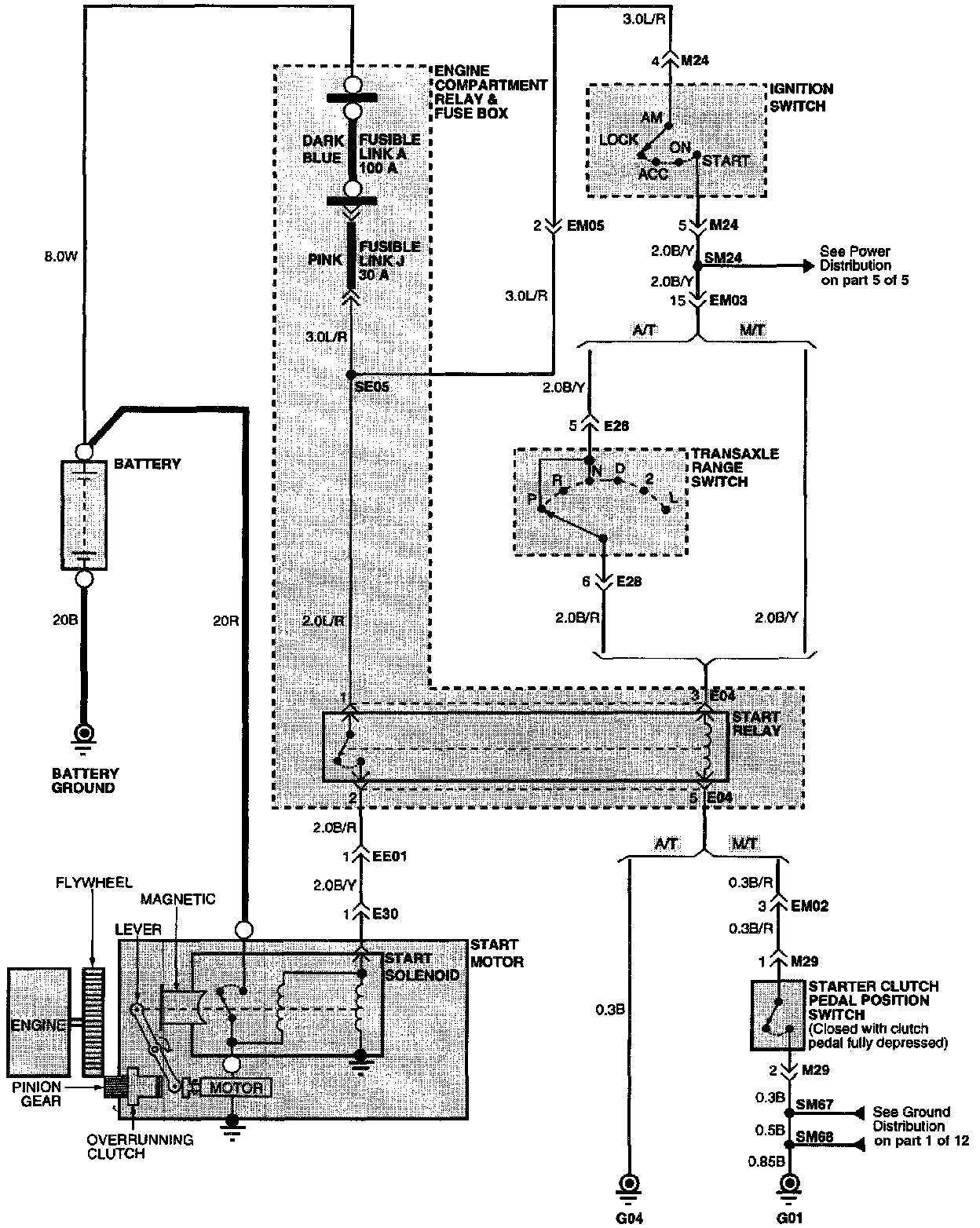

Circuit Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Starting System.
Locations
