Connector Configurations

Connector Configuration:

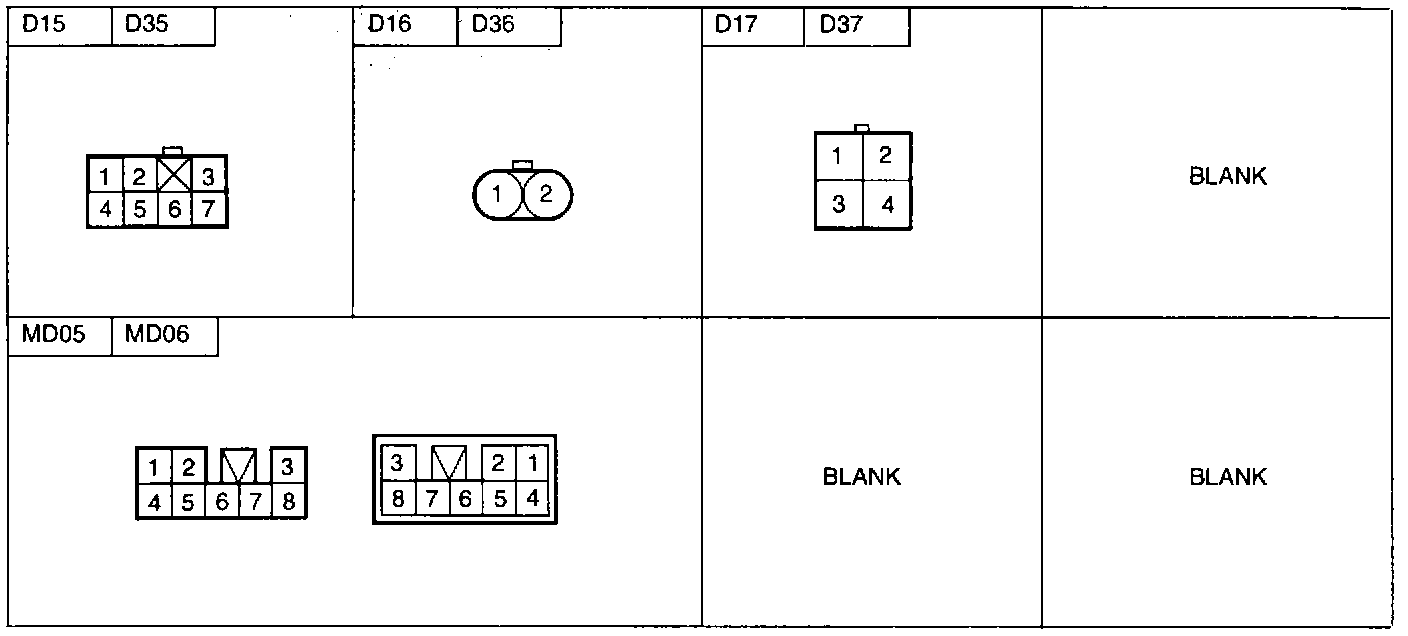

This information shows the cavity or terminal locations in all the multi-pin connectors shown in the electrical diagrams. It is helpful for you to locate check points, together with the wire colors and terminal numbers in the schematic. The configuration drawings show the connector views as seen from a component after the harness connector has been disconnected. When more than one connector is connected to a component, the connector are all shown together. Both halves of in-line connectors are shown together.
