DTC 47

DESCRIPTION








- If the trouble occurs, ABS Control Module (ABSCM) lights the ABS-Service Reminder Indicator (SRI) while at the same time terminating ABS operation. At this time, the ABSCM records a diagnostic code in memory.

WIRING DIAGRAM





- Refer to image for circuit schematic.

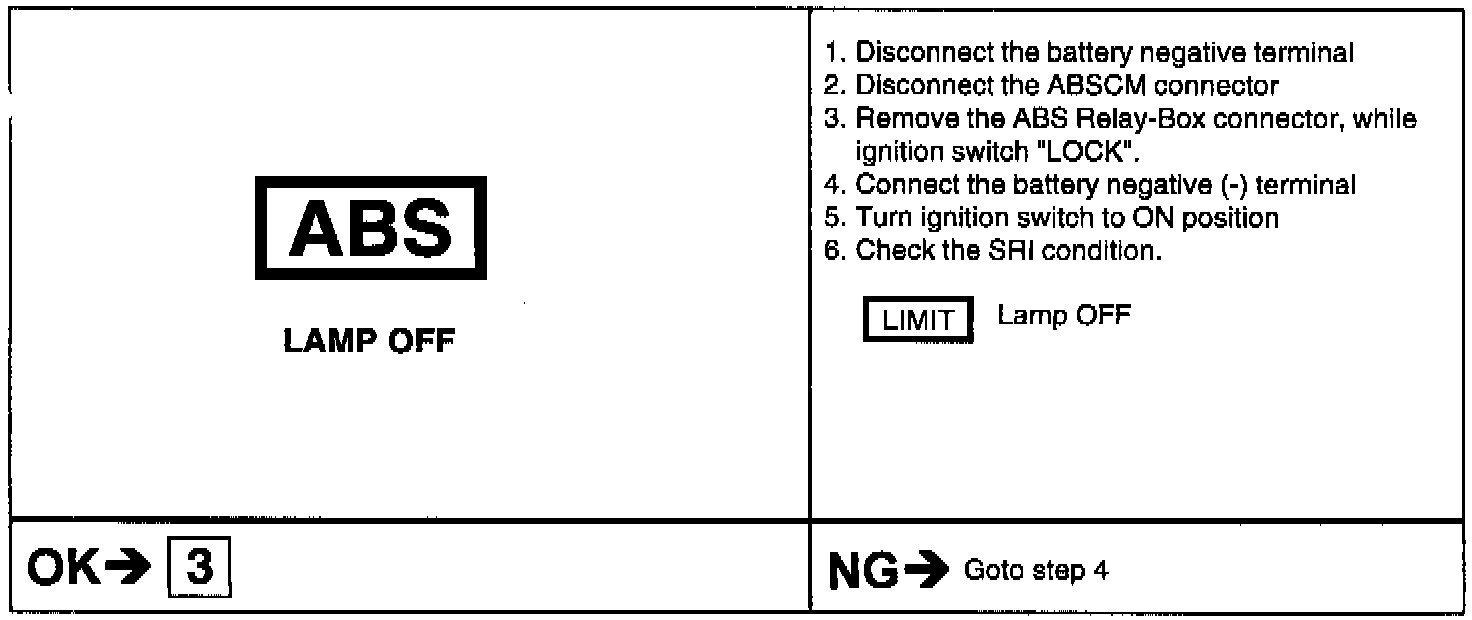

INSPECTION PROCEDURE






1. Check the diagnostic code





2. Check the ABS Service Reminder Indicator circuit without Relay-Box





3. Check the ABS Relay-Box





4. Check the ABS Relay-Box harness





5. Check the ABS Control Module (ABSCM) connector harness





6. Check the fuse





7. Check the ABS Service Reminder Indicator (SRI) Circuit





8. Check the ABS-Relay Box (Fail safe relay)





9. Check the Fail safe relay
