Windows

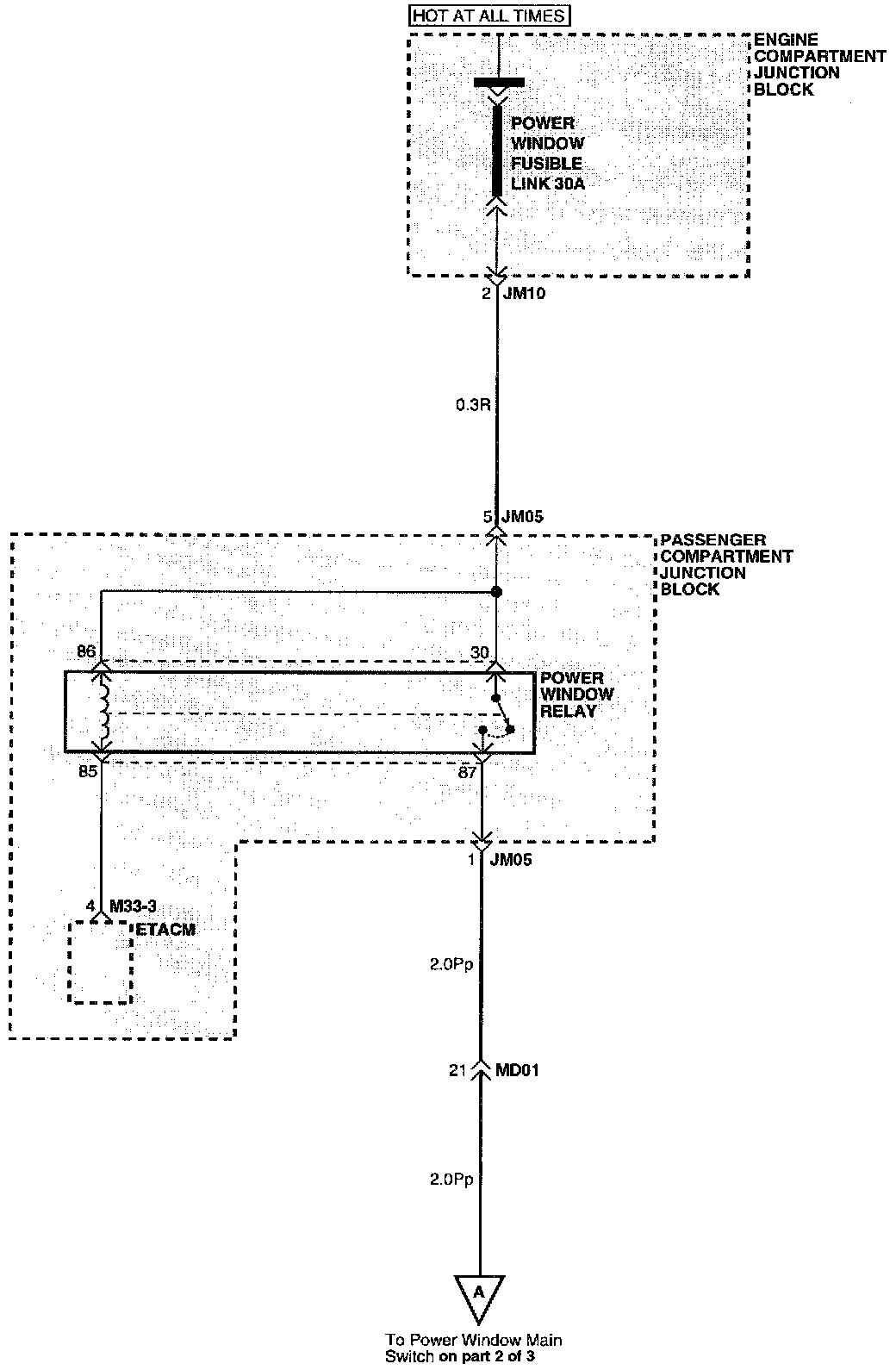

Power Windows (Part 1 Of 3):

(Part 1 of 3)
Engine Compartment Junction Block
Passenger Compartment Junction Block
- ETACM
- Power Window Relay

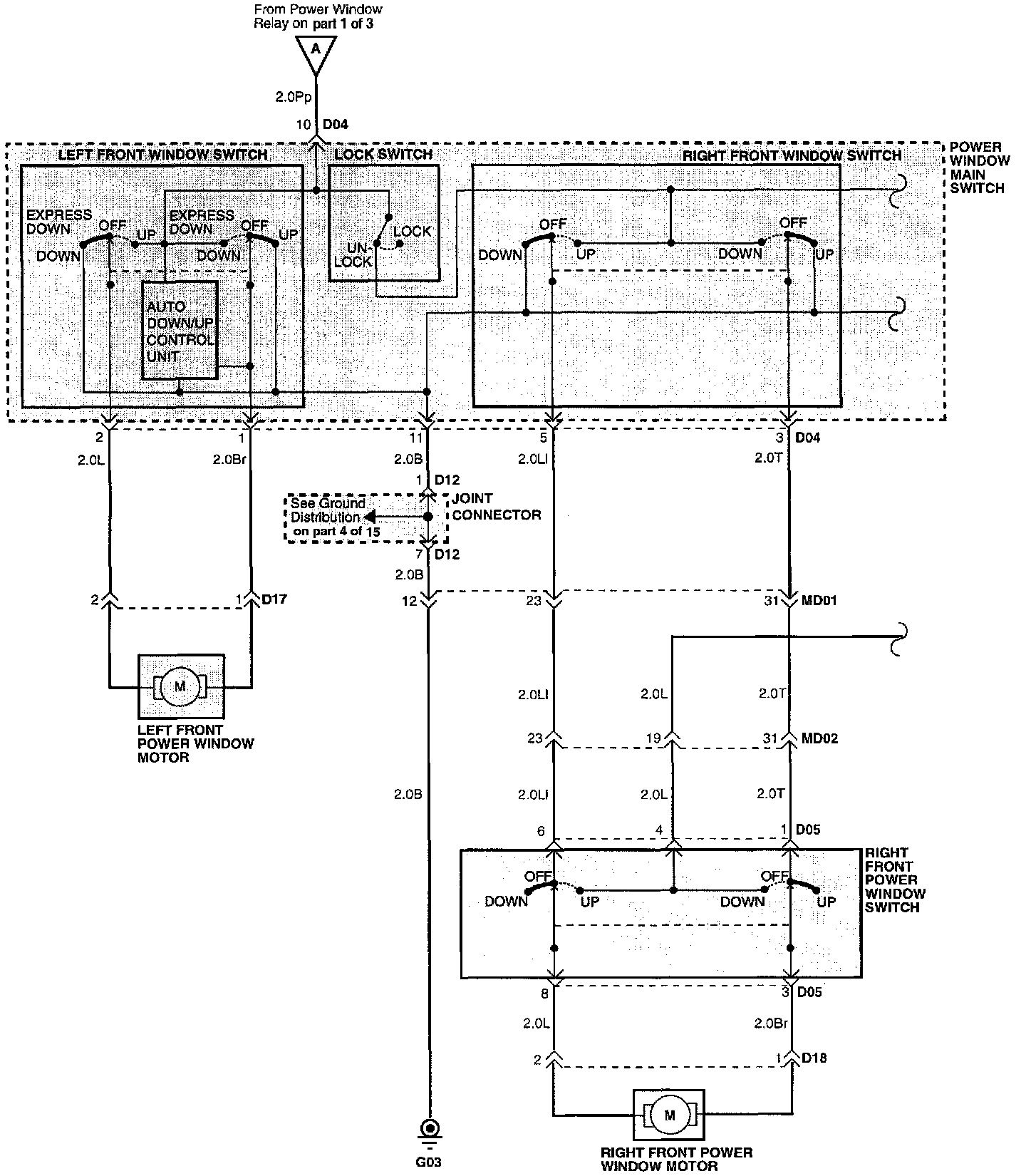

Power Windows (Part 2 Of 3):

(Part 2 of 3)
Joint Connector
Left Front Power Window Motor
Power Window Main Switch
- Left Front Door Window Switch
- Lock Switch
- Right Front Window Switch
Right Front Power Window Motor
Right Front Power Window Switch

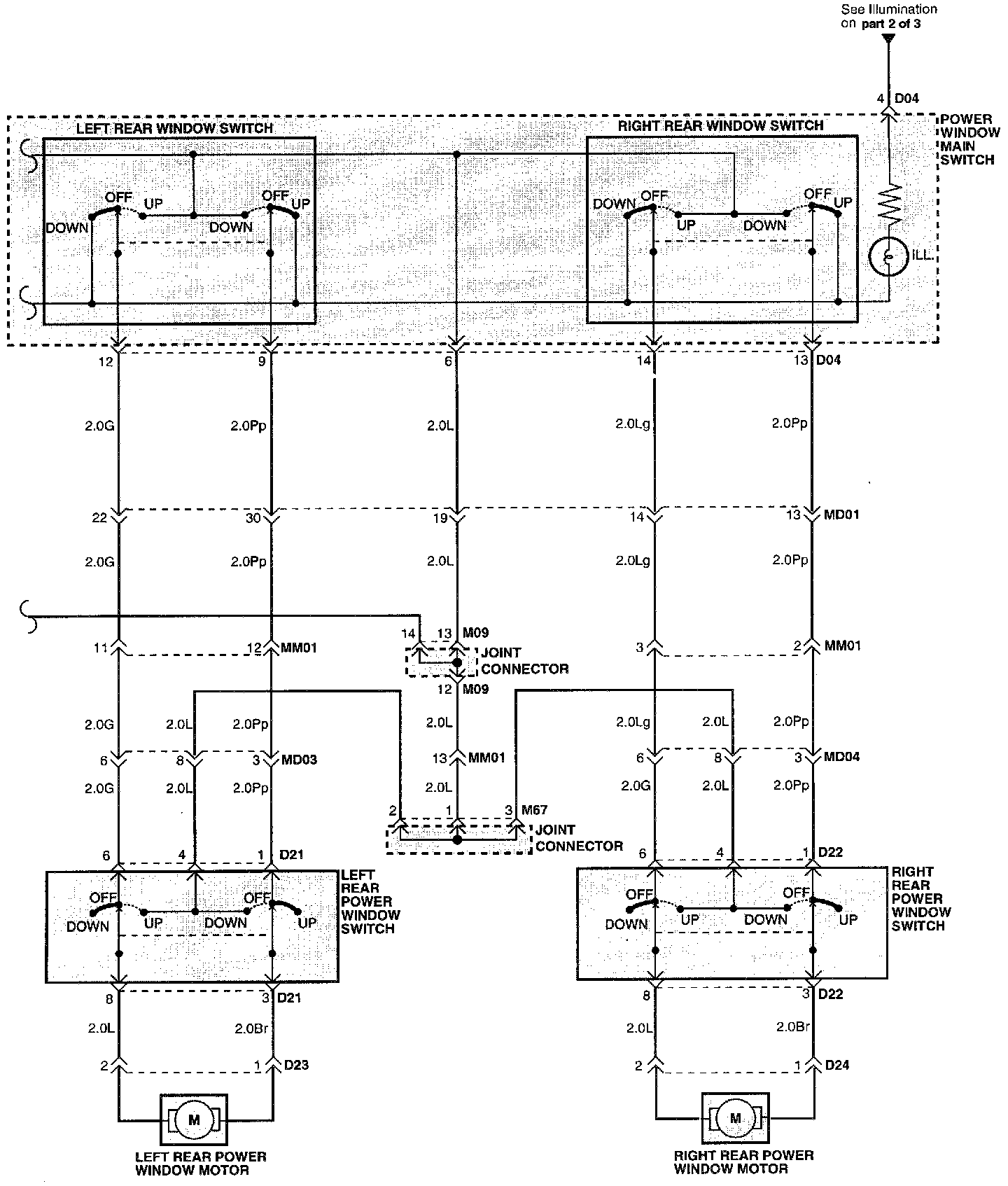

Power Windows (Part 3 Of 3):

(Part 3 of 3)
Joint Connector
Left Rear Power Window Motor
Left Rear Power Window Switch
Power Window Main Switch
- Left Rear Window Switch
- Right Rear Window Switch
Right Rear Power Window Switch


Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Windows / Locations.
Locations
