Manual Transaxle (Inspect Oil Level)








Inspect for leakage in each component and check the oil level by the filler plug. If the oil is contaminated, it is necessary to replace it with new oil.

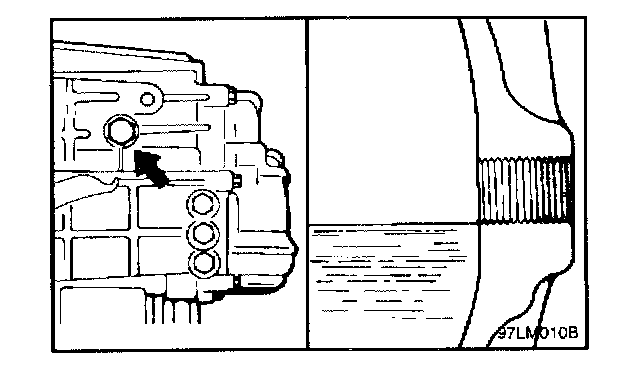

1. With the vehicle parked at a level place, remove the filler plug and make sure that oil level is the same level as the plug hole.
2. Check to that the transaxle oil is not dirty.
