Electrical Diagrams

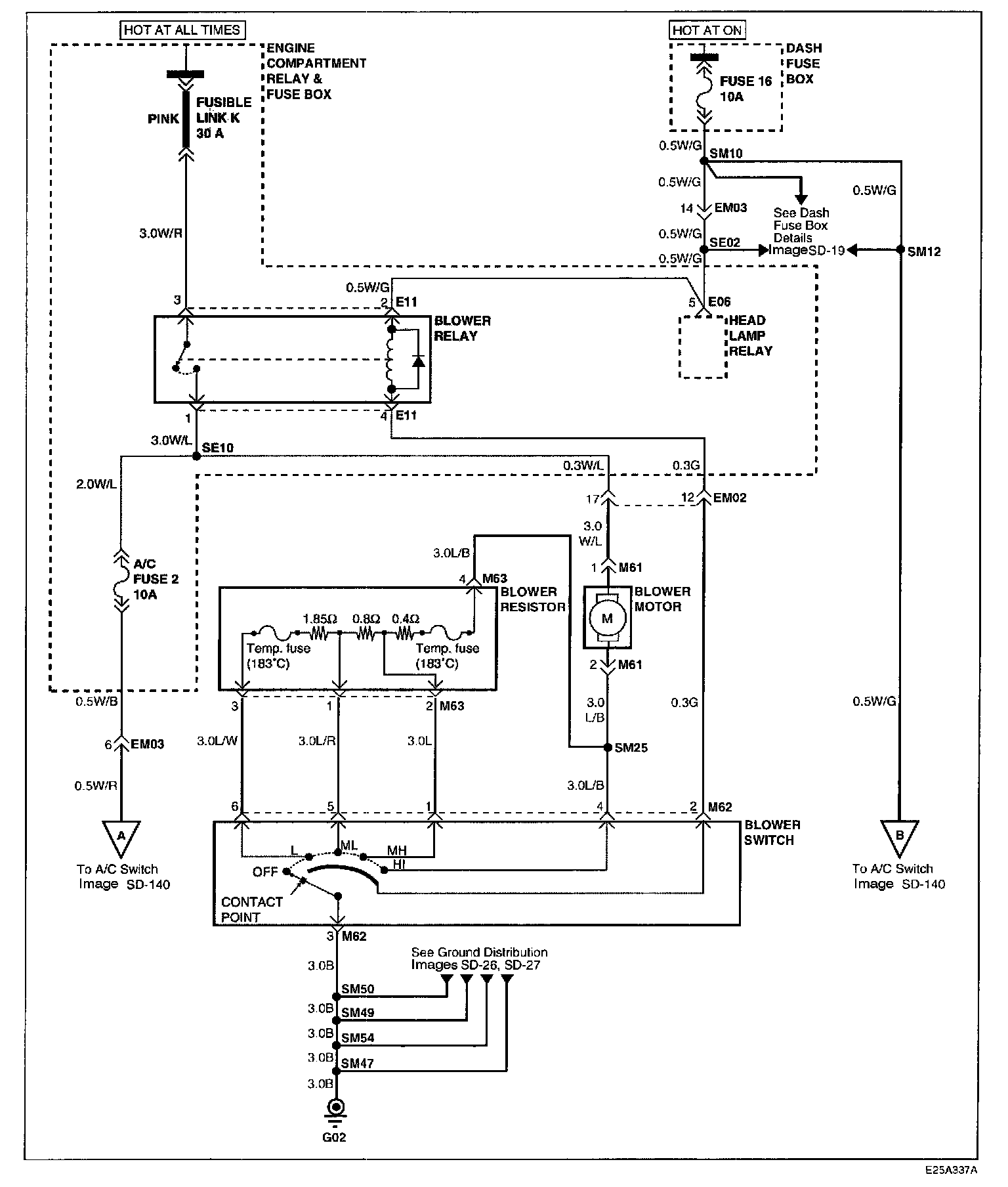

Image SD - 138:

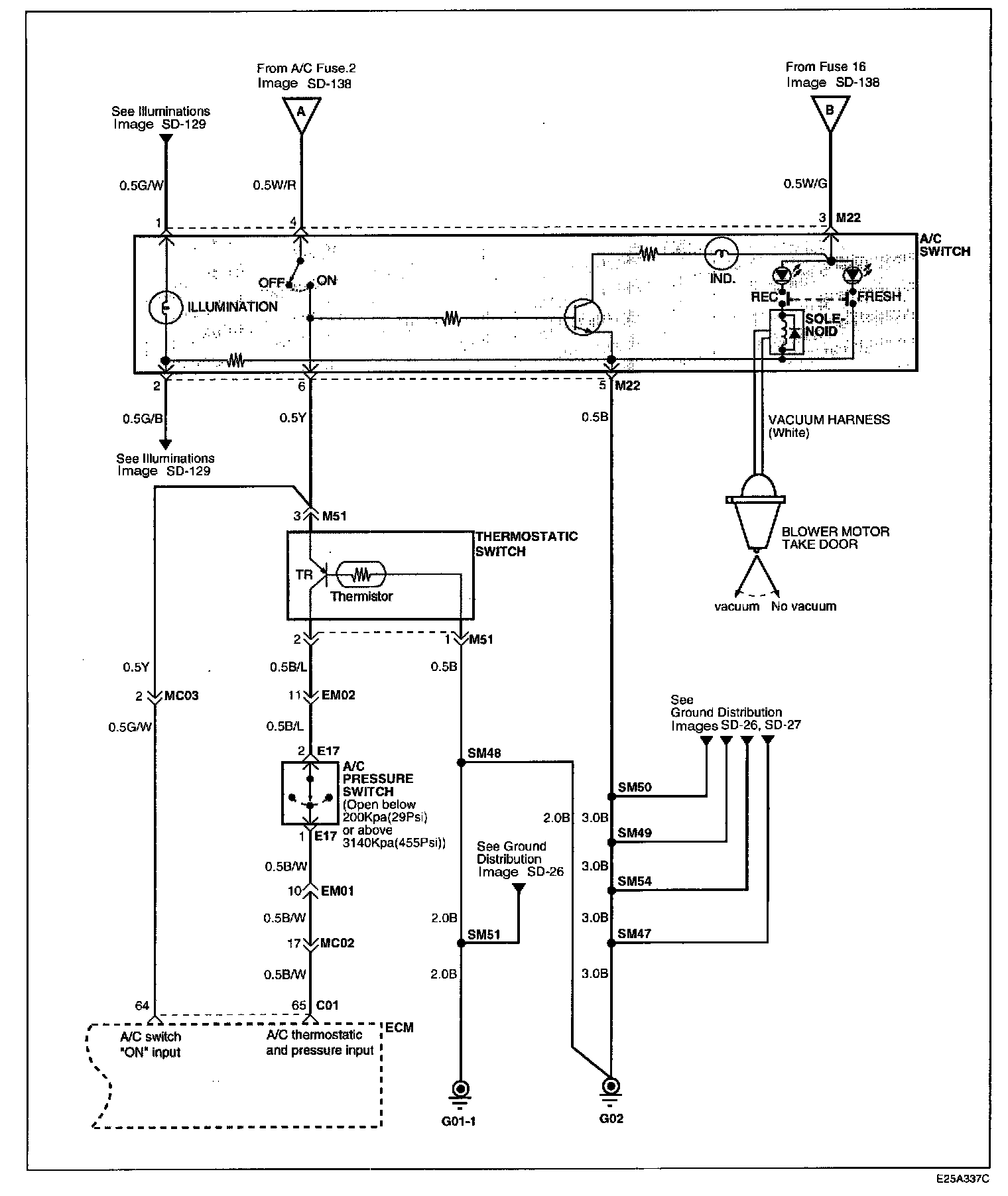

Image SD - 139:

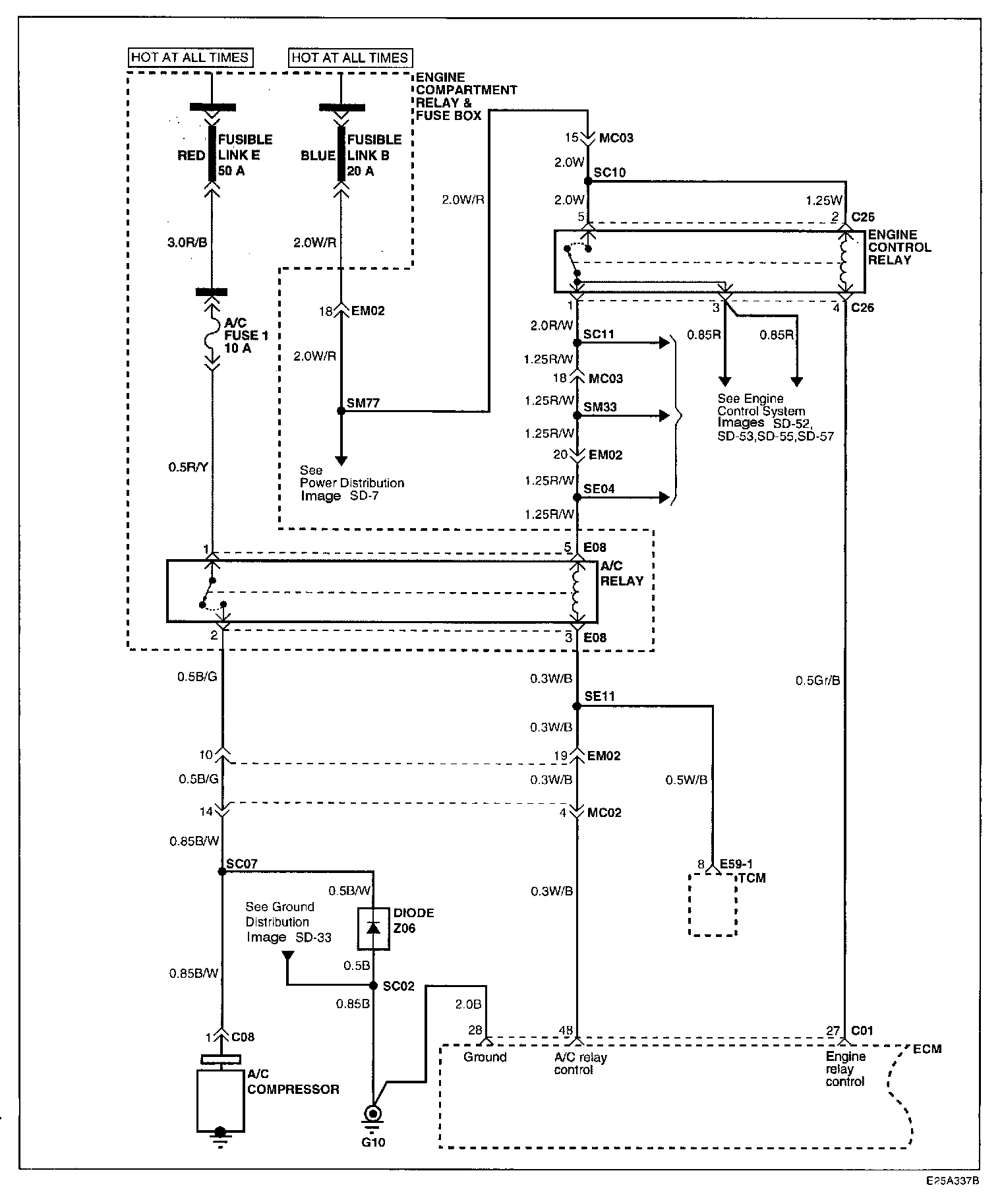

Image SD - 140:

Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.

Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
