Evaporator Temperature Sensor / Switch: Service and Repair

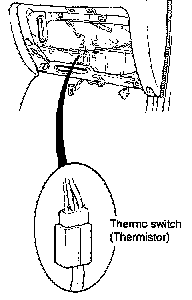

Thermostatic Switch (Thermistor)

1. Open the glove box and remove the glove box latching mechanism after removing mounting screws.

2. Remove the glove box mounting screws.

3. Remove the glove box.

4. Remove mounting screws of the glove box mounting plate.

5. Remove the glove box mounting plate.

6. Remove evaporator core. Service and Repair
7. Disconnect the thermostatic switch connector.

8. Remove thermostatic switch.
