Fluid - M/T: Service and Repair

REPLACEMENT OF TRANSAXLE GEAR OIL
Use HP Gear Oil SAE 75W/90 (API-GL 4)

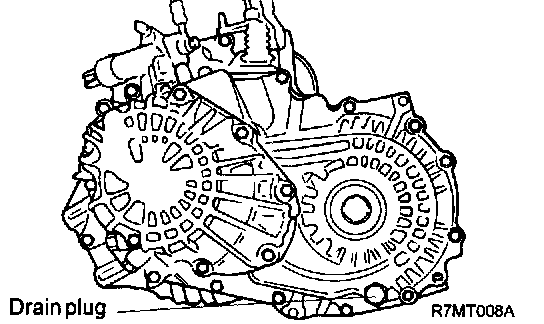

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.

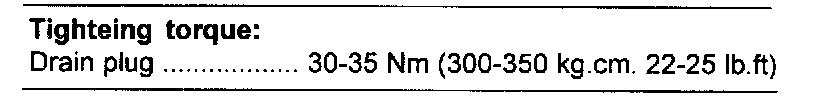

2. Replace the gasket with a new one and install the drain plug.

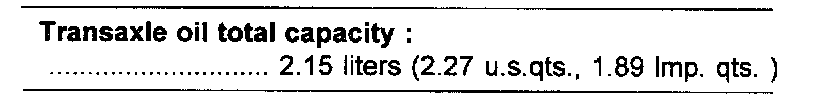

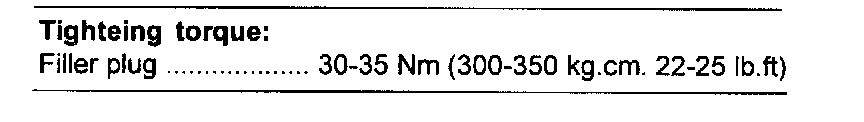

3. Add new oil through the filler plug, filling to the same level as the plug opening.
