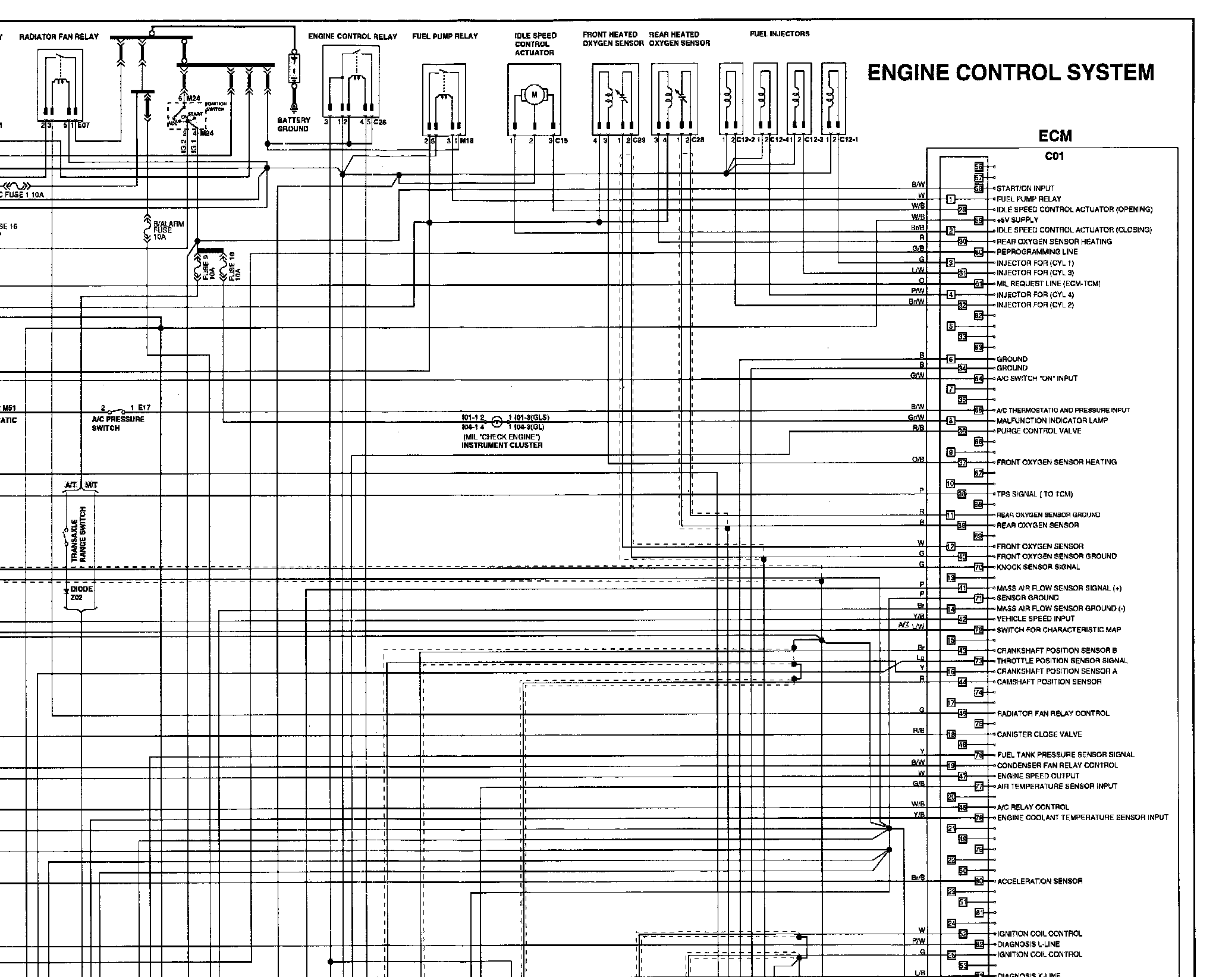

Engine Control System Wiring Diagrams

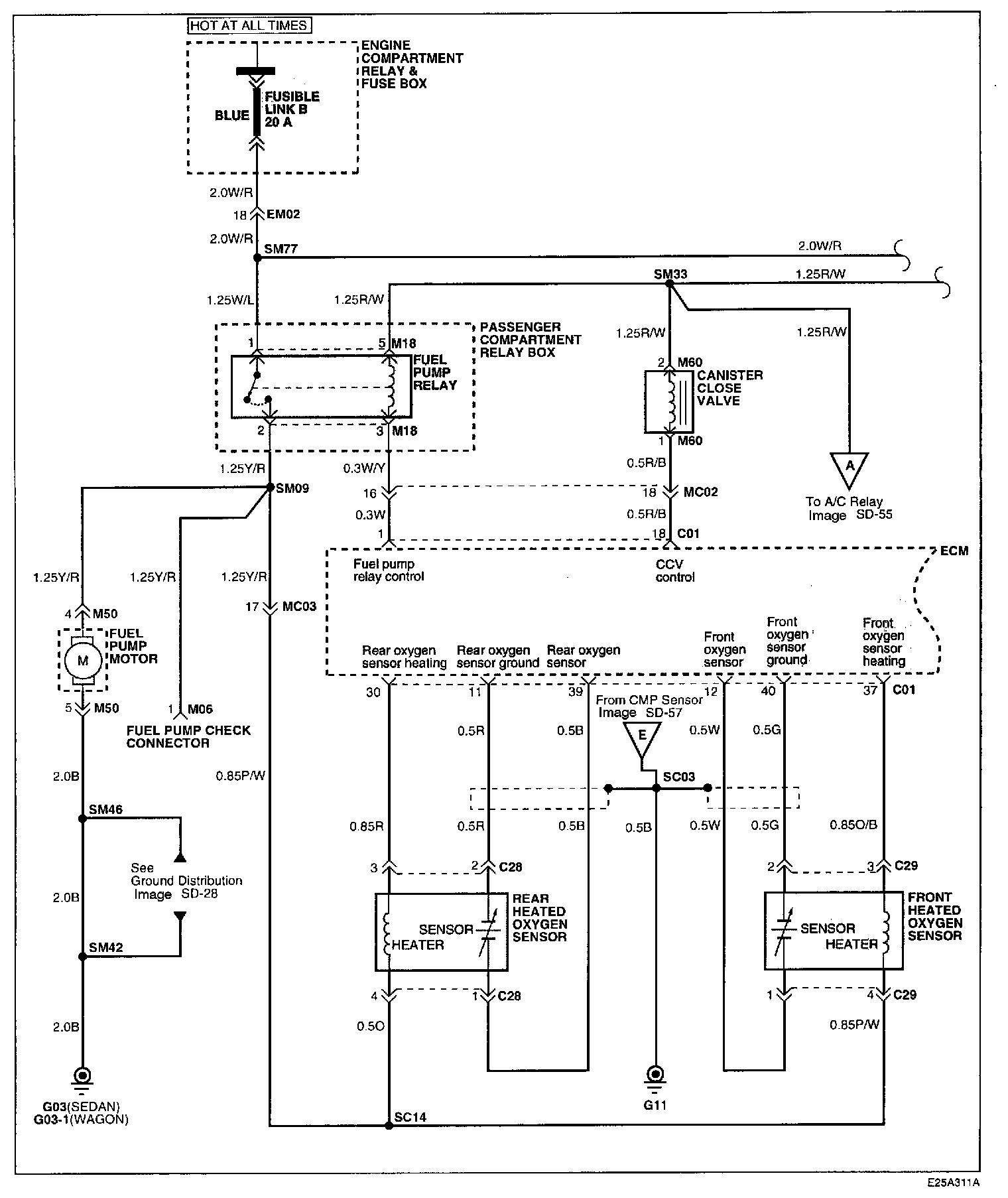

Image SD - 52:

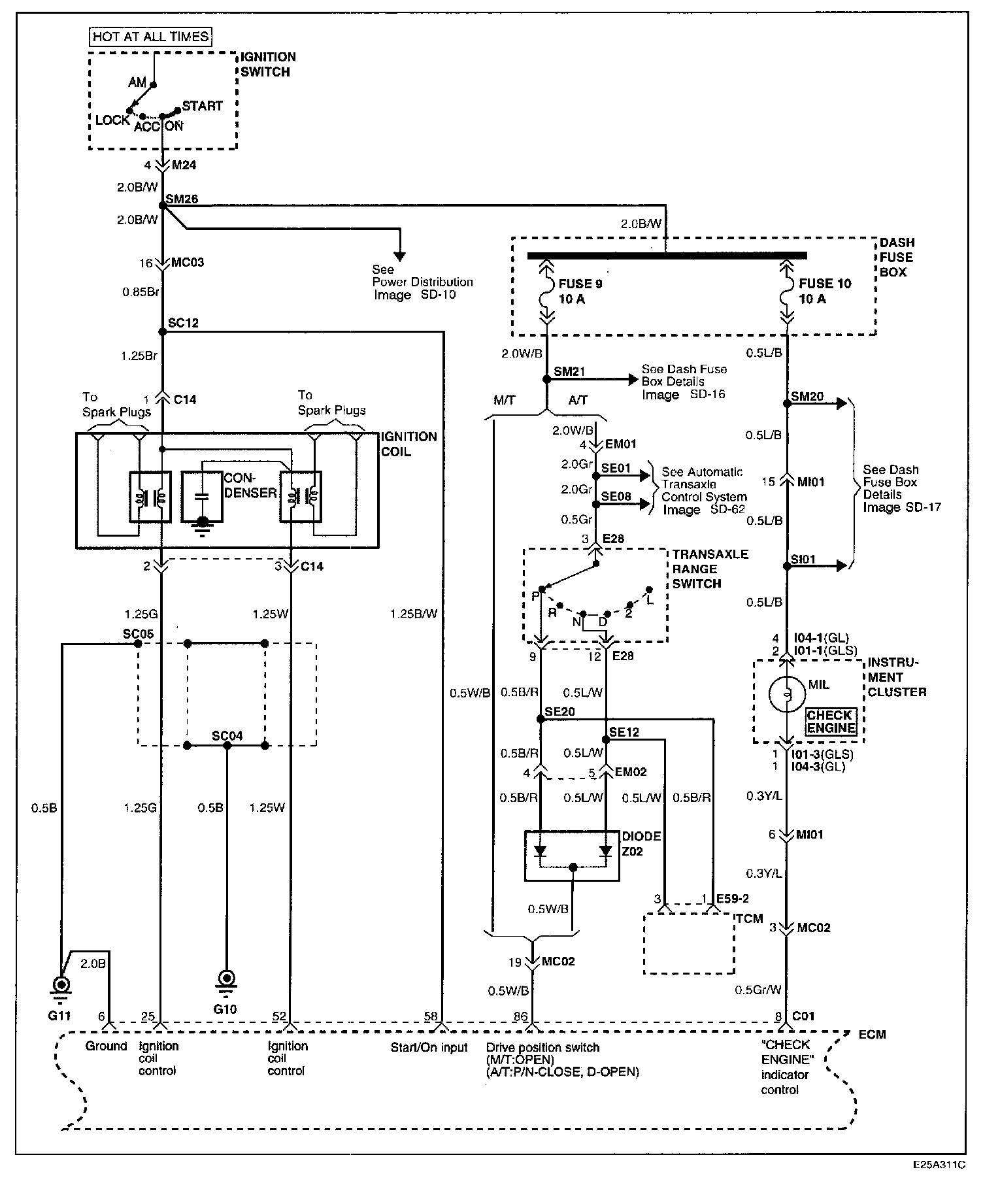

Image SD - 53:

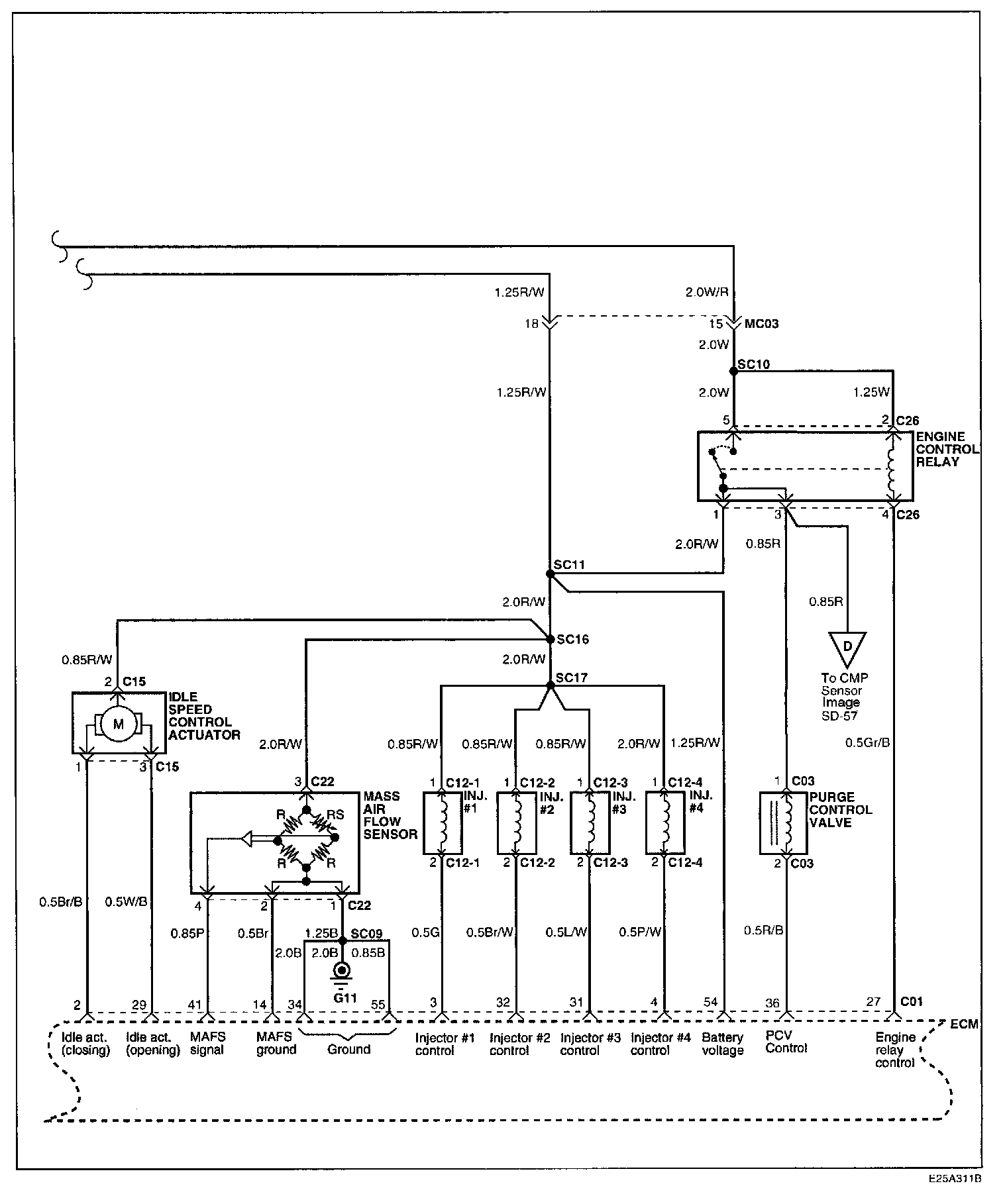

Image SD - 54:

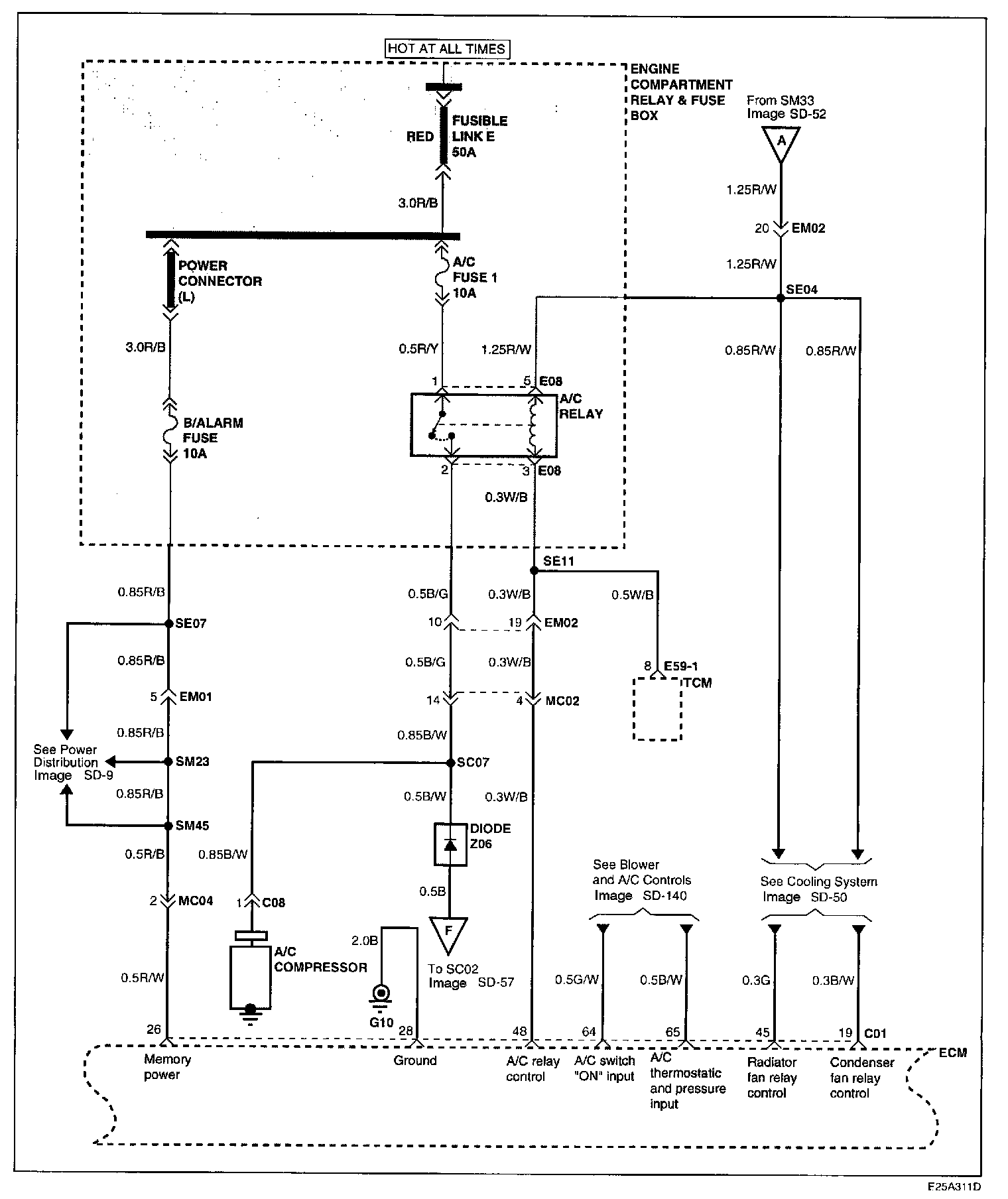

Image SD - 55:

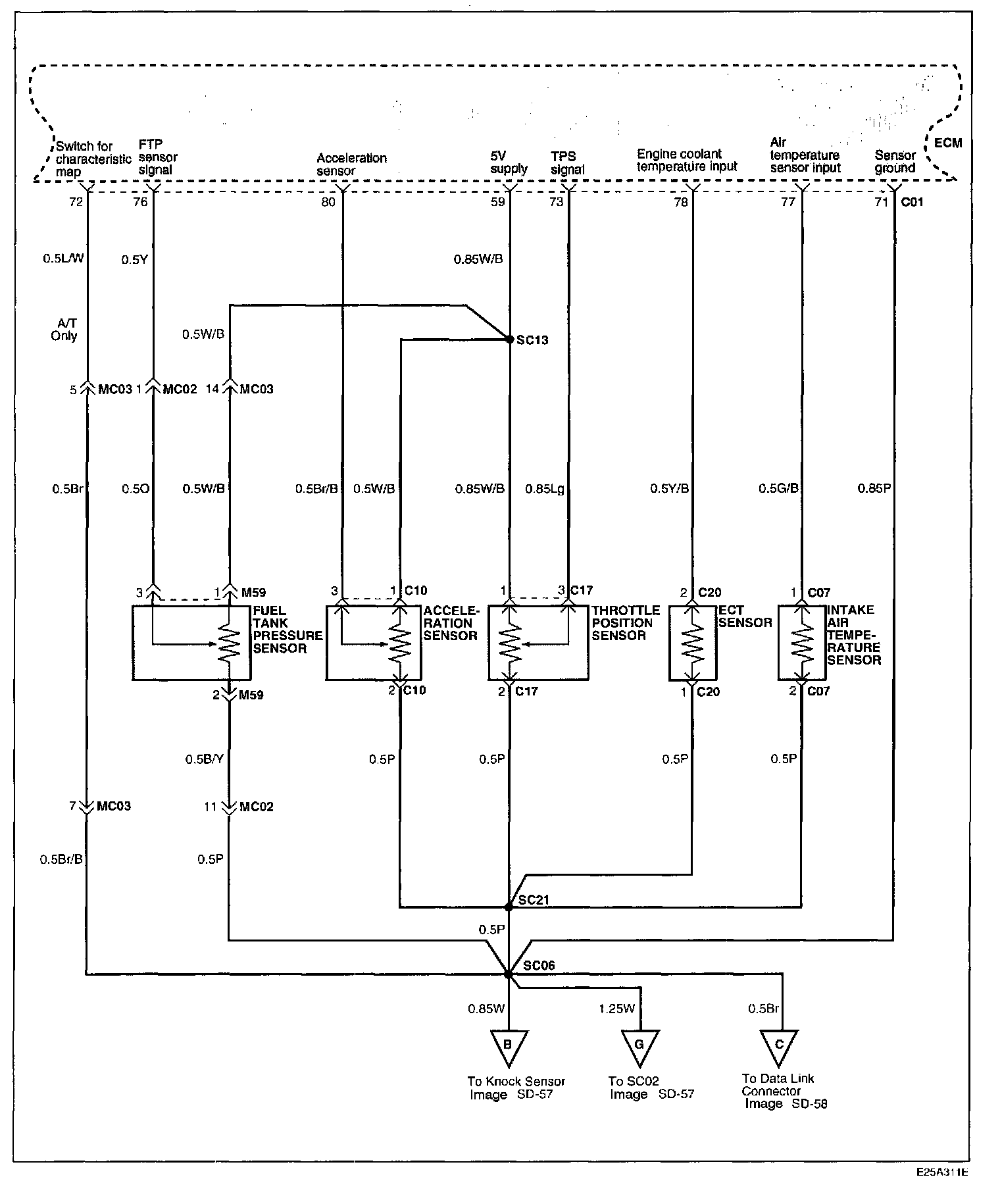

Image SD - 56:

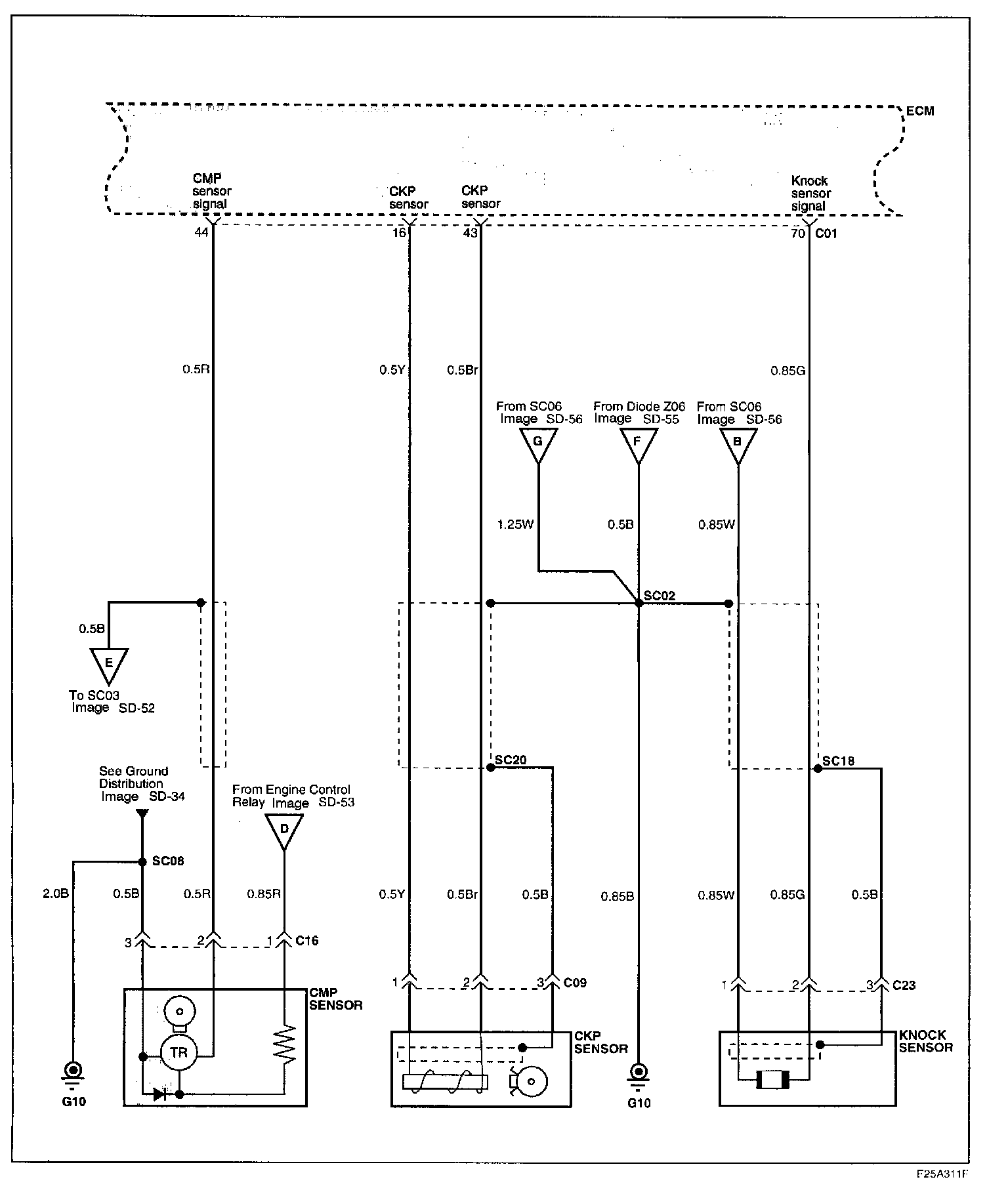

Image SD - 57:

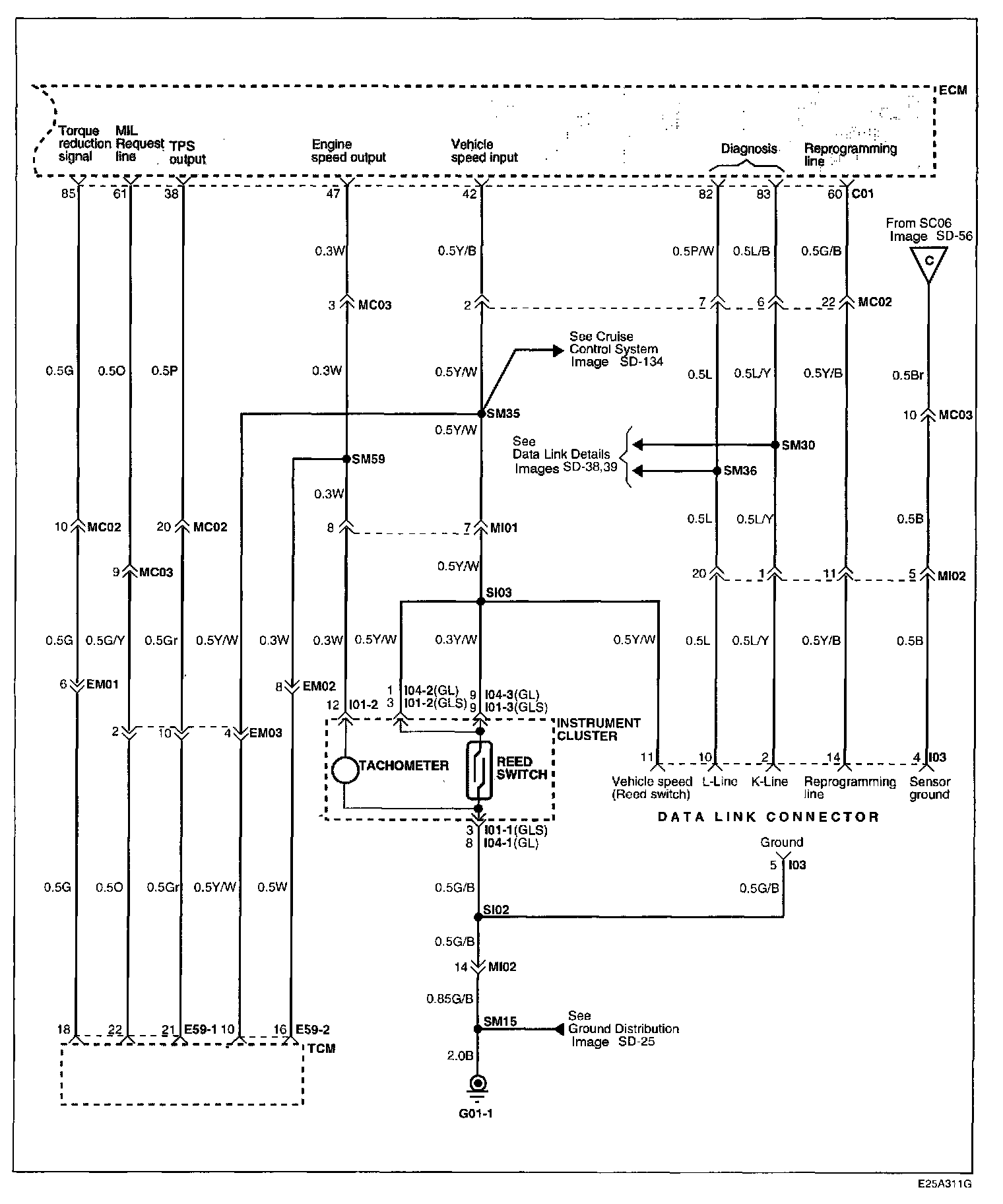

Image SD - 58:

� iD�1iD�eiDImage SD - 58-1:

Schematic Diagrams

Connector Configurations Are Found In The Diagram Section (Elantra) Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section (Elantra) Of Vehicle.
Locations
