Ignition Switch-ST [M/T]
The
ignition switch-ST inputs a high signal to the ECM while the engine is cranking. The ECM provides fuel injection control, etc. at engine start-up based on this signal.

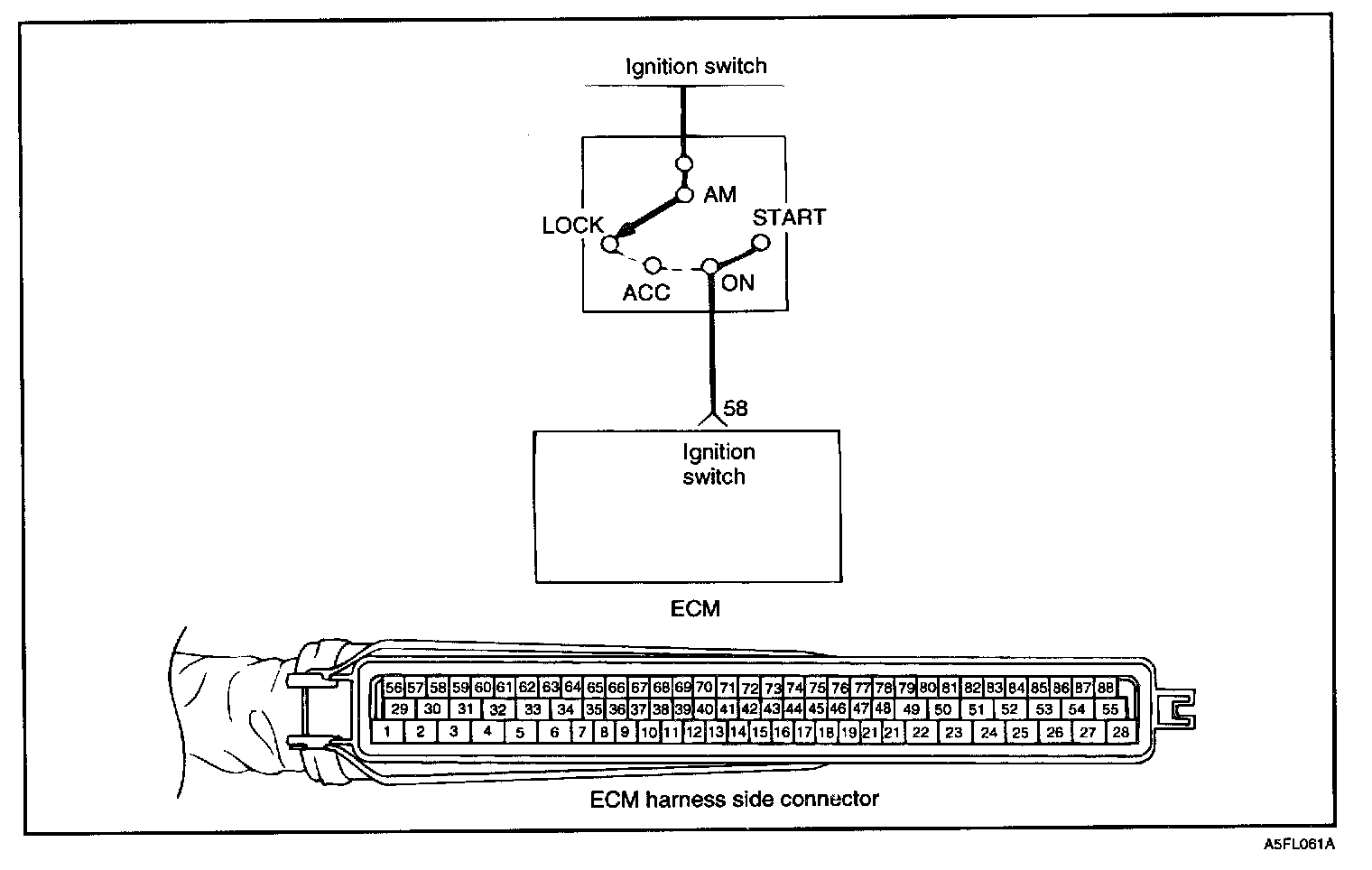

Circuit Diagram:

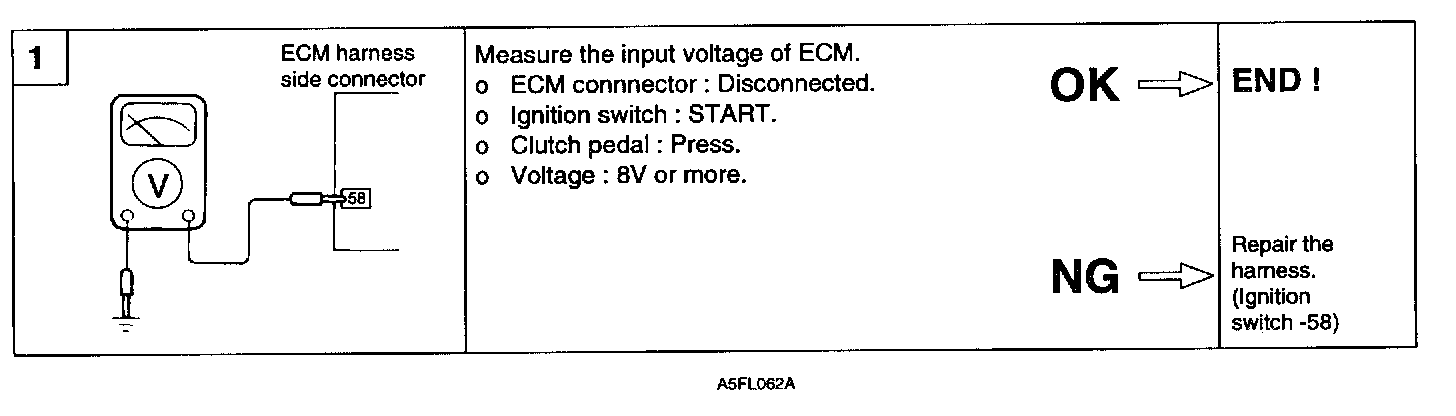

Harness Inspection (Step 1):
