Front Seat

Front Seat:




COMPONENTS

REMOVAL AND INSTALLATION

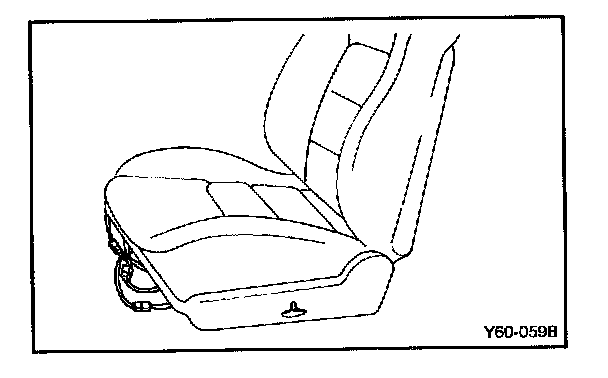

1. Remove the front seat mounting covers and loosen the mounting nuts and bolts.

Tightening torque
Front seat mounting bolts: 3.5 - 5.5 kg.m (25.4 - 40 lb.ft)
Front seat mounting nuts: 2.4 - 3.6 kg.m (17.4 - 26.1 lb.ft)




2. Disconnect the power seat connector or seat warning connector, seat heated connector, airbag connector.

3. Remove the front seat assembly.
4. Installation is the reverse of removal.

NOTE: Connect the connectors securely.
