Windows

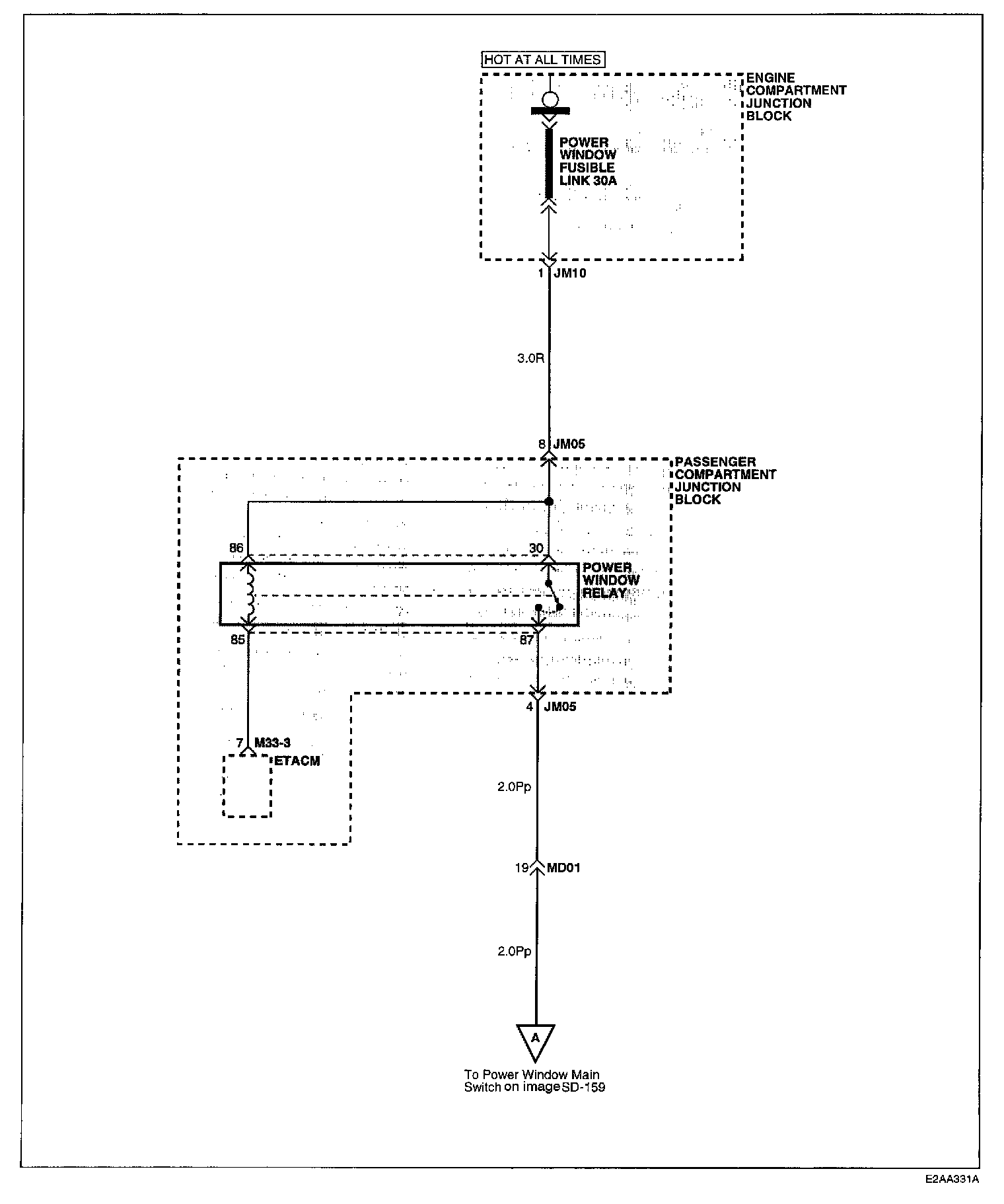

Image SD-158:

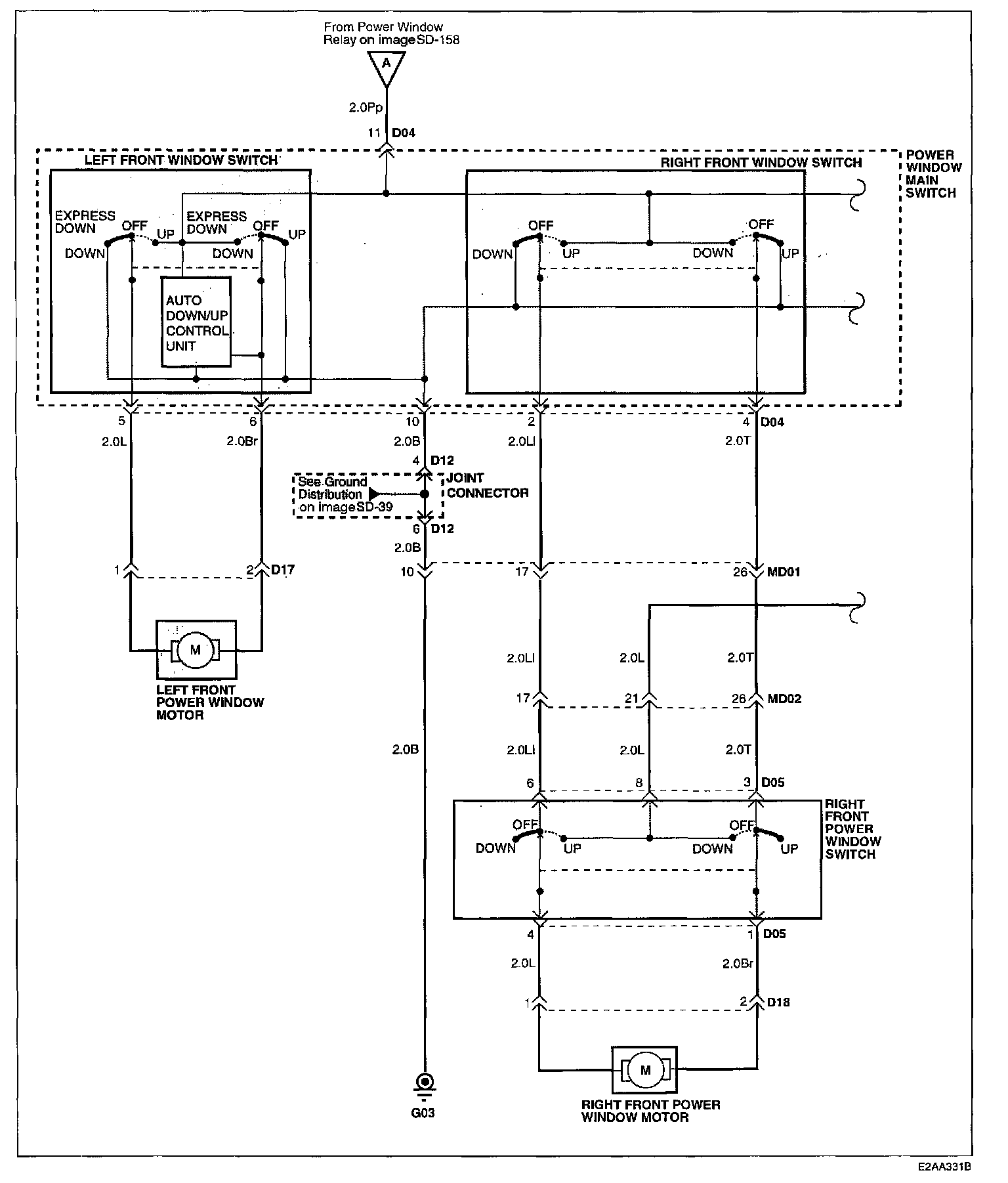

Image SD-159:

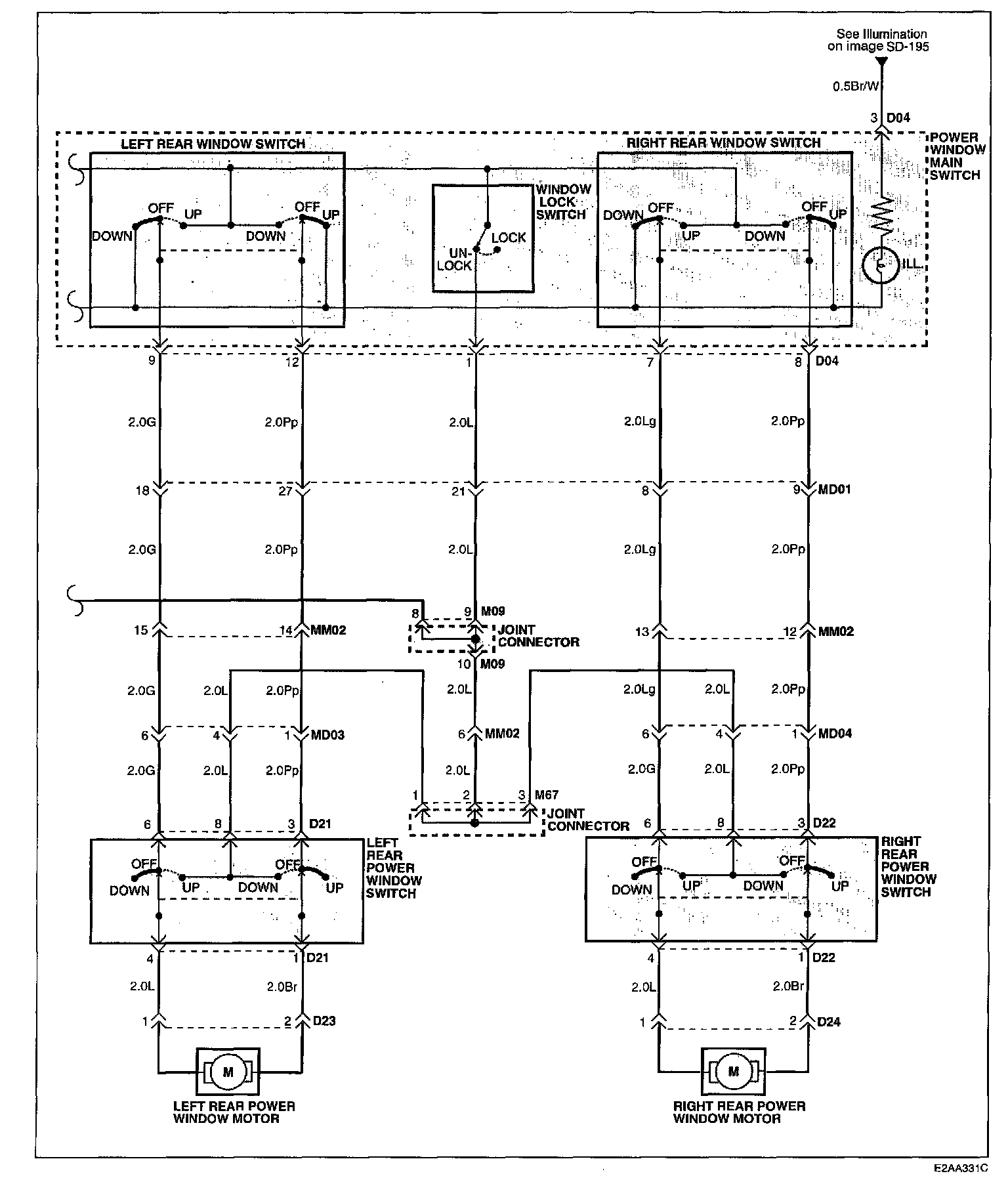

Image SD-160:

Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
