Engine Mounts

REMOVAL
Attach a cable or chain to the engine hooks, and then lift enough so that there is no pressure on the insulators.

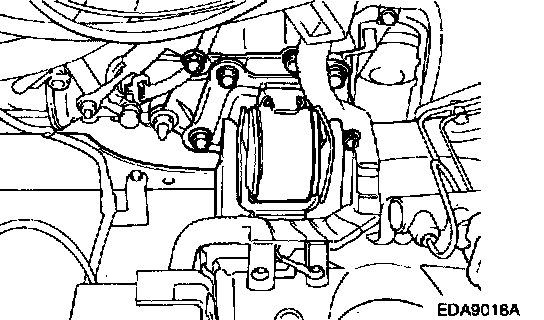

Engine Mounting
1. Remove the engine mount insulator bolts.
2. Remove the engine mount bracket from the engine.

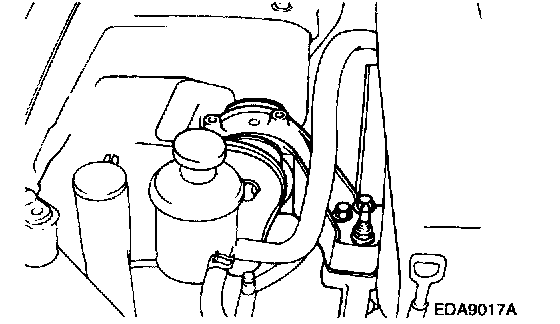

Transaxle Mounting
1. Remove the transaxle mounting bolt.
2. Remove the transaxle bracket.

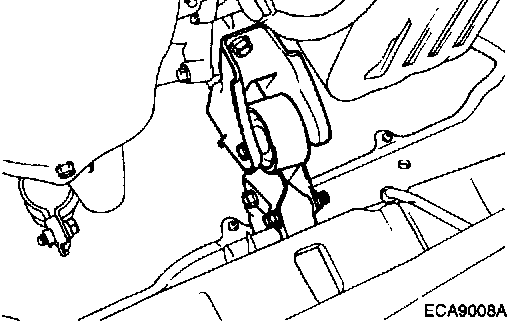

Front Roll Stopper
1. Remove the front roll stopper upper and lower bolts.
2. Remove the front roll rod assembly.

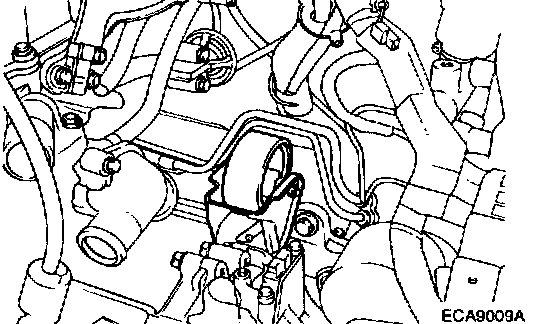

Rear Roll Stopper
1. Remove the bolt from the rear roll stopper.
2. Remove the rear roll stopper from the sub-frame.





INSPECTION ITEMS
