Air Conditioning Switch: Testing and Inspection

AIR CONDITIONING SWITCH



1. Check for continuity between terminals No.21 and No.22.

MODE CONTROL SWITCH

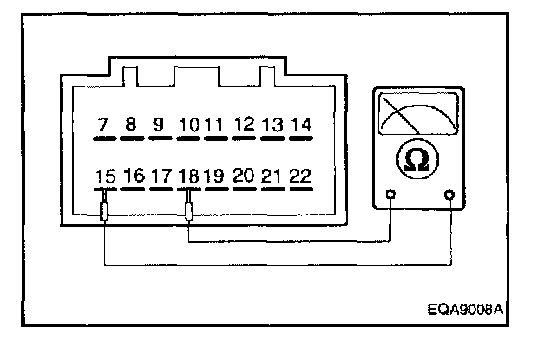

1. Check for continuity between terminals.
If continuity is not as specified, replace the control panel.
