Blower Motor Switch: Testing and Inspection

CHECKING OF THE CONTROL PANEL ASSEMBLY BLOWER SWITCH

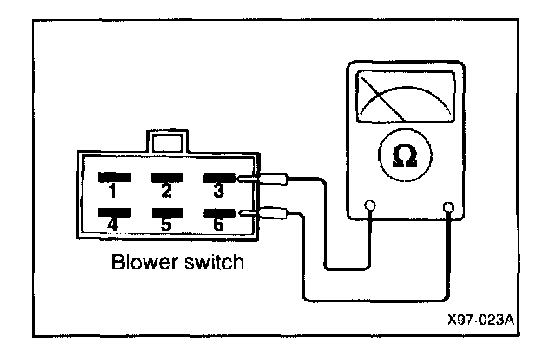

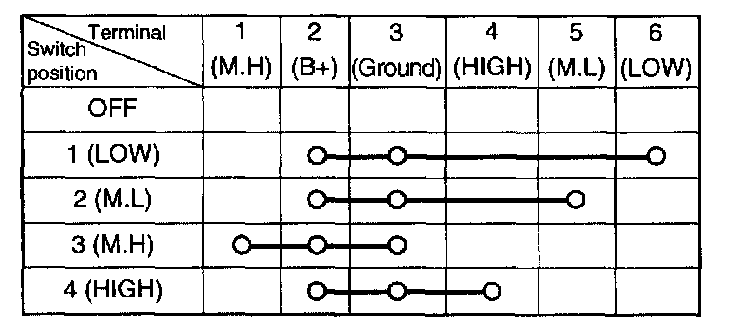

1. Check for continuity between terminals as shown.

If continuity is not as specified, replace the control panel.
