Condenser Fan: Testing and Inspection

CONDENSER AND CONDENSER FAN COMPONENTS

ON-VEHICLE INSPECTION

Condenser
1. Check the condenser fins for blockages or damage. If the fins are clogged, clean then with compressed air. If the fins are bent, straighten then with a screwdriver or a pair of pliers.
2. Check the condenser fittings for leakage. Repair or replace if necessary.

Condenser fan assembly
1. Check the condenser fan for blockage or damage.
2. Check the connection of the harness coupler.

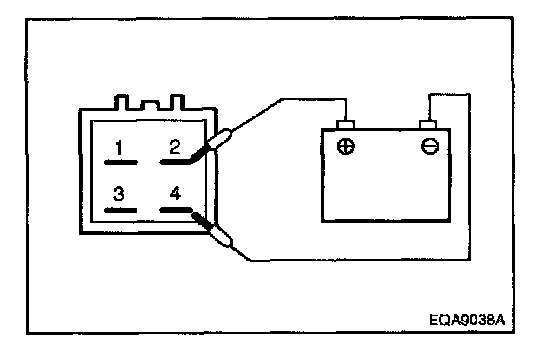

3. Check that the fan motor runs when the battery voltage is applied.
