Heater Core Case: Locations
M09 Joint Connector:
C93-1, C93-2, C93-3 TCM, C94-1, C94-2, C94-3, C94-4, C94-5 ECM:
C108 A/T Control Relay, C109 Joint Connector:

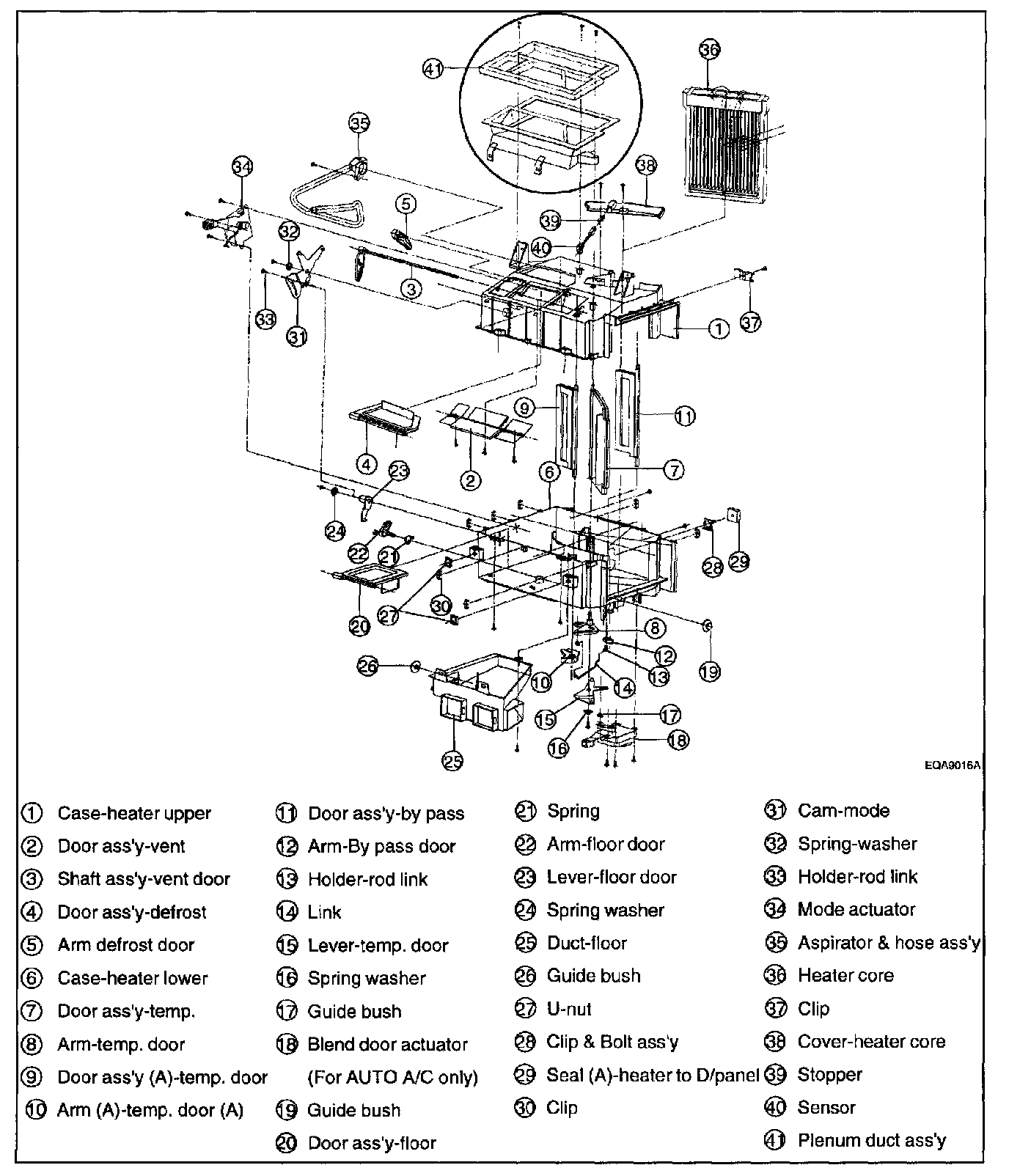

Heater, Blower And Evaporator:
