Component Locations

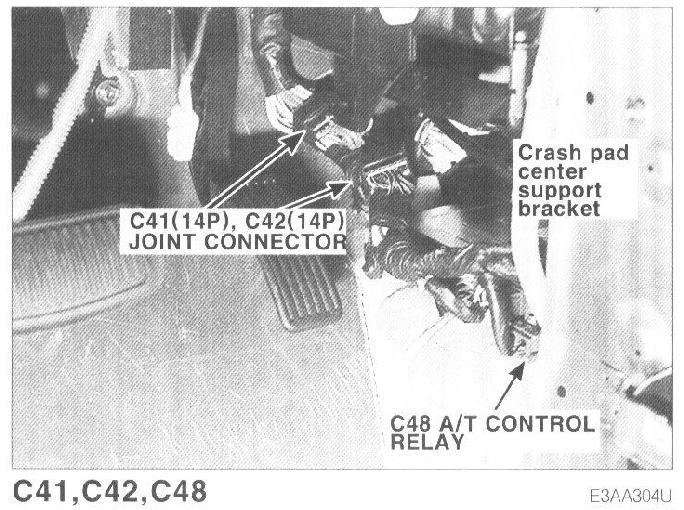

C41, C42 Joint Connectors, C48 A/T Control Relay:
C108 A/T Control Relay, C109 Joint Connector:

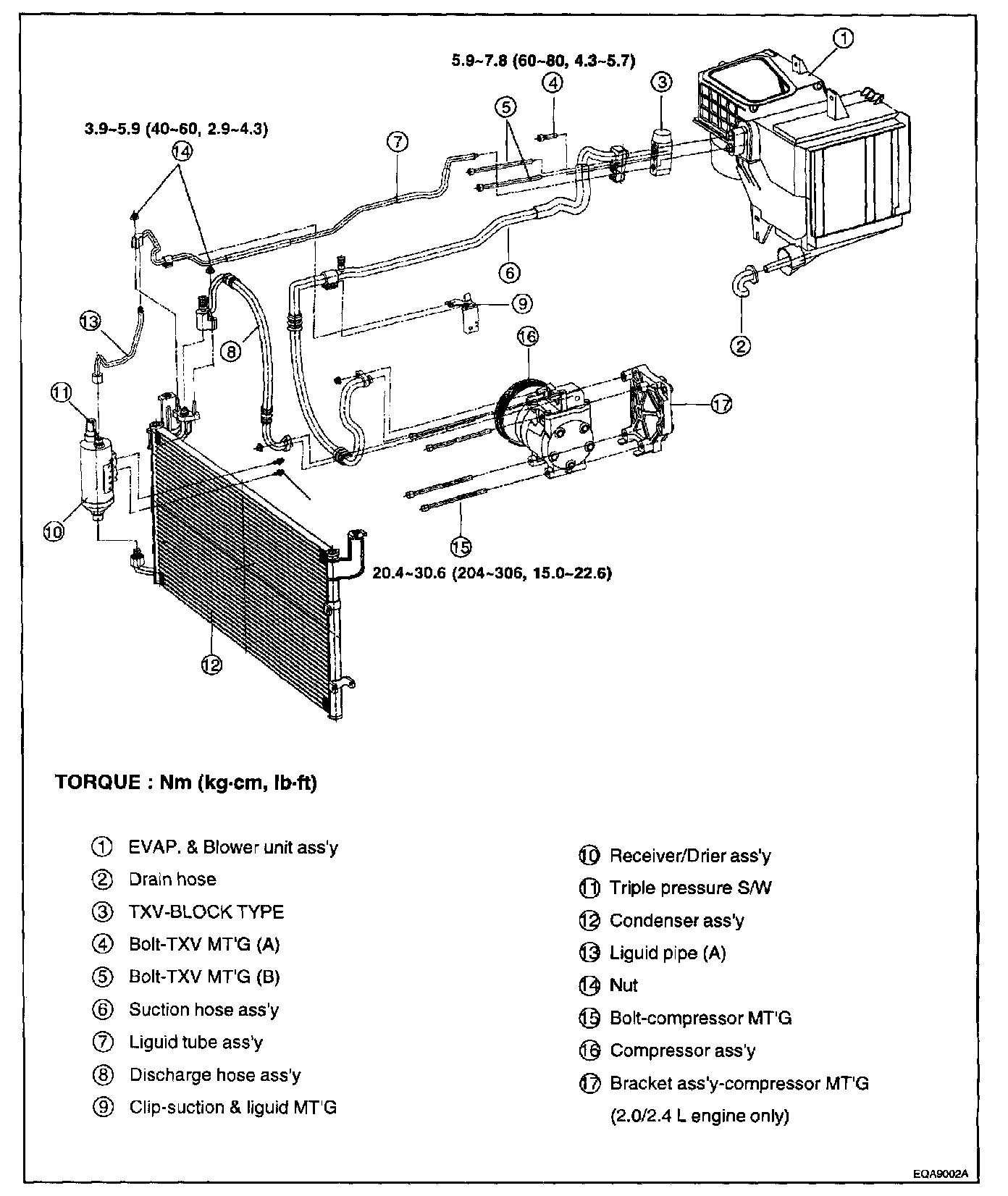

A/C System Layout And Component Locations:
