Ventilation Switch: Testing and Inspection
FRESH/RECIRCE BUTTON
1.

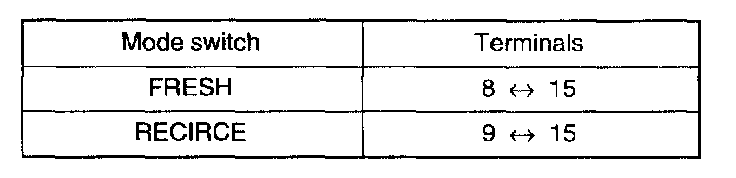

Check for continuity between terminals.
If continuity is not as specified, replace the control panel.
