Drive Belt: Service and Repair

Apply 100 N (22 lbs.) force to the belt back midway between the pulleys as shown in the illustration, measure the amount of deflection Measure tension with a tension gauge.

Standard Value

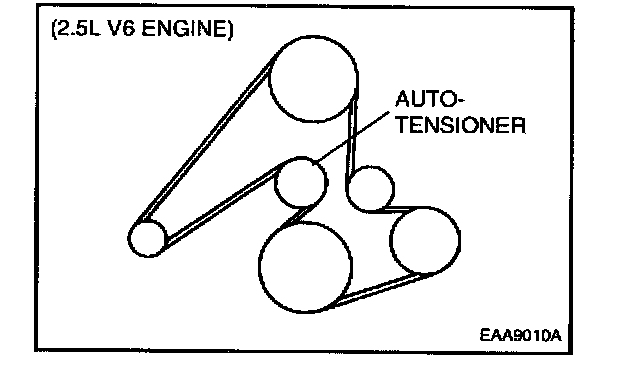

The belt tension for 2.5 liter V6 engine is automatically adjusted by the auto-tensioner.
