Fluid Filter - A/T: Service and Repair

OIL FILTER REPLACEMENT

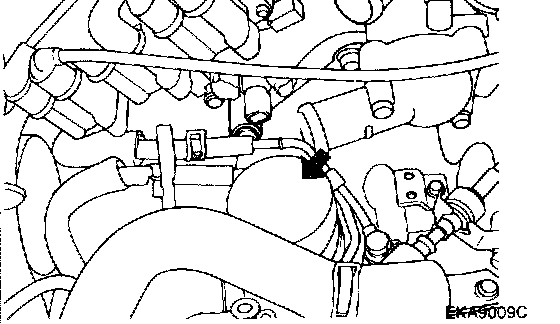

1. Remove the automatic transmission oil filter by filter wrench (chain, etc.) if available, after removing air cleaner assembly.
2. After removing, clean away automatic transaxle fluid, mud etc adhered around the transaxle by cloth gloves or rags.
3. Clean the filter bracket side mounting surface.

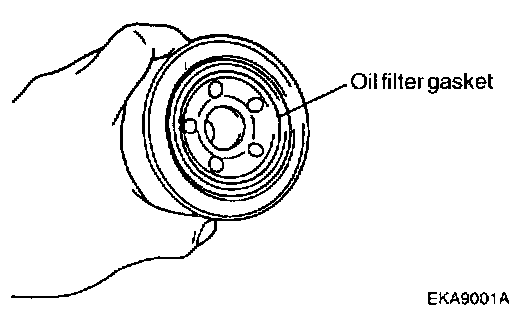

4. Apply a small amount of automatic transmission fluid to the O-ring of the new oil filter.
5. Install the automatic transmission oil filter.

NOTE: Tightening torque: 11 - 13 Nm

6. Check the quantity of the automatic transmission fluid.
