Mechanical Specifications
>>
Engine
>>
Camshaft Bearing
Camshaft Bearing

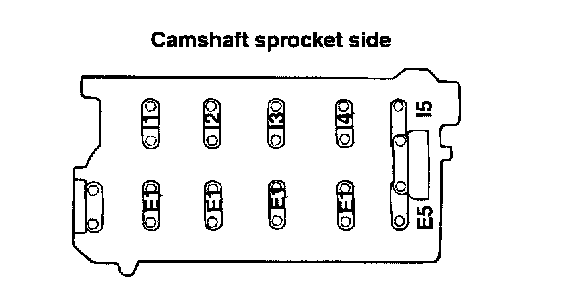

Bearing Cap Bolt Tightening Sequence
Bearing Cap Bolts
Torque
12 - 14 Nm (120 - 140 kg.cm, 9 - 10 ft. lbs.)
