Accent L L4-1495cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

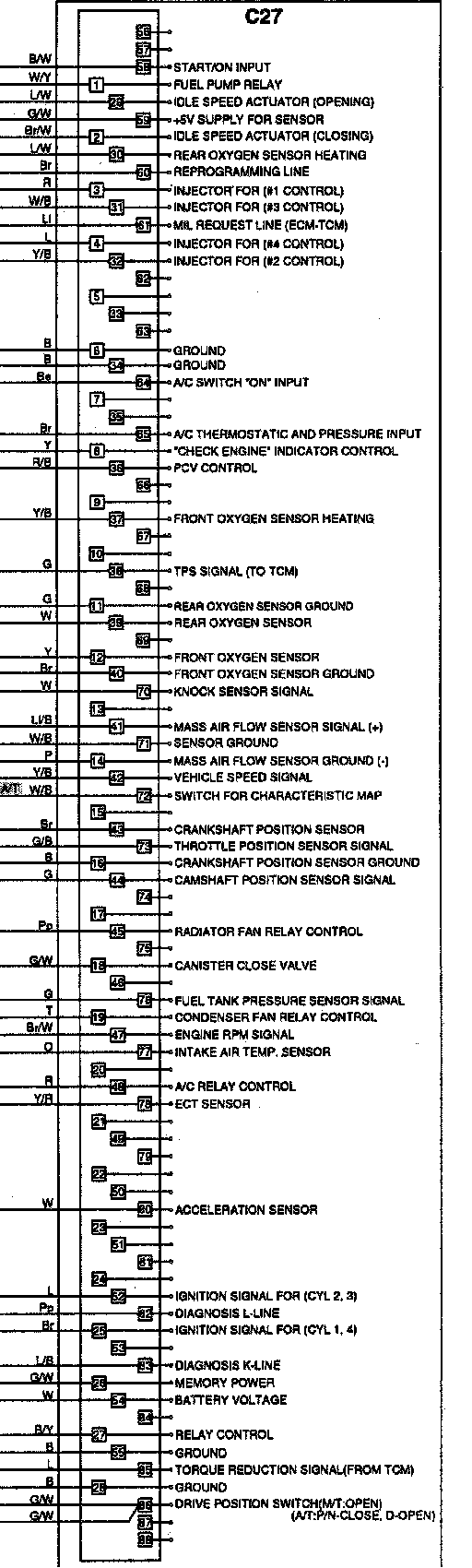

ECM/Harness Pin Number Configuration:
