Trim Panel: Service and Repair

REMOVAL

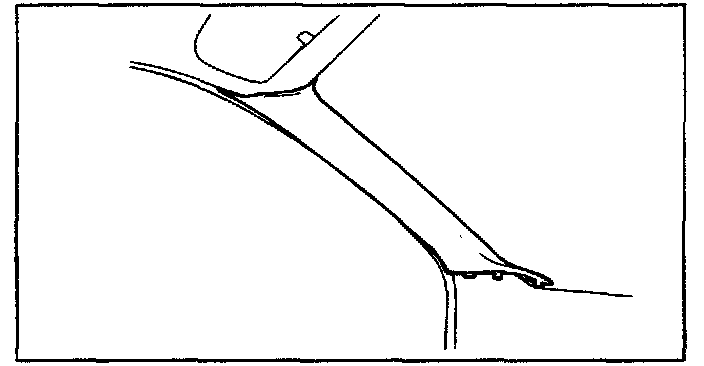

FRONT PILLAR TRIM
Pry loose the front pillar trim with a screwdriver.

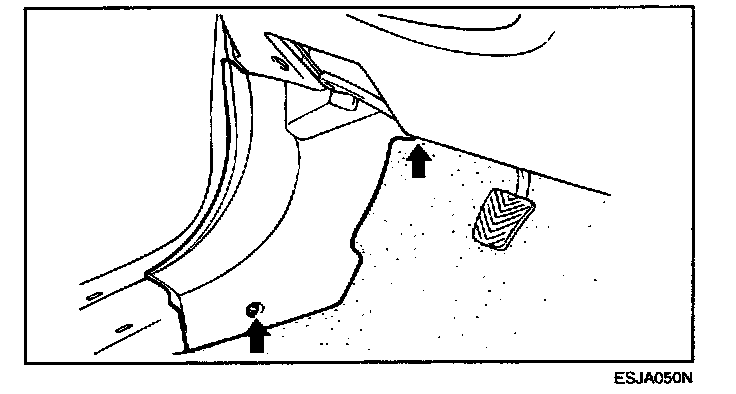

COWL SIDE TRIM
Remove the screws holding the cowl side trim and remove it.




FRONT DOOR SCUFF TRIM

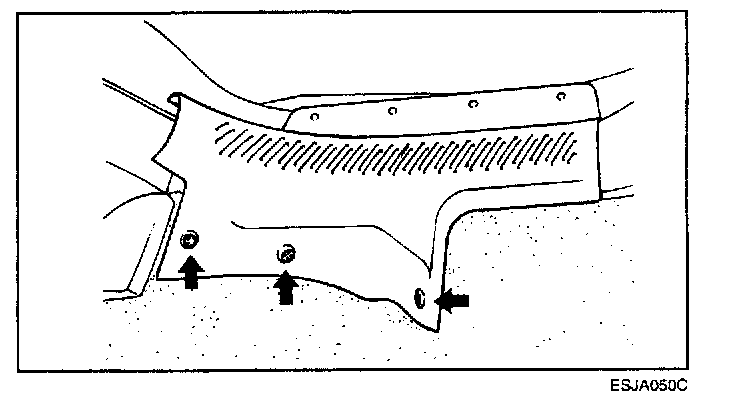

1. Remove the screws holding the front door scuff trim.
2. Remove the front door scuff trim.




REAR DOOR SCUFF TRIM

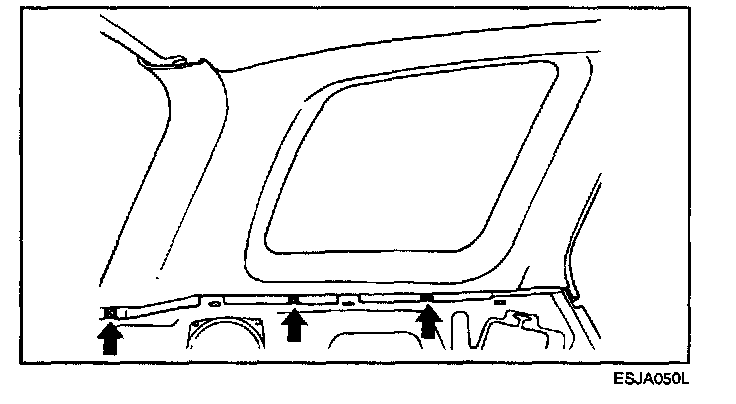

1. Remove the screws holding the rear door scuff trim.
2. Remove the rear door scuff trim.

CENTER PILLAR TRIM

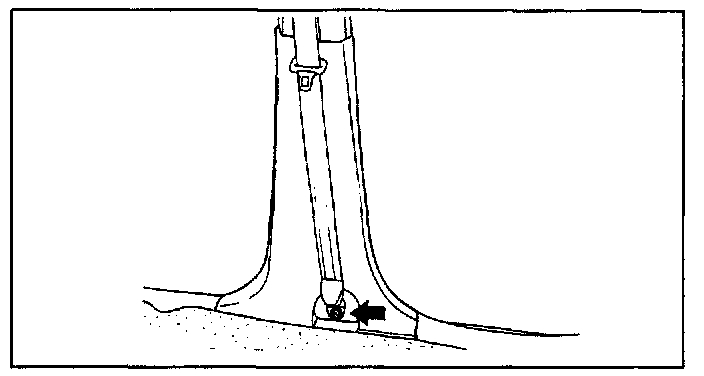

1. Remove the bolt holding the seat belt lower anchor and pry loose the center pillar lower trim.

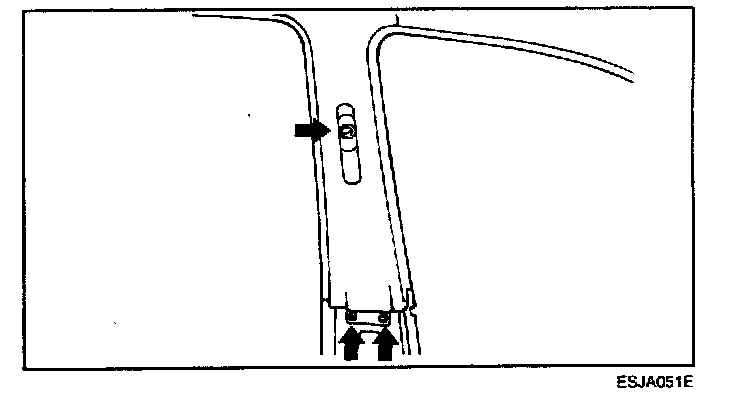

2. Remove the bolt holding the seat belt upper anchor and 2 screws holding the center pillar upper trim.

REAR TRANSVERSE TRIM

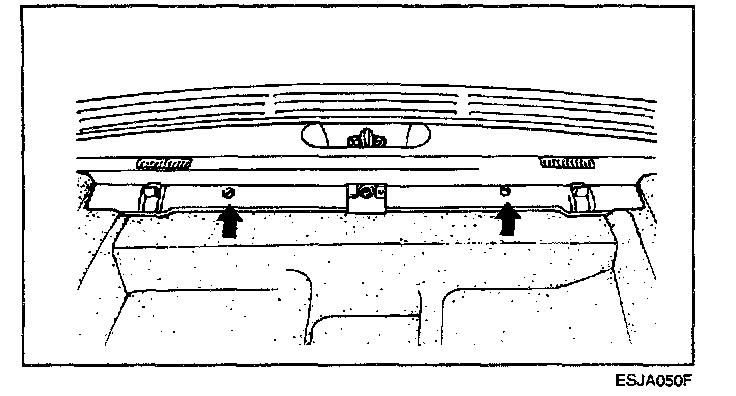

1. Remove the screws holding the rear transverse trim and remove the trim.

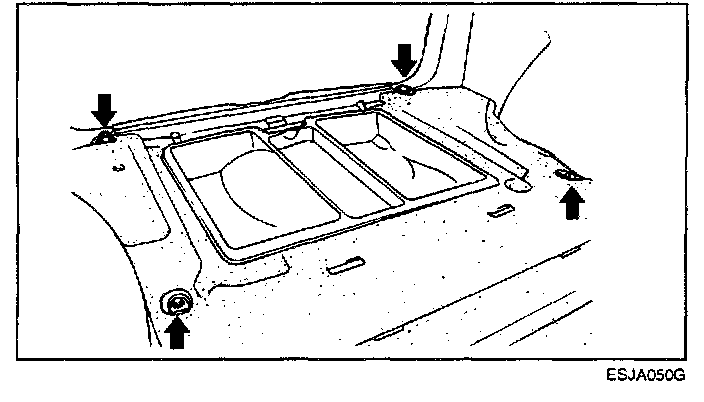

2. Remove the bolts holding the luggage floor under tray assembly.

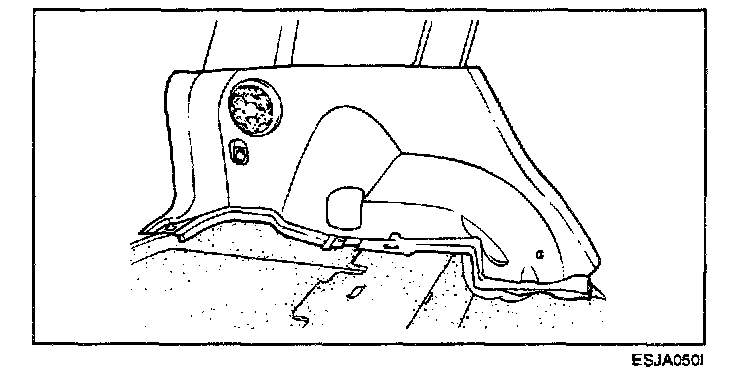

QUARTER TRIM

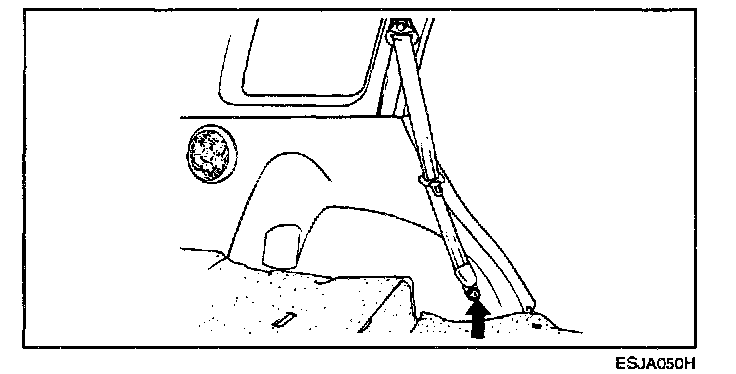

Remove the bolt holding the rear seat belt lower anchor and pry loose the quarter trim.




HEADLINING REAR COVER
Pry loose the headlining rear cover with a screwdriver.

REAR PILLAR TRIM

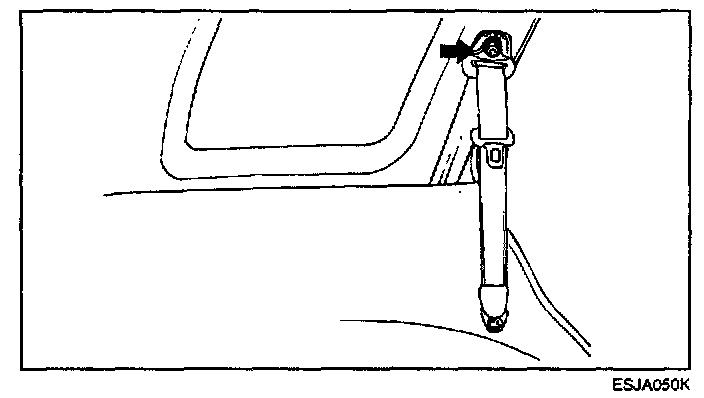

1. Remove the bolt holding the rear seat belt upper anchor.




2. Remove the 3 screws holding the rear pillar trim and pry loose the trim.

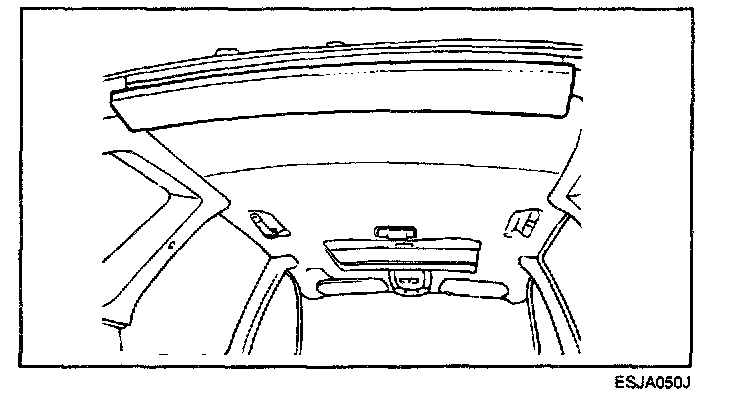

HEADLINING

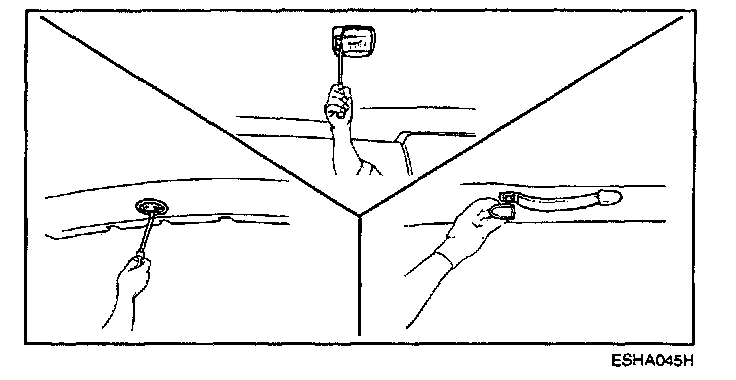

1. To remove the headlining, first remove the following parts:

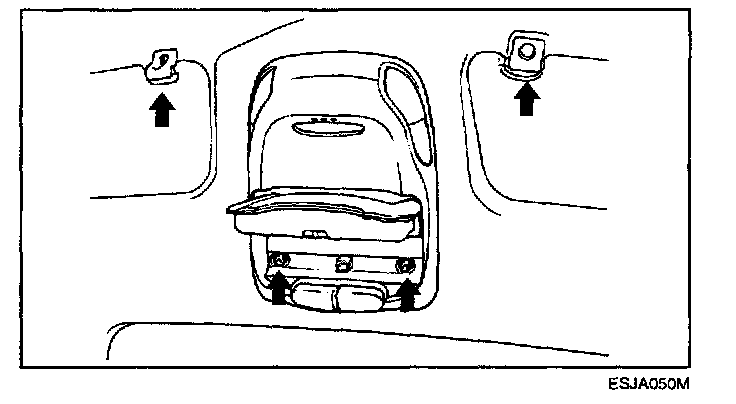

- Overhead console and sunvisor.




- Room lamp, luggage lamp and assist grip.

2. Pry the headliner loose and carefully remove it.
3. Installation is the reverse of removal.
