Front Seat

REMOVAL AND INSTALLATION

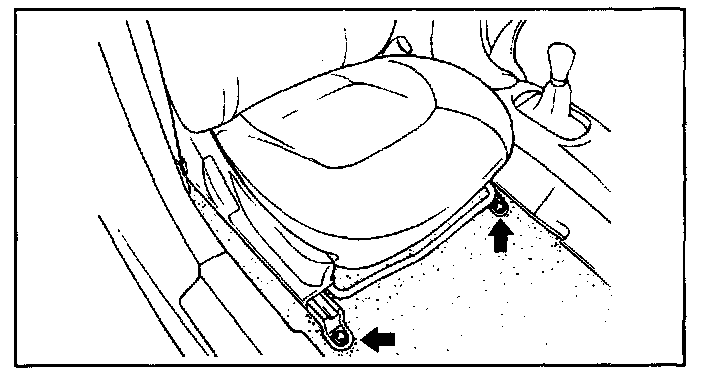

1. Remove the bolts holding the front seat and then remove the front seat assembly.

Tightening torque:
Front seat mounting bolts: 35 - 55 Nm (350 - 550 kg.cm, 25.4 - 40 lb.ft)

2. Installation is the reverse of removal.
