Cruise Control Switch: Testing and Inspection

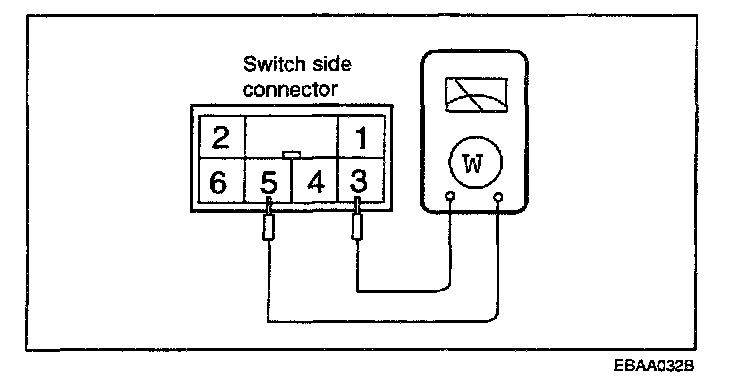

CRUISE CONTROL MAIN SWITCH
1. Operate the switch, and check for the continuity between the terminals.







2. If continuity is not as specified, replace the switch.
