Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2001
>>
Santa Fe L4-2.4L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

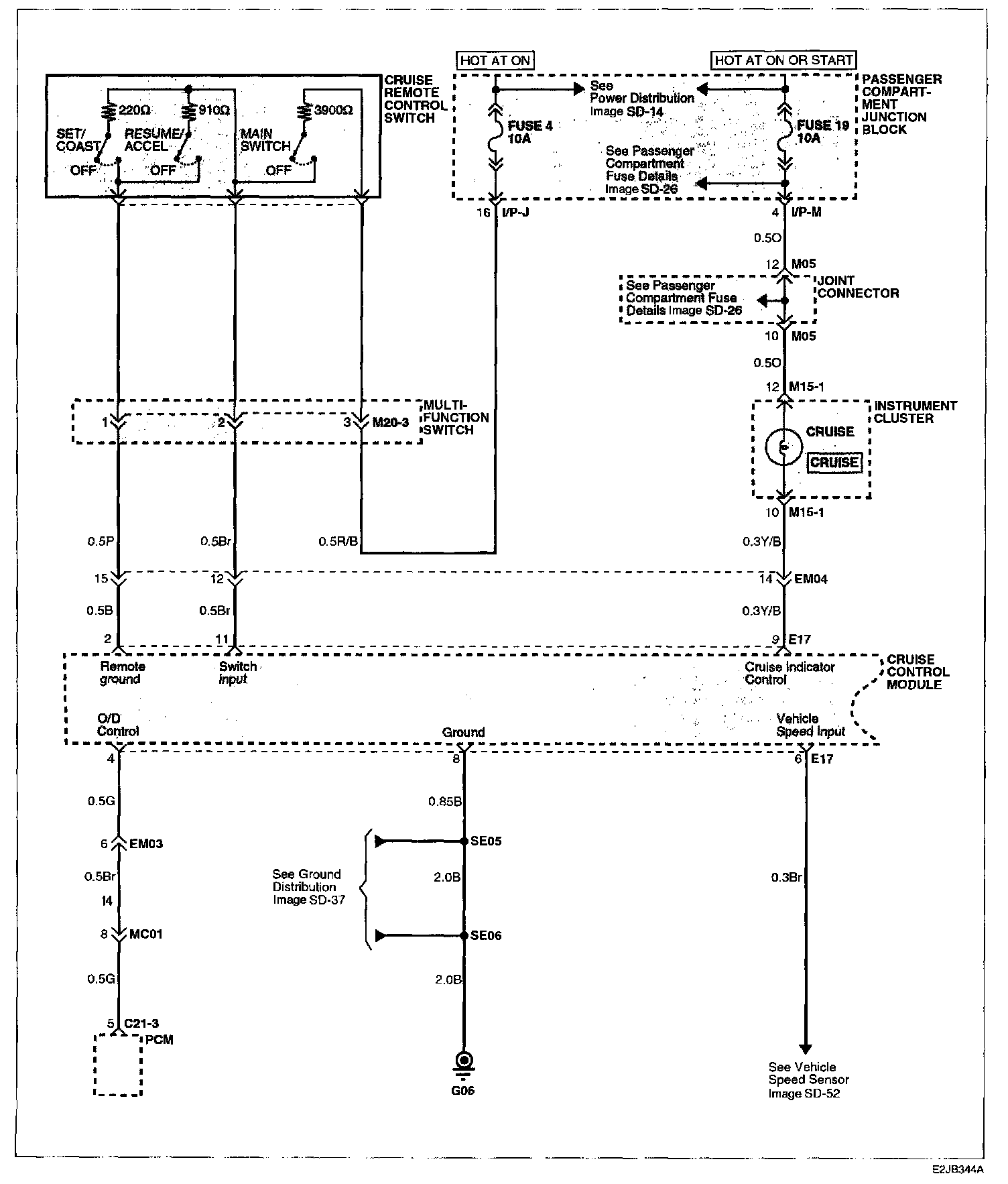

Image SD-184 - Cruise Control System (1):

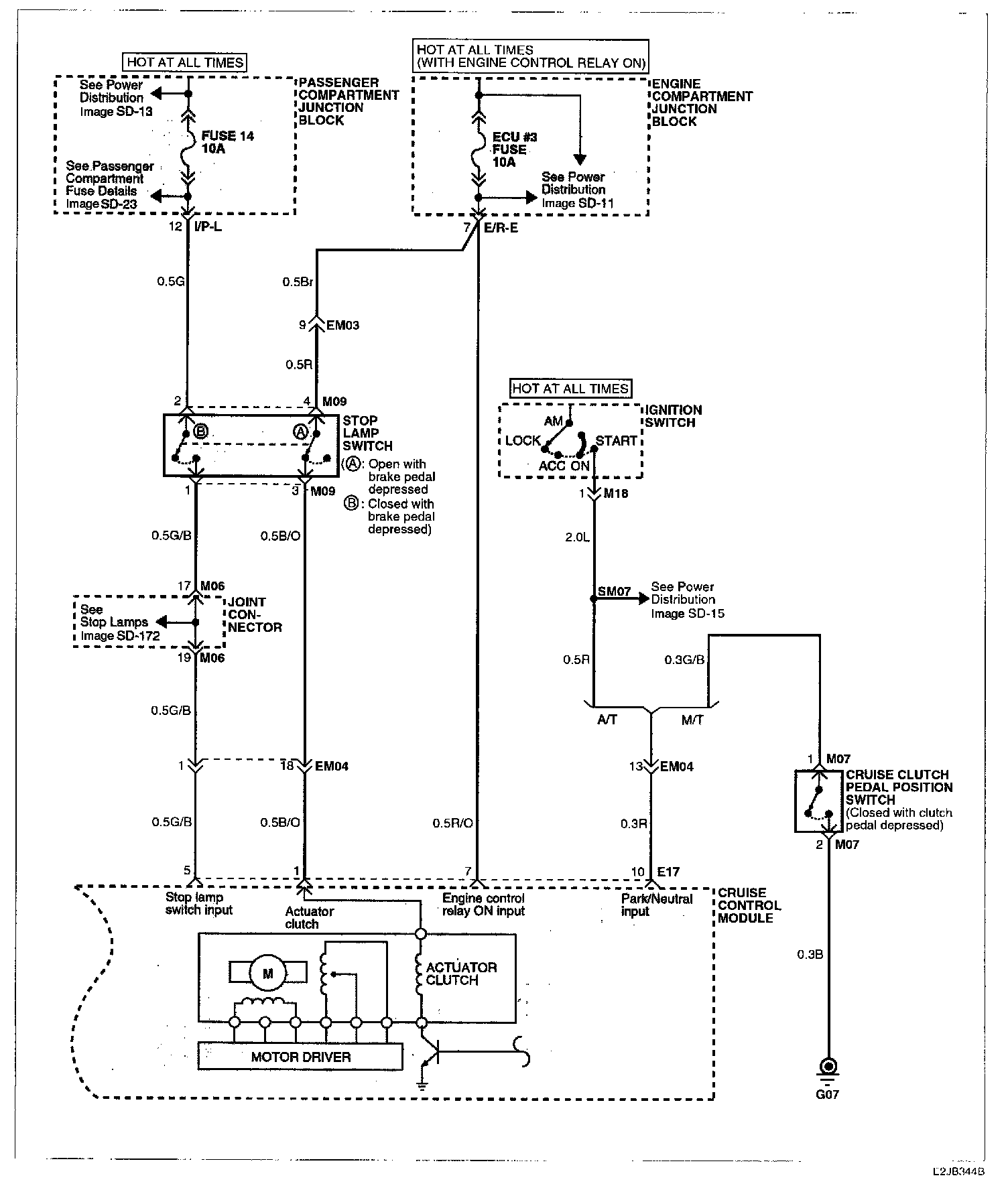

Image SD-185 - Cruise Control System (2):
