Automatic Transmission/Transaxle

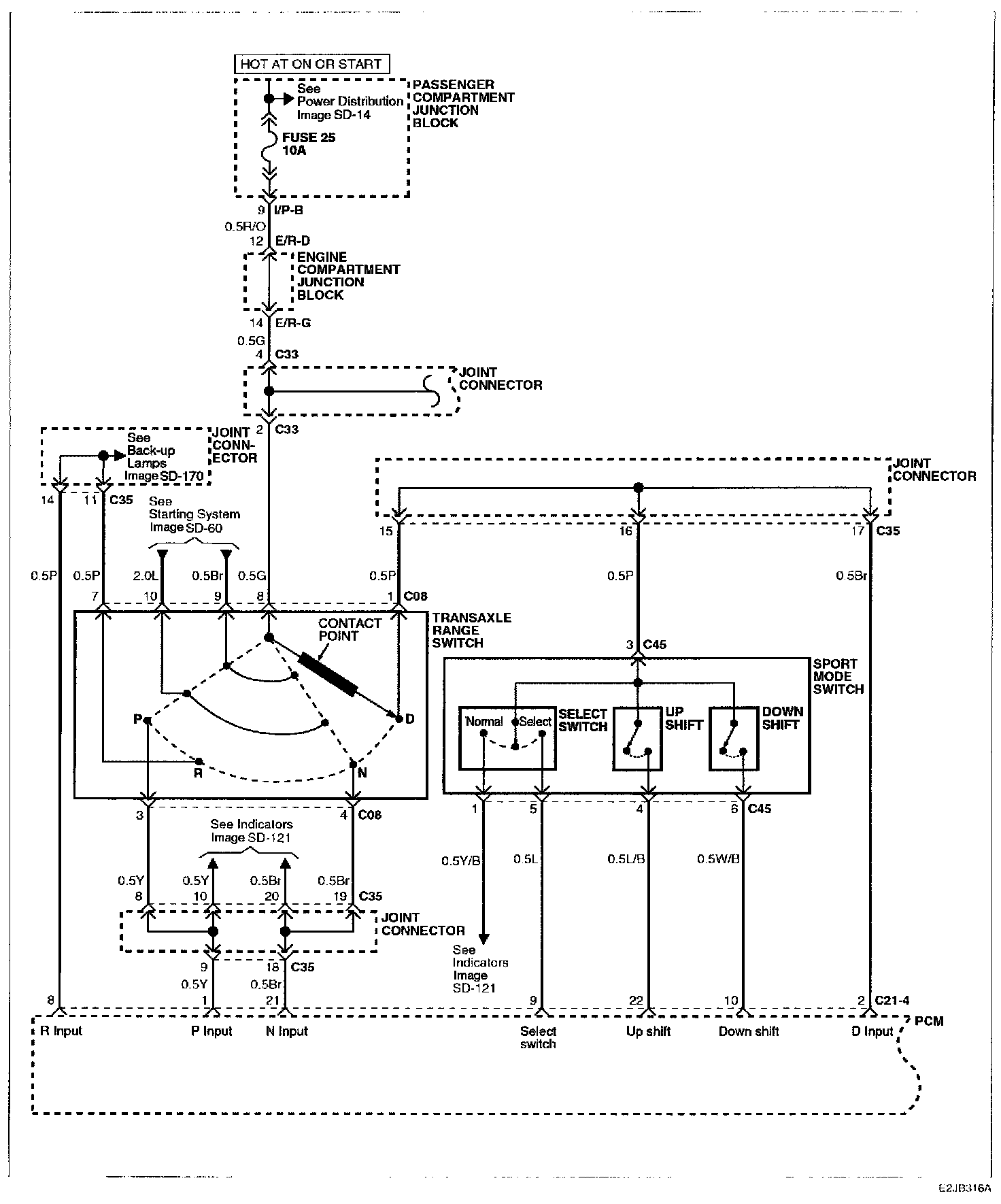

Image SD-96 - Automatic Transaxle Control System (L4) (1):

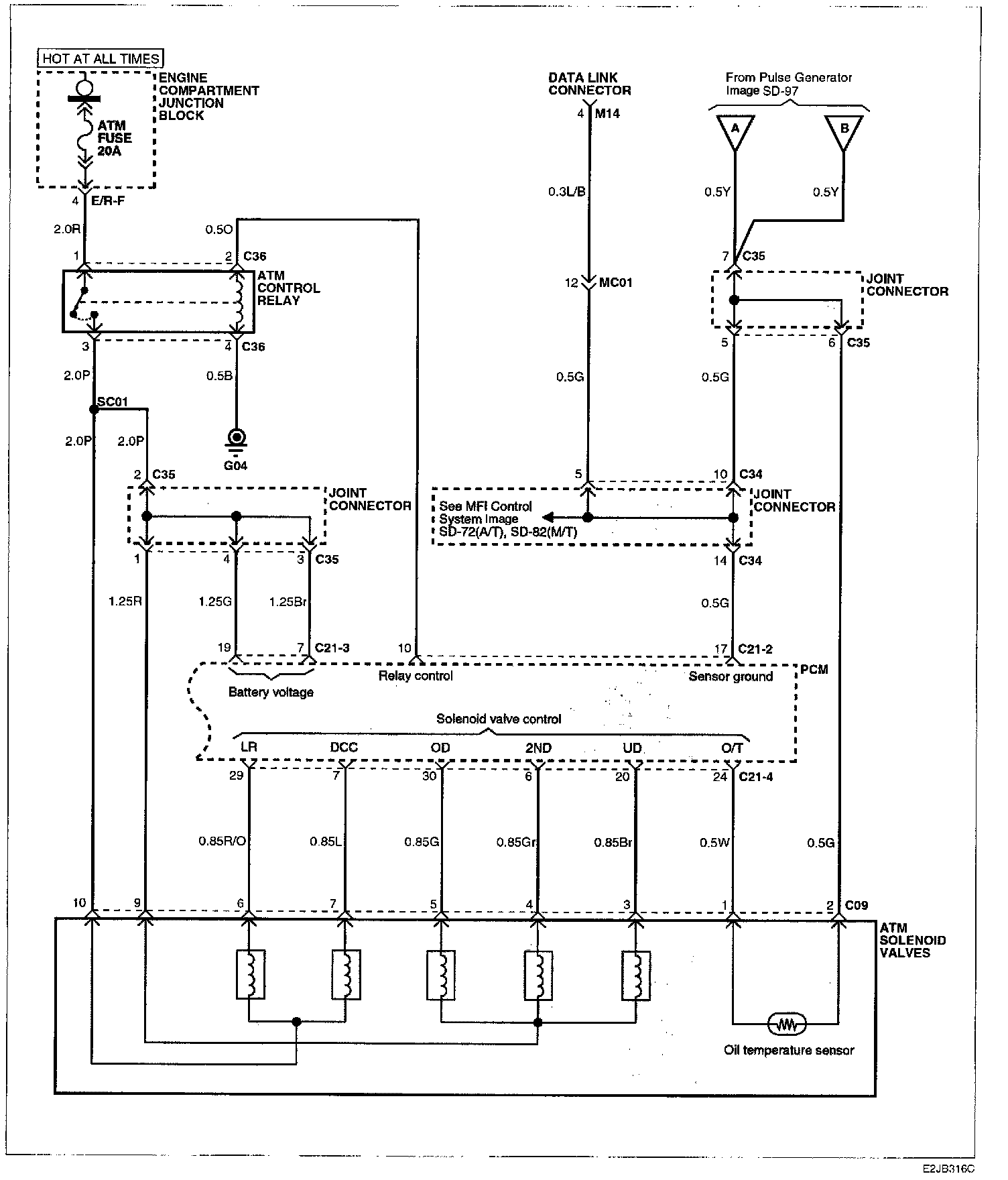

Image SD-97 - Automatic Transaxle Control System (L4) (2):



Image SD-98 - Automatic Transaxle Control System (L4) (3):
