Home >> Hyundai >> 2001 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp

Fog/Driving Lamp

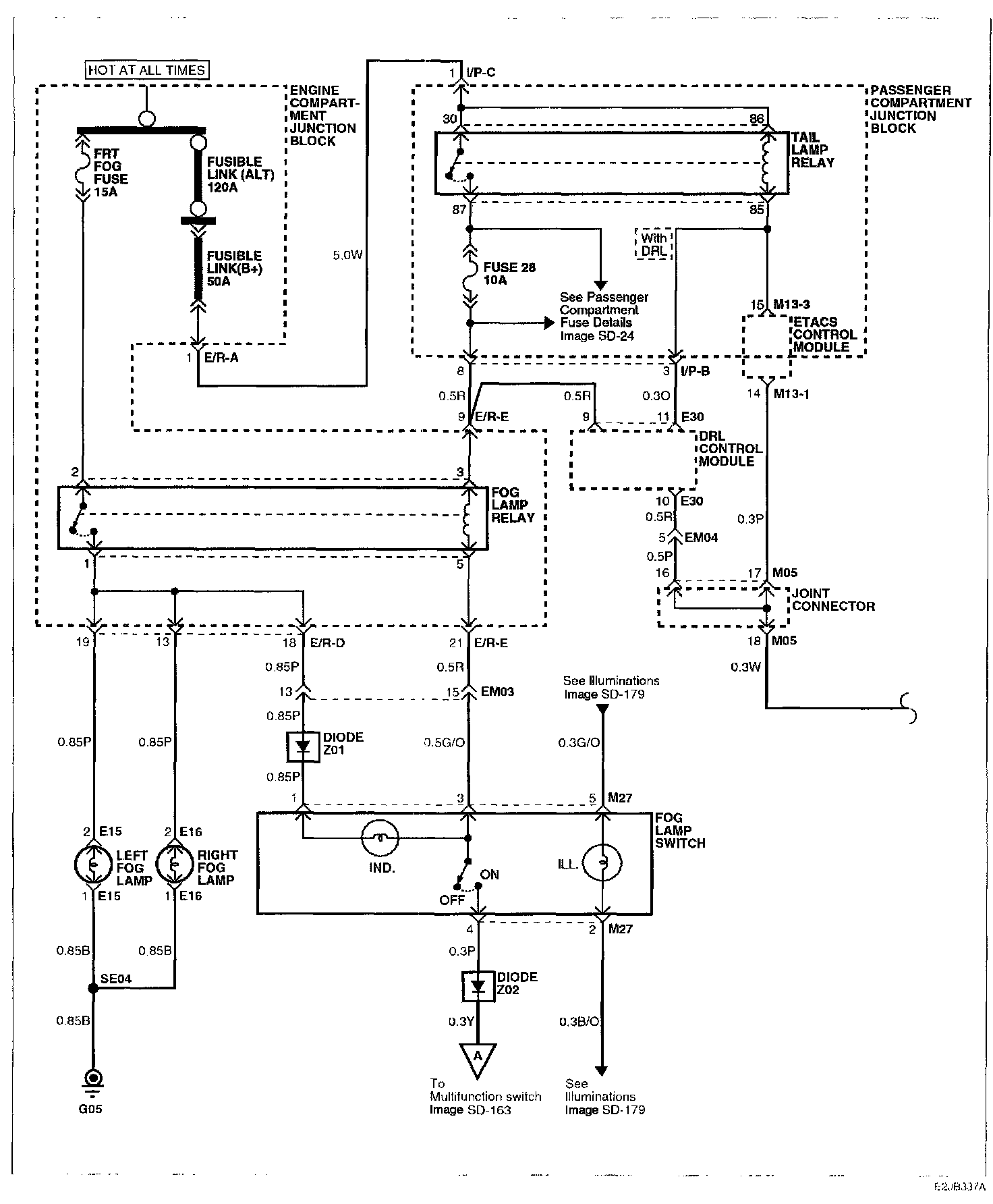

Image SD-162 - Fog Lamps (1):

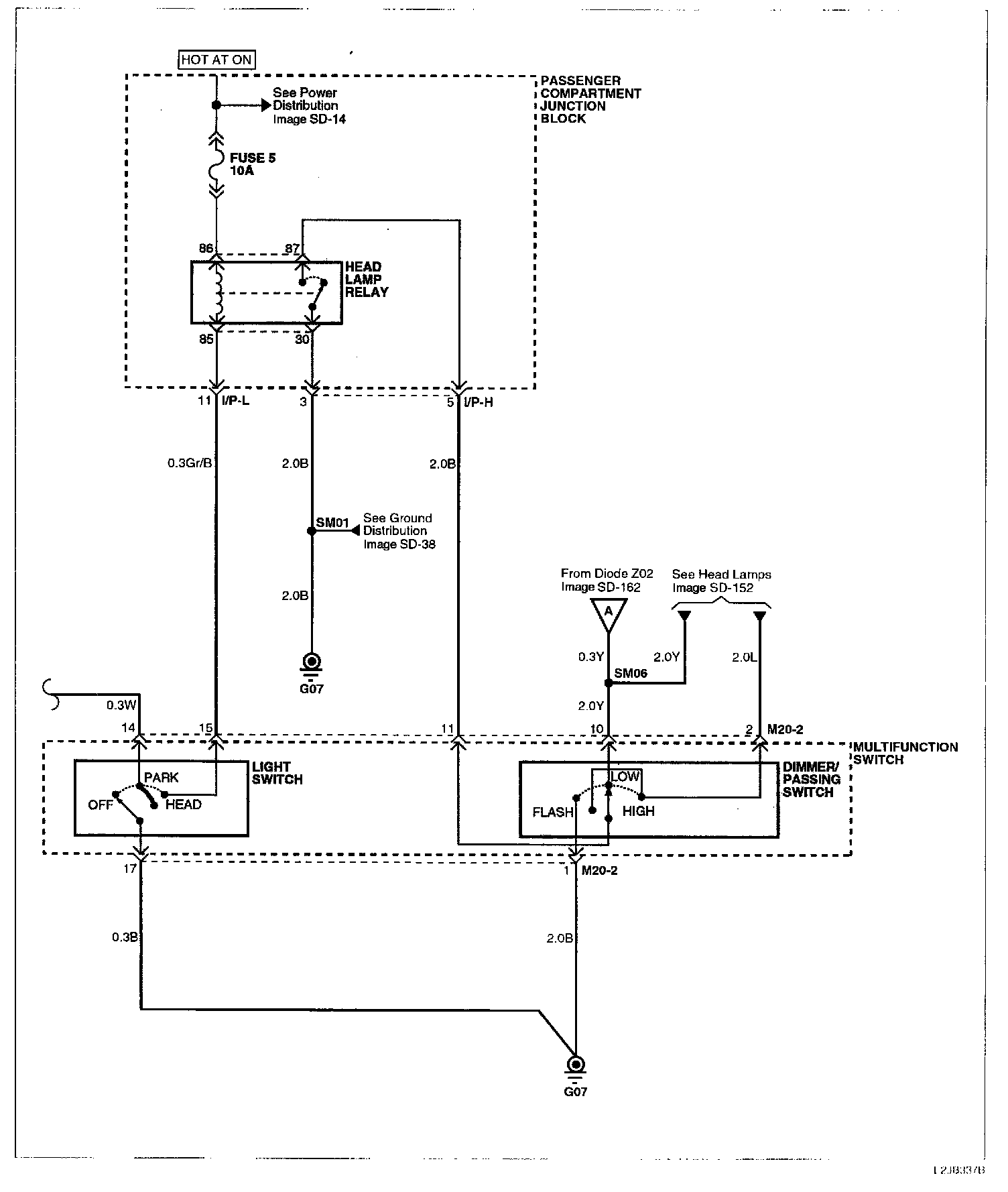

Image SD-163 - Fog Lamps (2):
