Heated Glass Element
Heated Glass Element

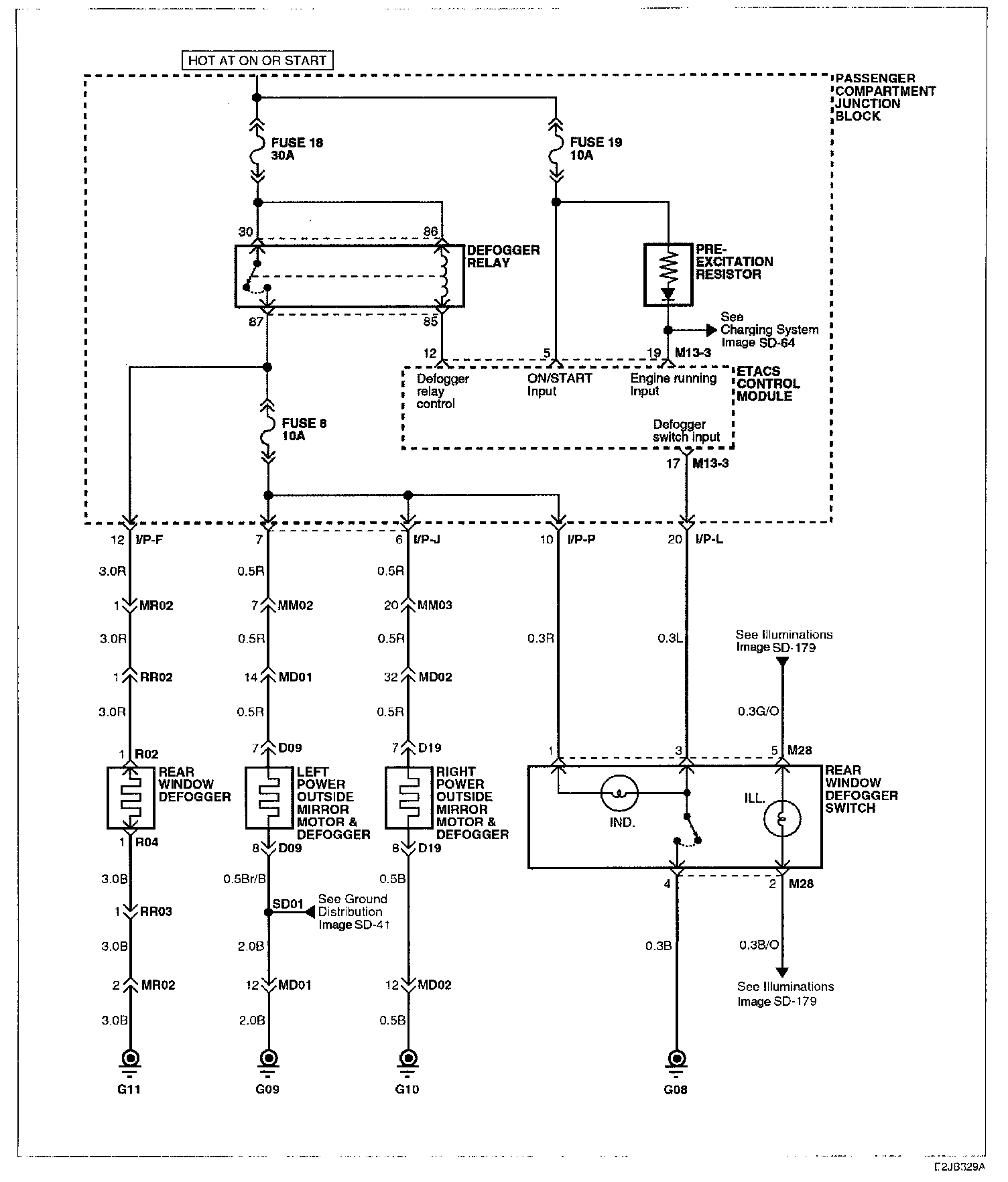

Image SD-136 - Rear Window & Outside Mirror Defogger System (1):
