Keyless Entry
Keyless Entry
Image SD-148 - Keyless Entry & Burglar Alarm System (1):

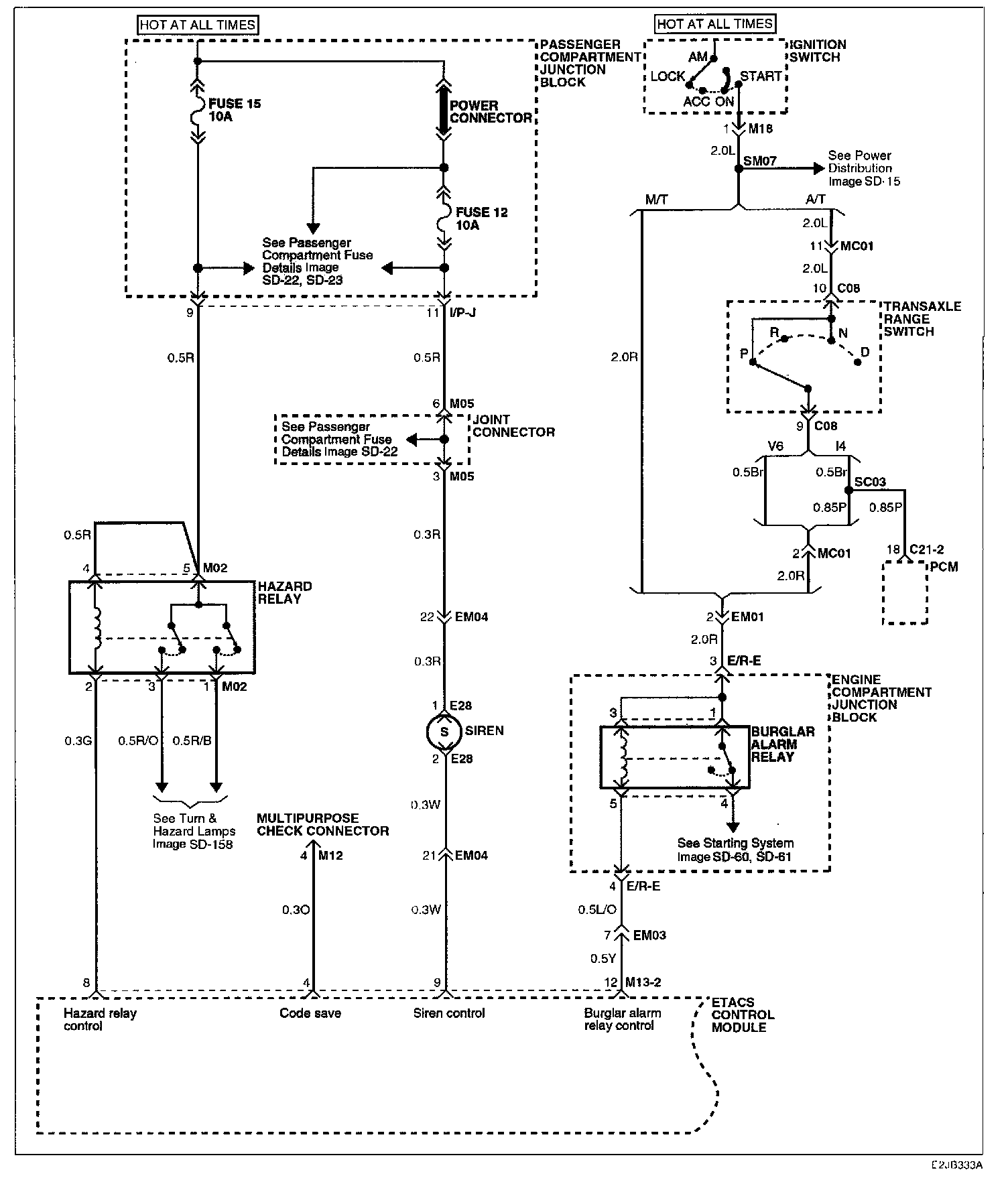

Image SD-149 - Keyless Entry & Burglar Alarm System (2):
