Power Locks

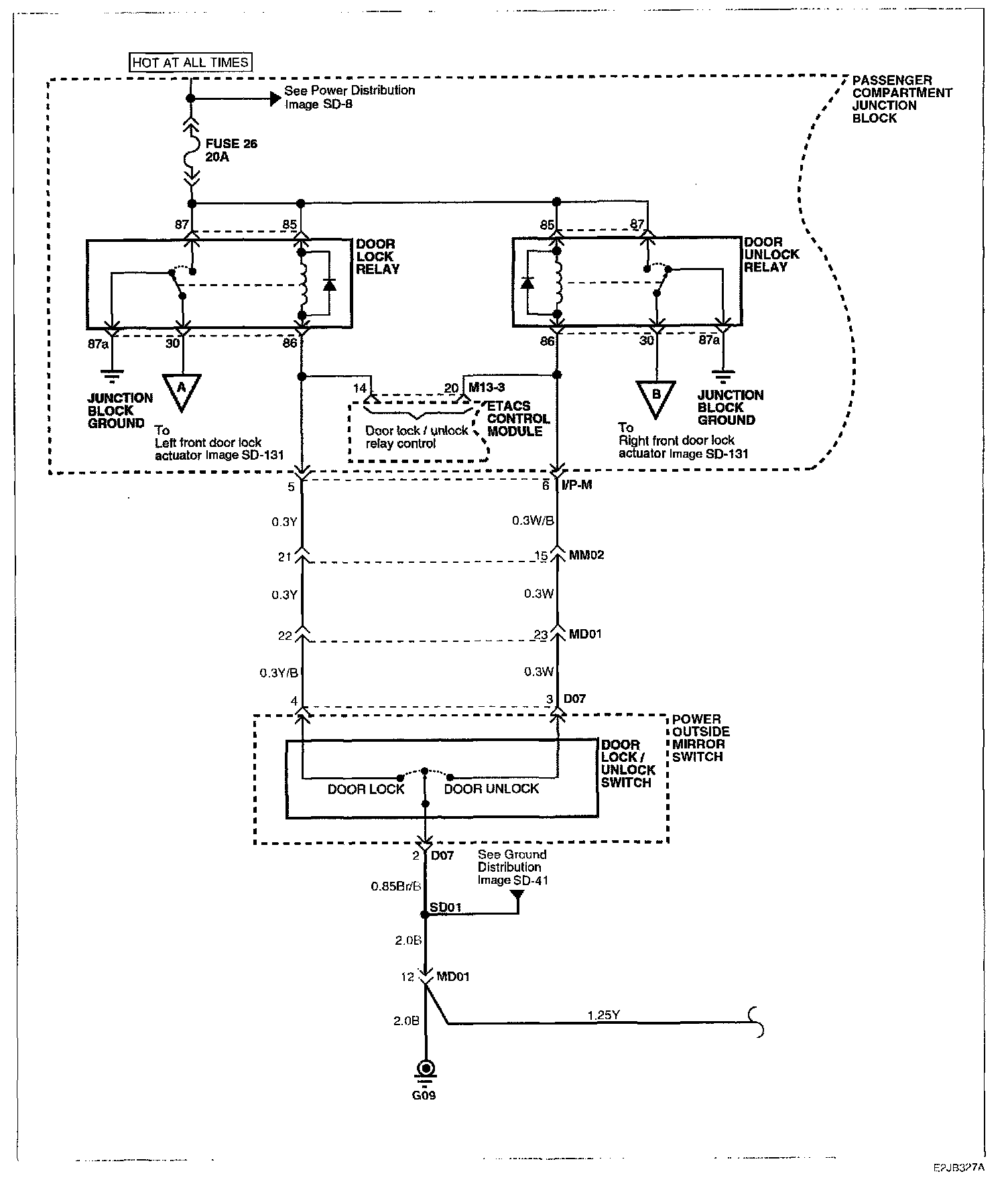

Image SD-130 - Power Door Locks (1):

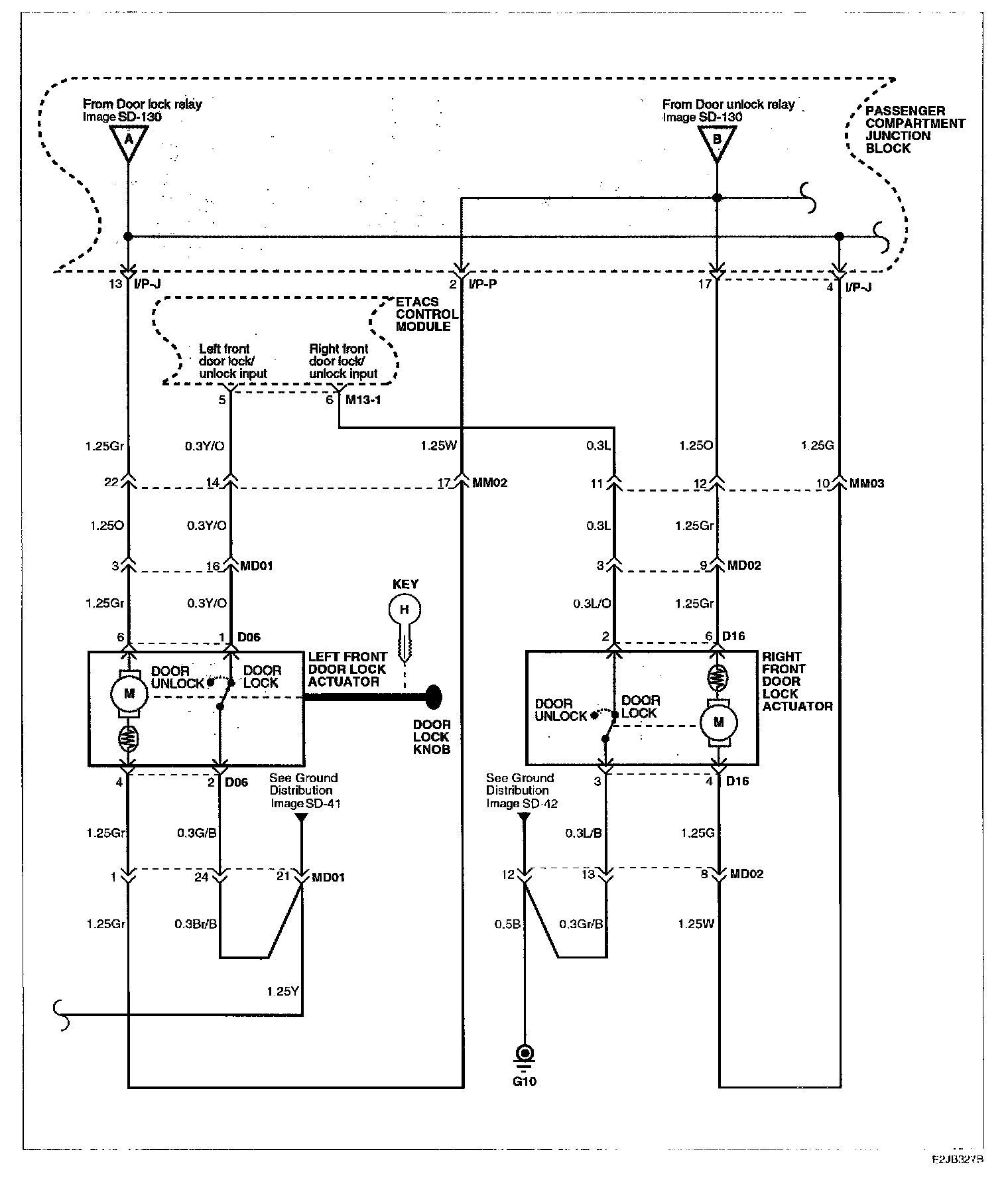

Image SD-131 - Power Door Locks (2):

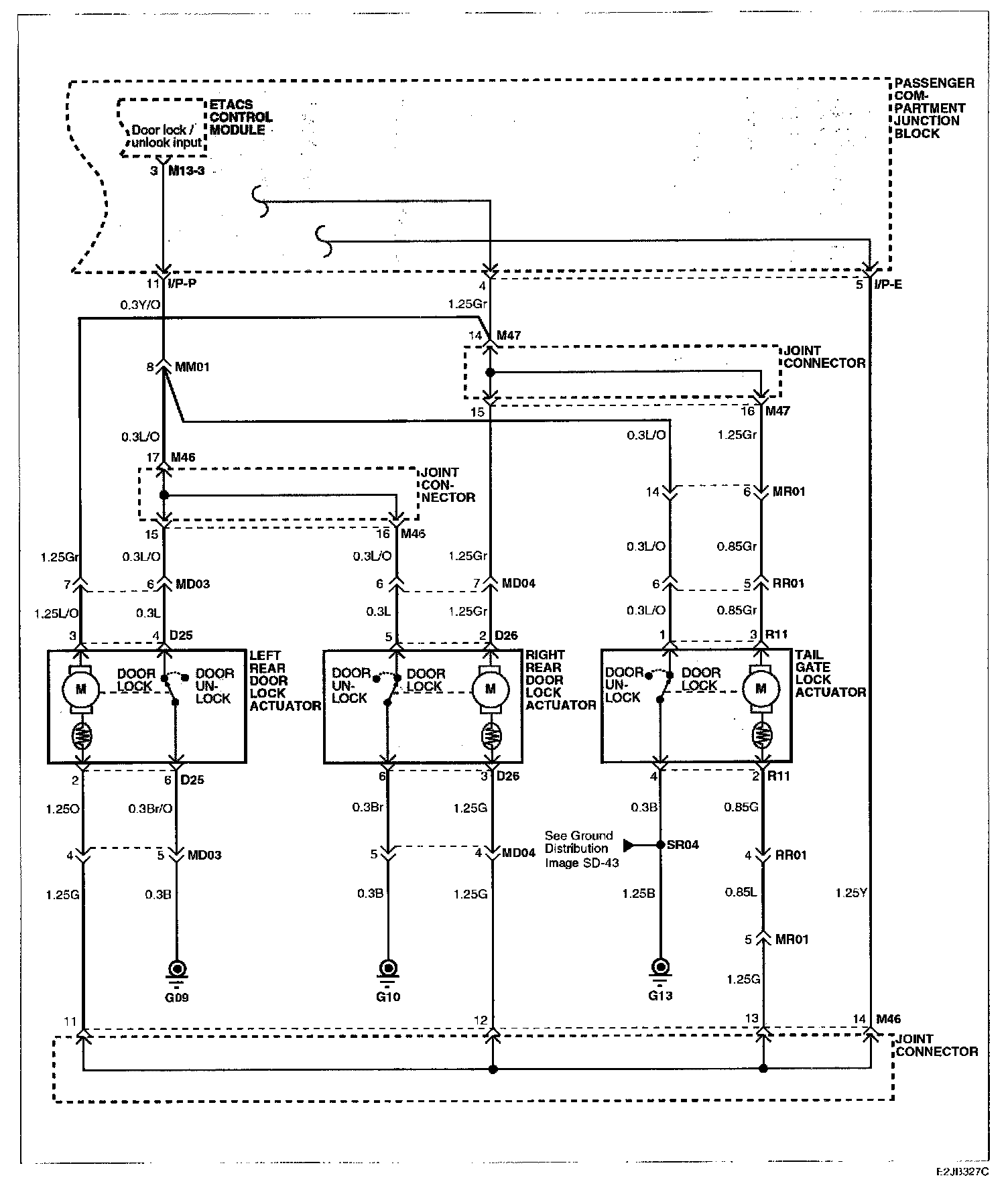

Image SD-132 - Power Door Locks (3):
