Timer/Control Unit, Accessory Control

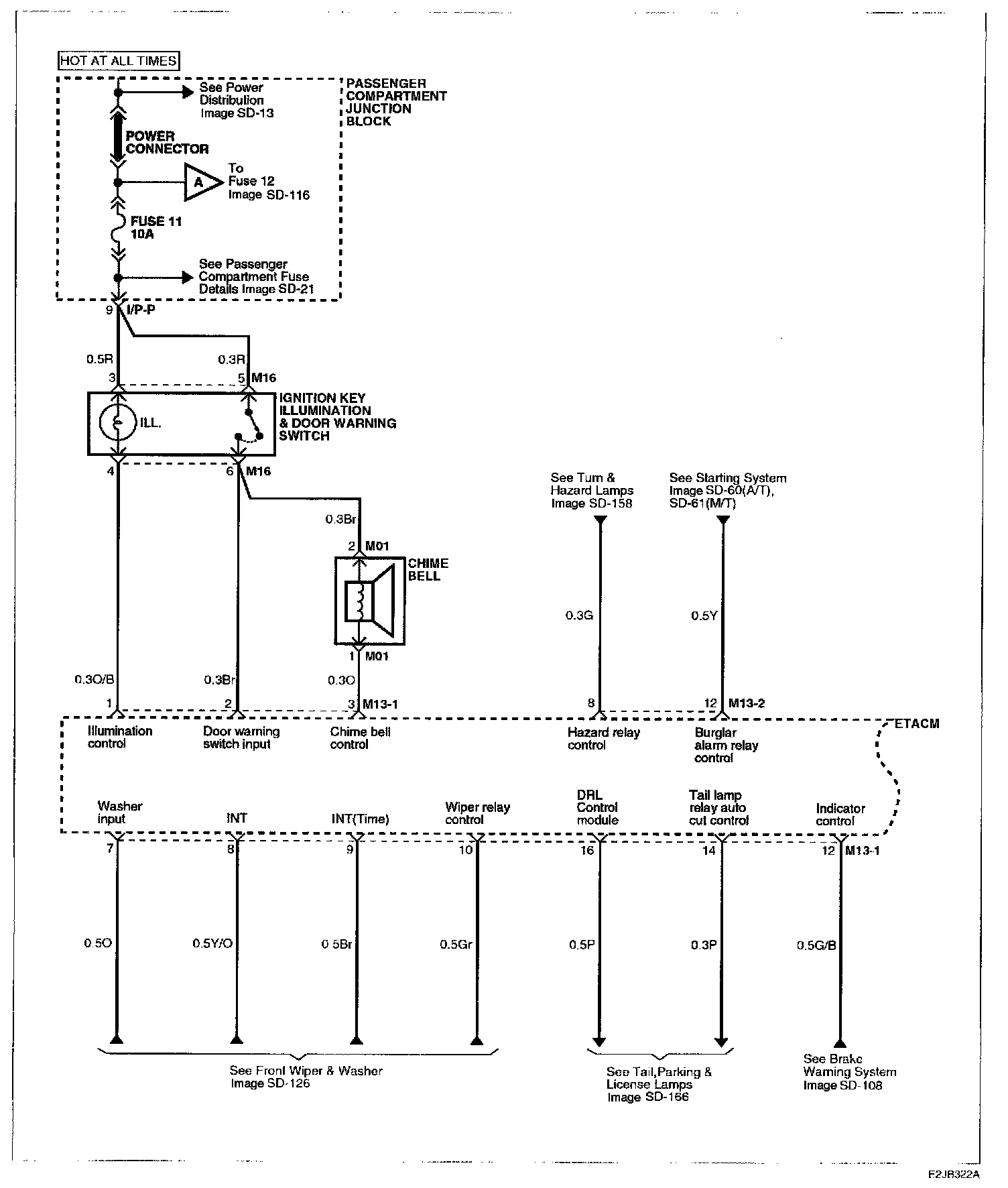

Image SD-114 - ETACS (Electronic Time & Alarm Control System) (1):

Image SD-115 - ETACS (Electronic Time & Alarm Control System) (2):

Image SD-116 - ETACS (Electronic Time & Alarm Control System) (3):

Circuit Diagram:
