Starting System
Starting System

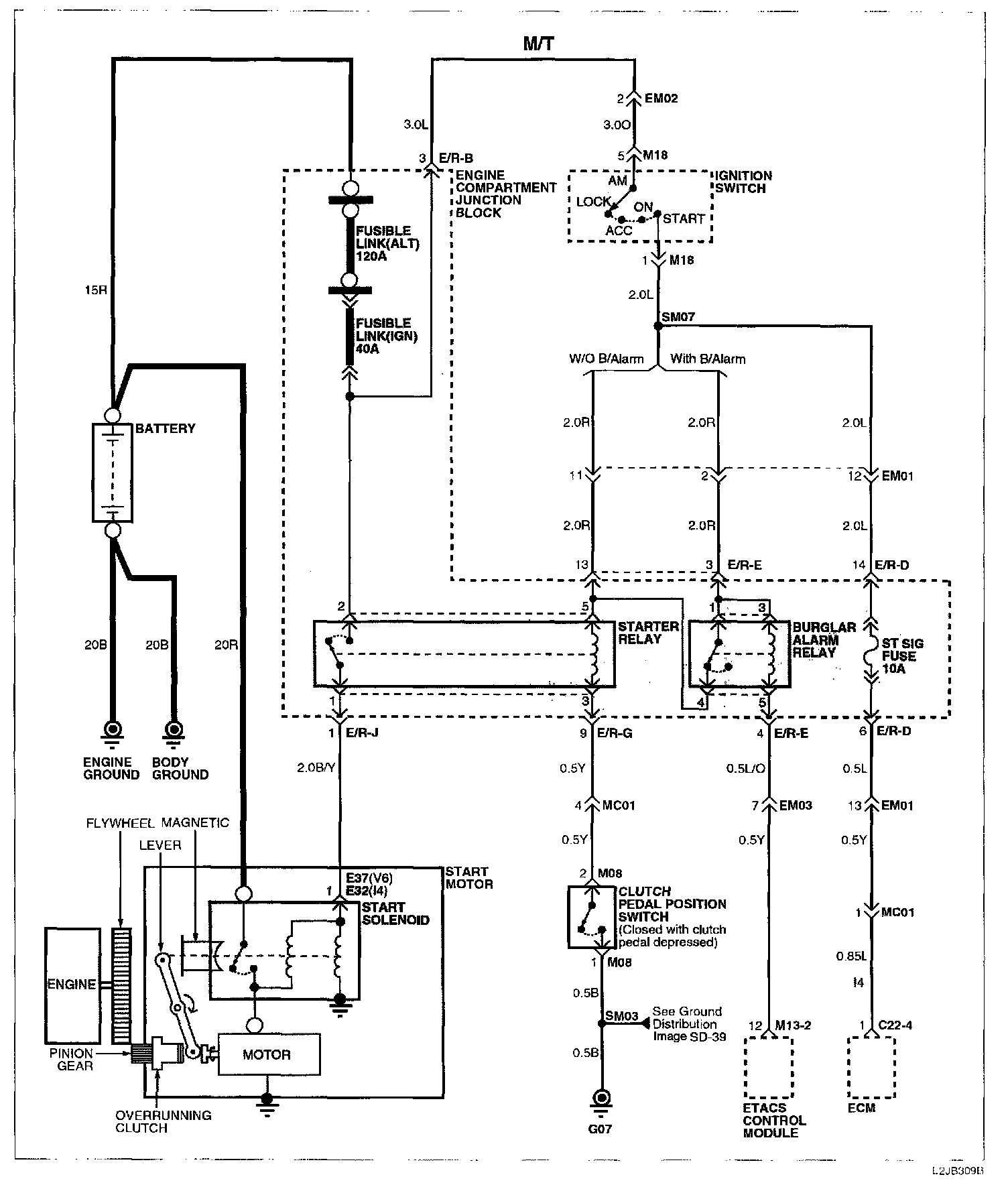

Image SD-60 - Starting System (1):

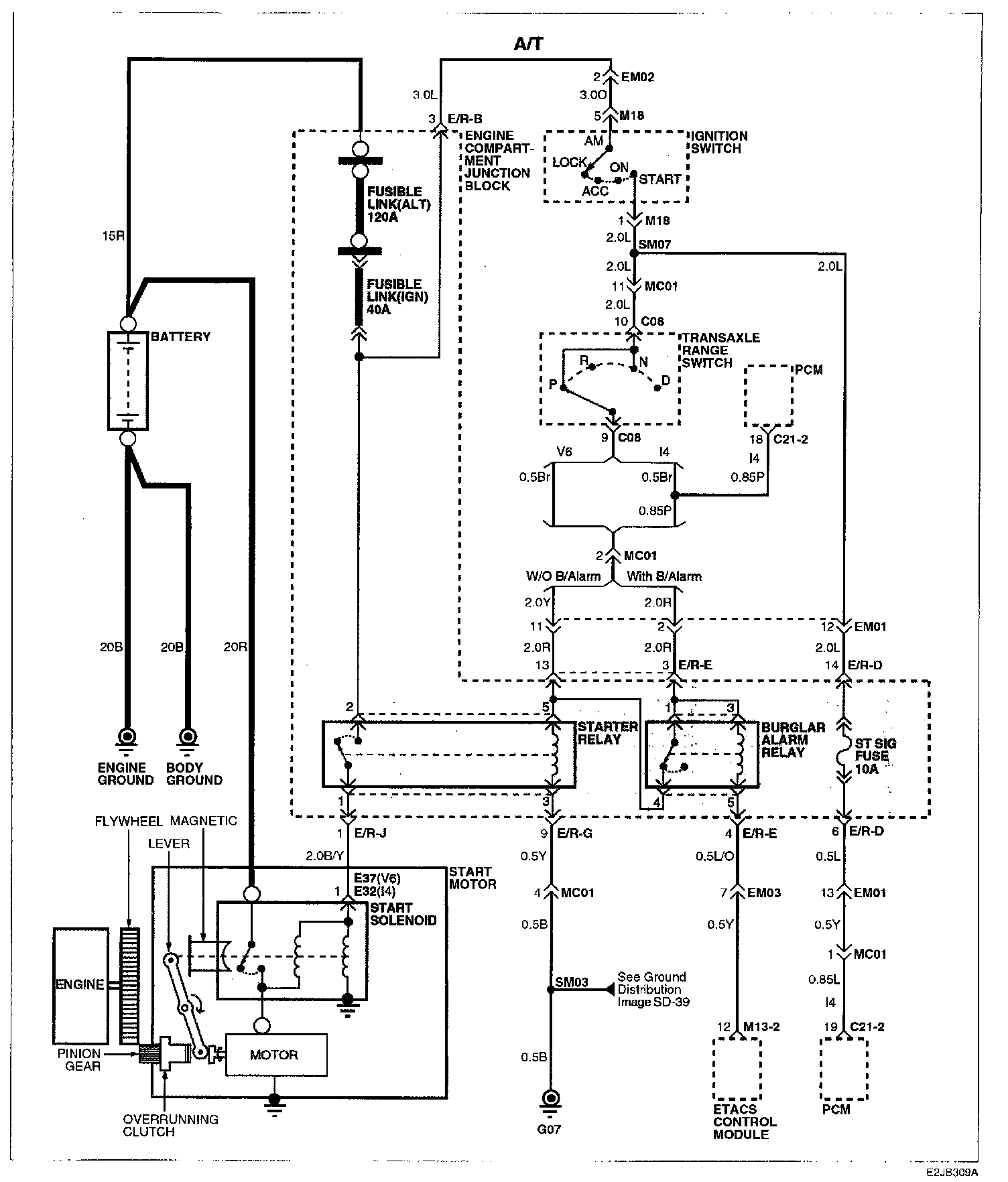

Image SD-61 - Starting System (2):
