Windows
Windows

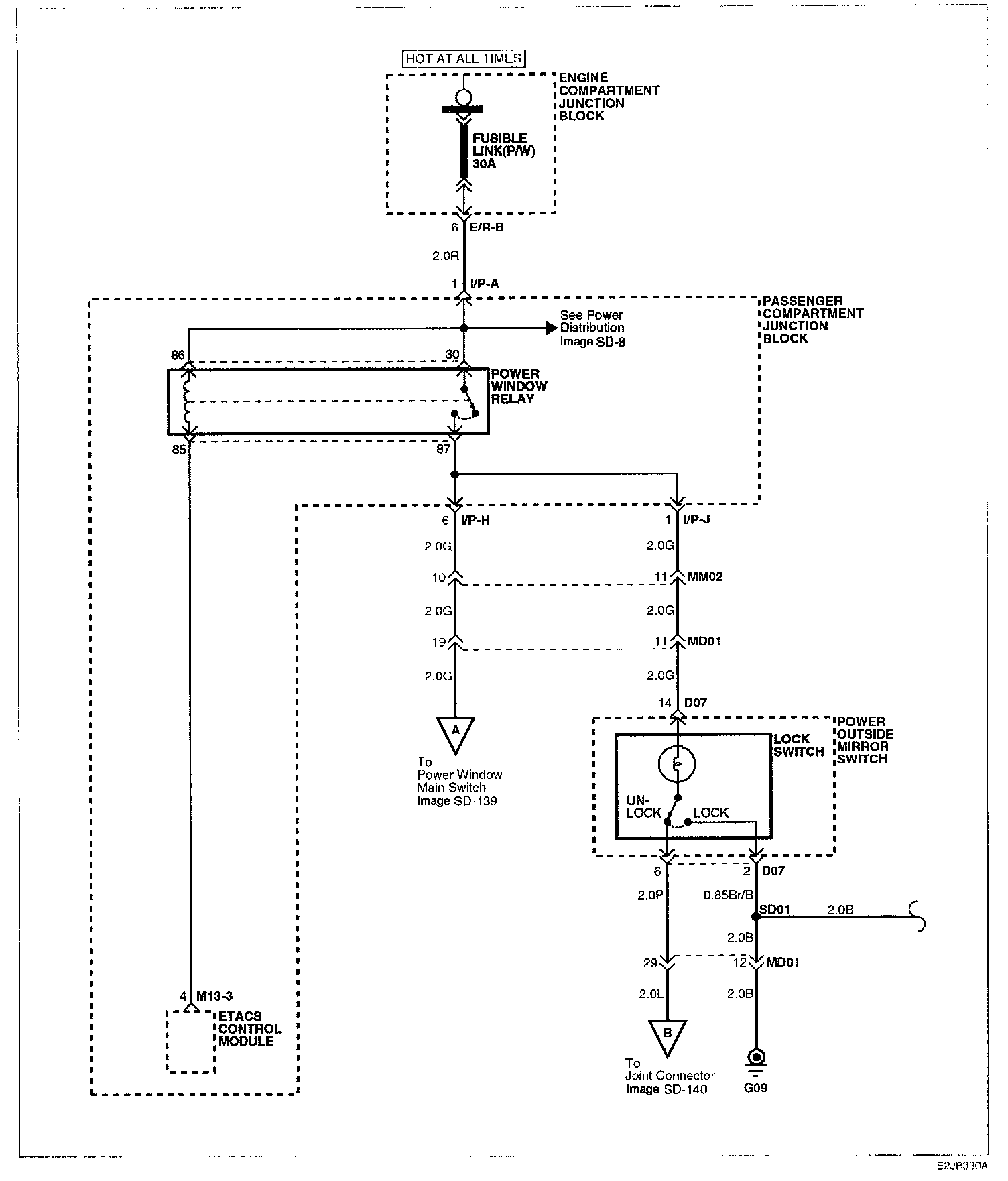

Image SD-138 - Power Windows (1):

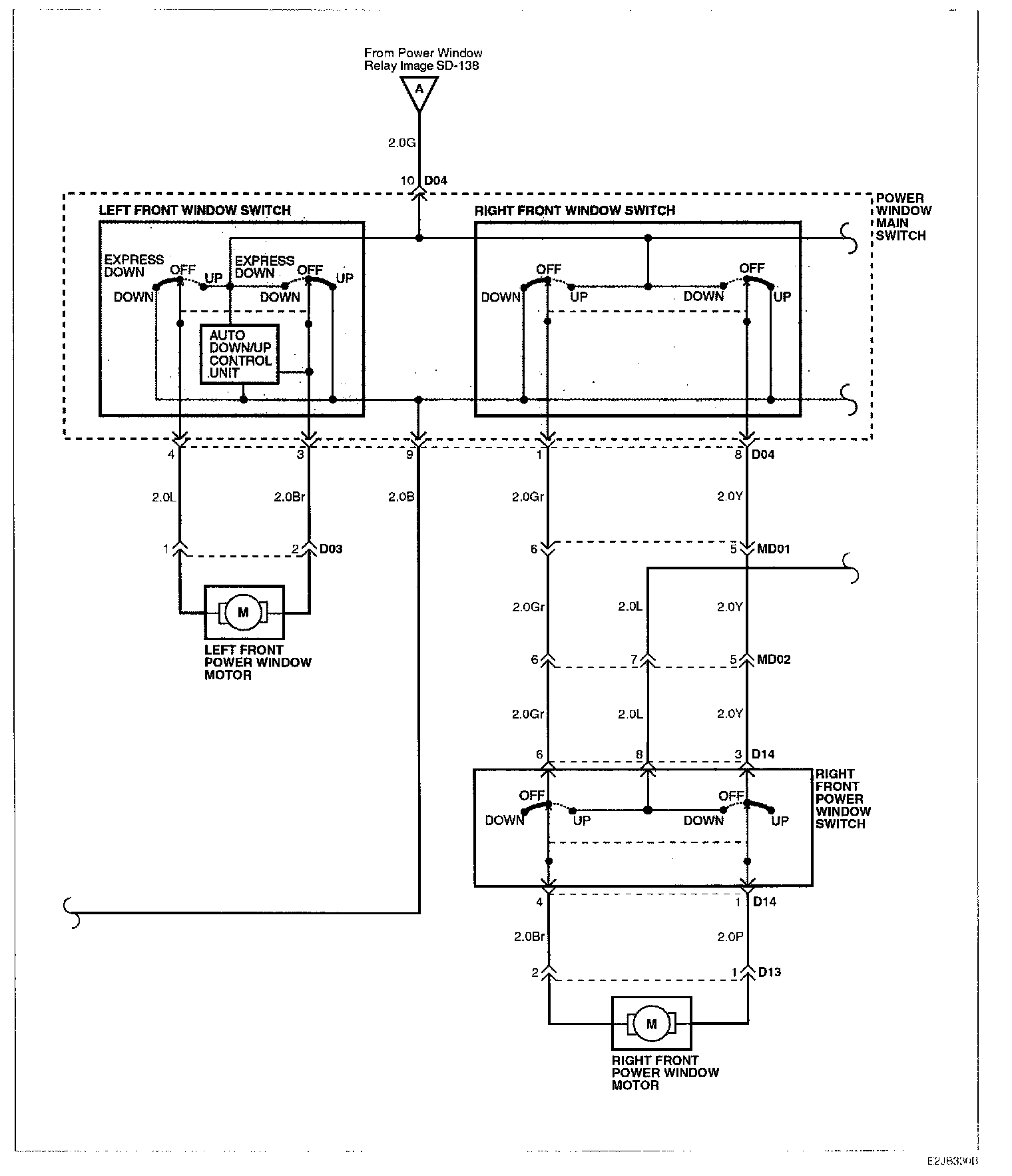

Image SD-139 - Power Windows (2):

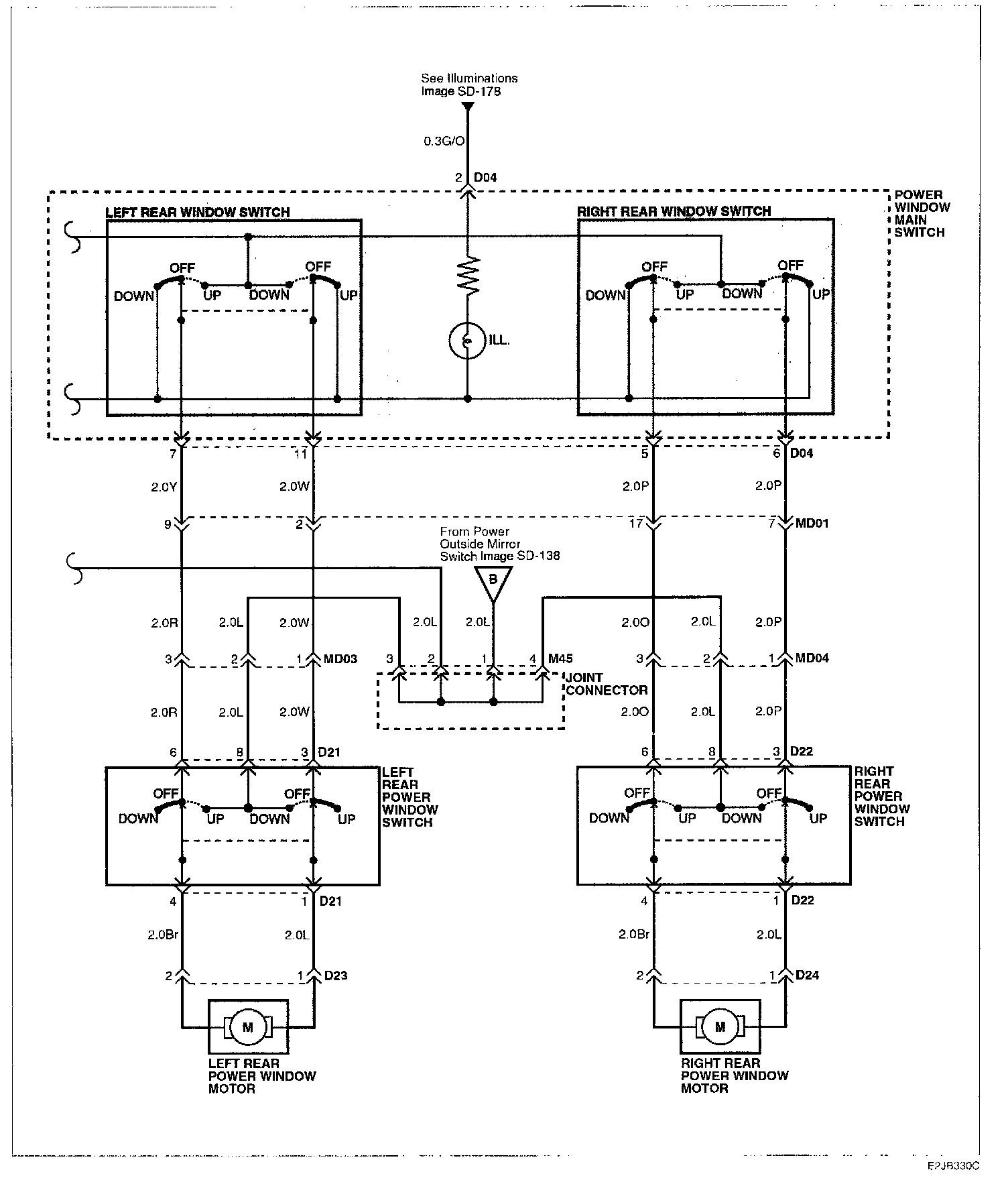

Image SD-140 - Power Windows (3):
