Home >> Hyundai >> 2001 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Air Bag

Air Bag

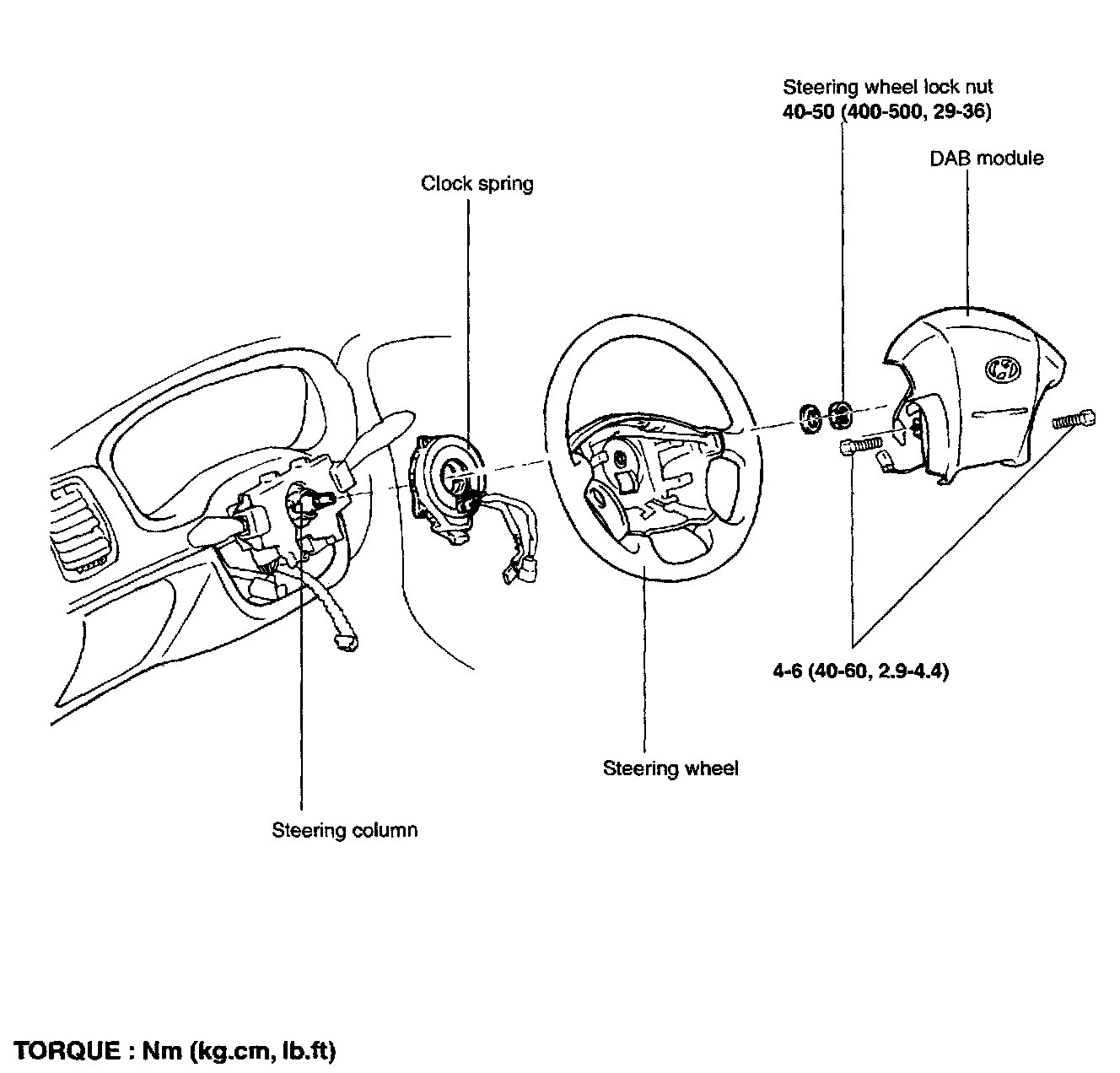

Air Bag Module (Driver) And Clock Spring:
