Blower Motor: Service and Repair

Blower Motor

REMOVAL

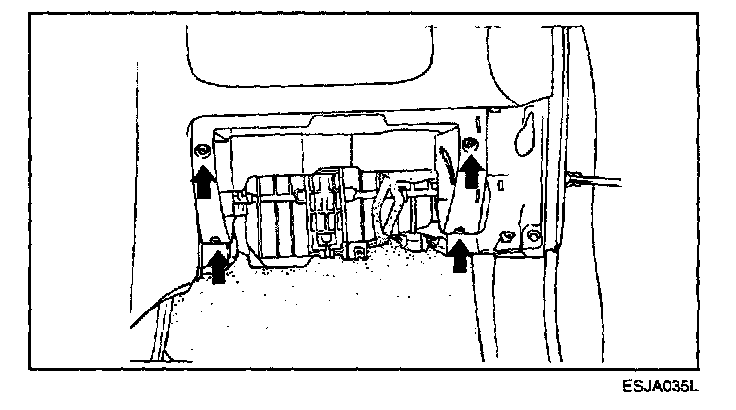

1. Remove the glove box housing.

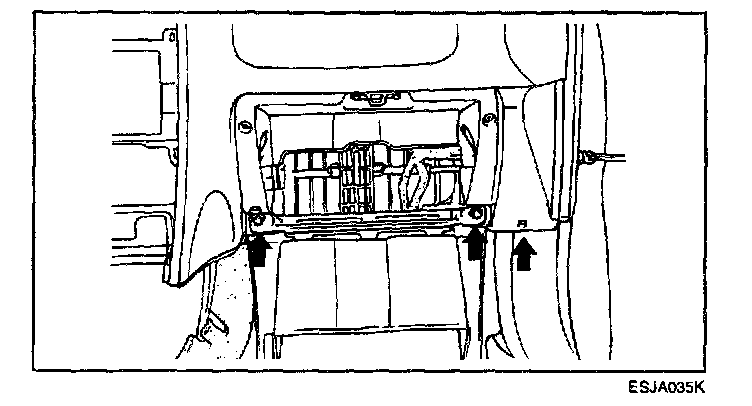

2. Remove the lower side cover of the crash pad.

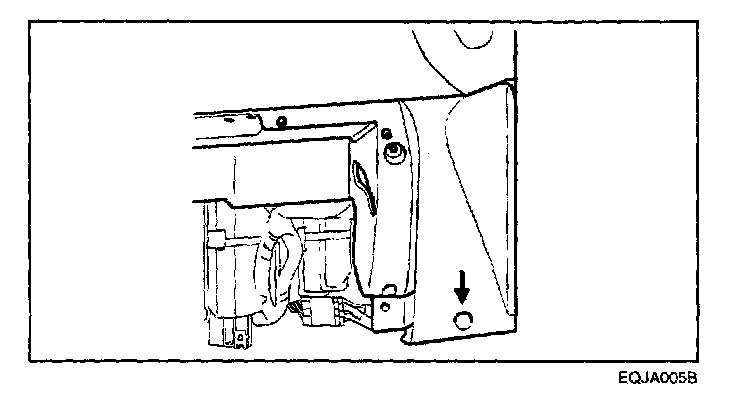

3. Remove the upper cover of the glove box.

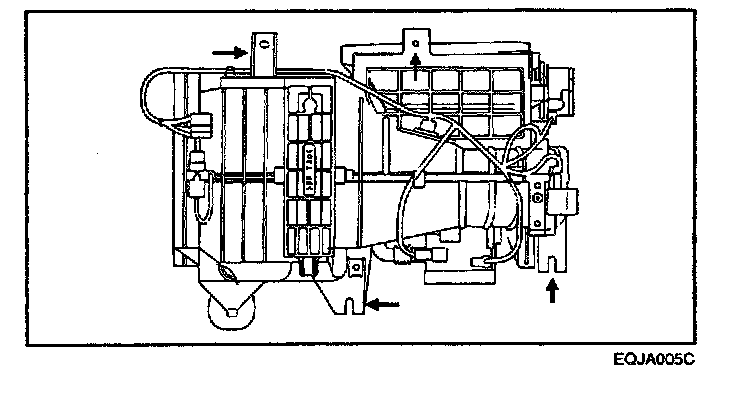

4. Remove the evaporator and blower mounting bolts.
5. Remove the blower motor.

INSTALLATION
Installation is the reverse of removal.
