Magnetic Clutch Operation




MAGNETIC CLUTCH OPERATION

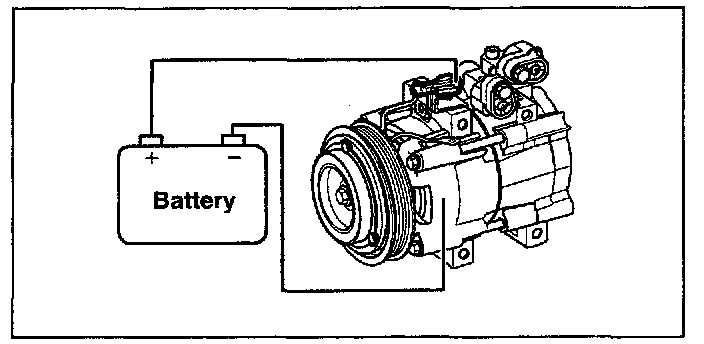

Connect the compressor terminal to battery(+) and the battery(-) terminal to the compressor body. Verify magnetic clutch operation by a clicking noise.
