Heating and Ventilation

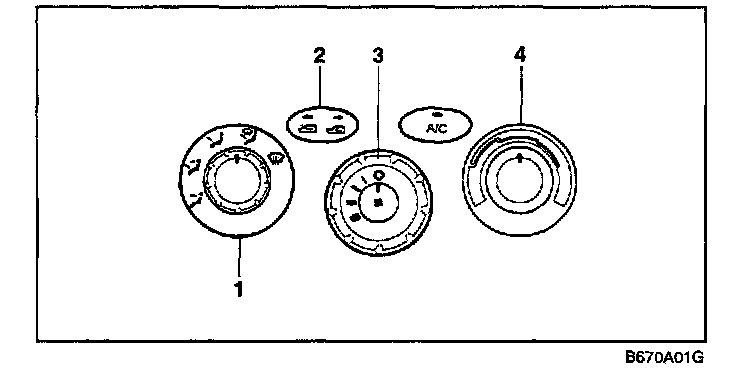

There are four controls for the heating and cooling system. They are:

1. Air flow control.
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air positions.
2. Air intake control.
This allows you to select fresh outside air or recirculation inside air.
3. Fan speed control.
This is used to turn the fan on and select the fan speed.
4. Temperature control.
This is used to turn the heating system on and off and to select the degree of heating or cooling desired.
