Connector Locations

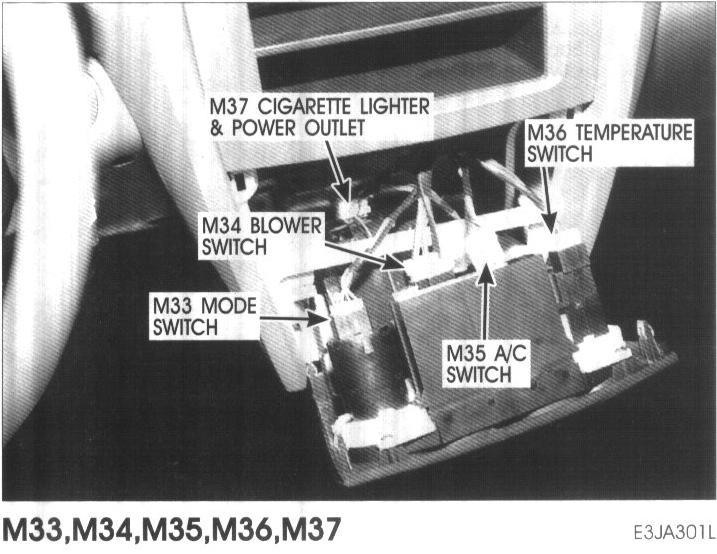

M33 Mode Switch, M34 Blower Switch, M35 A/C Switch, M36 Temperature Switch, M37 Cigarette Lighter And Power Outlet:

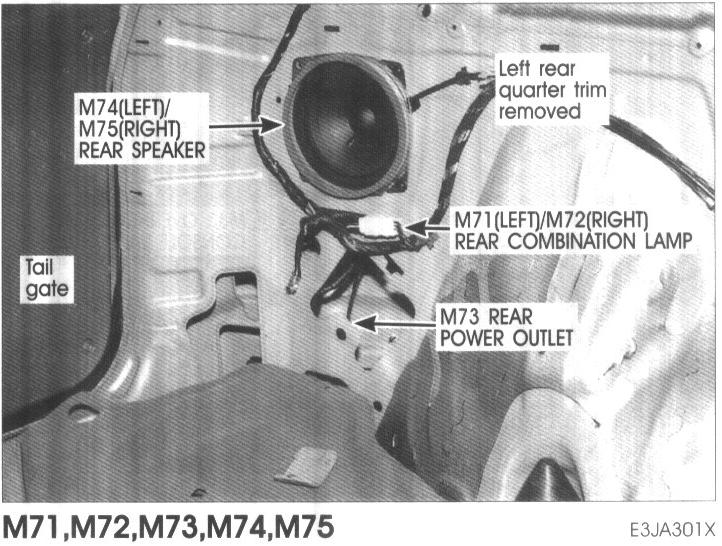

M71, M72 Left And Right Rear Combination Lamp, M73 Rear Power Outlet, M74, M75 Left And Right Rear Speaker:
