Home >> Hyundai >> 2001 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams

Electrical Diagrams

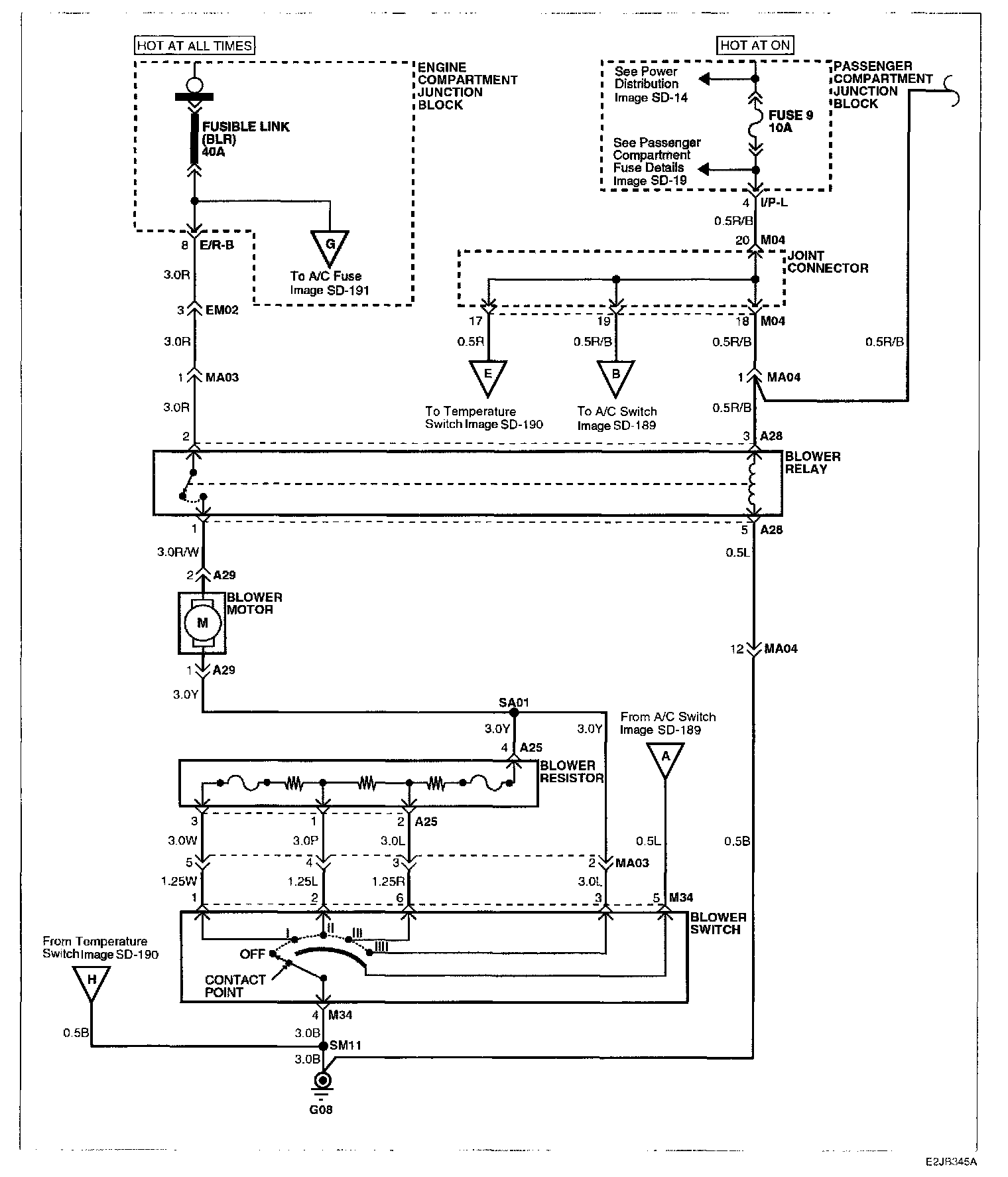

Image SD-188 - Blower And A/C Controls (1):

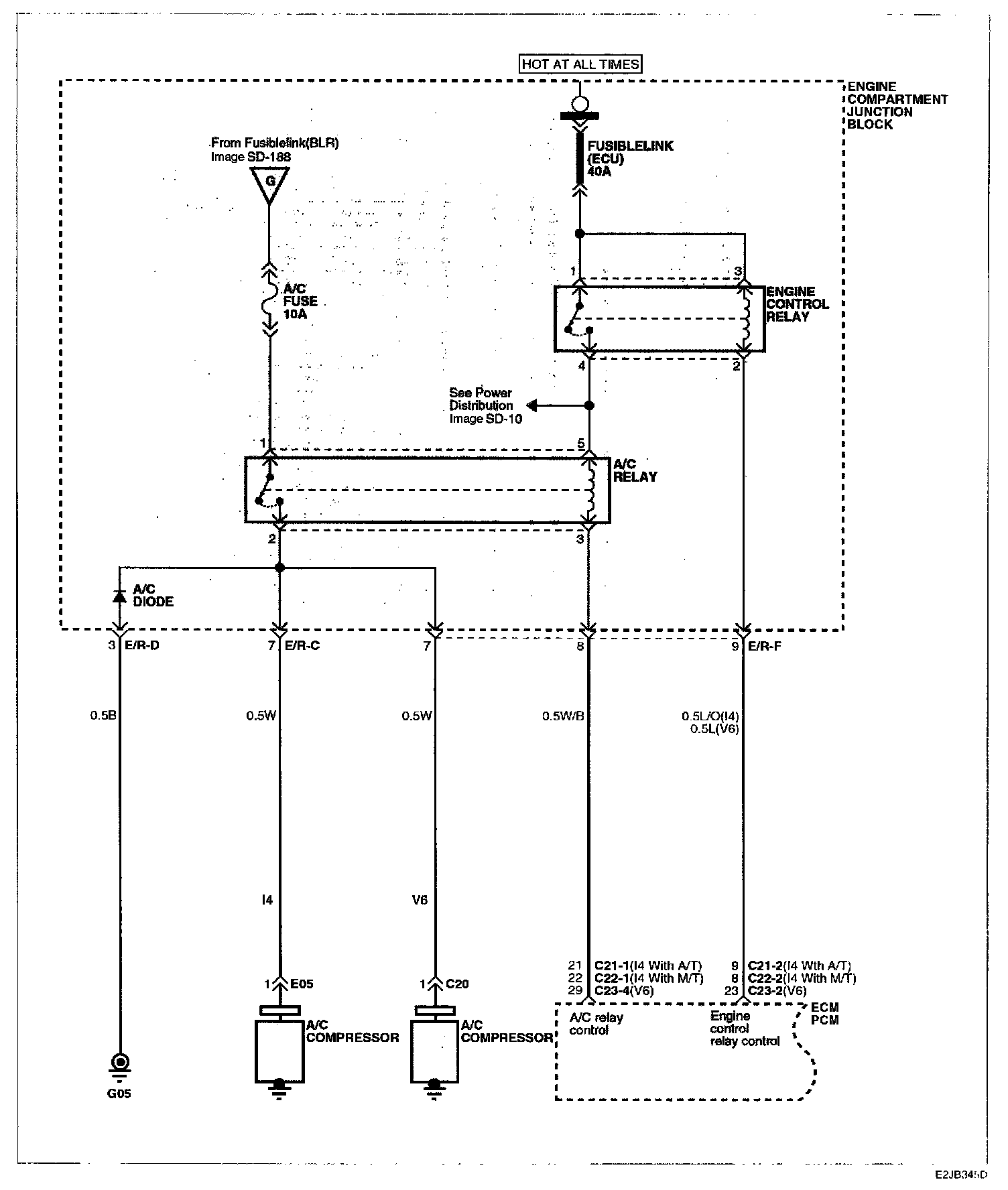

Image SD-189 - Blower And A/C Controls (2):

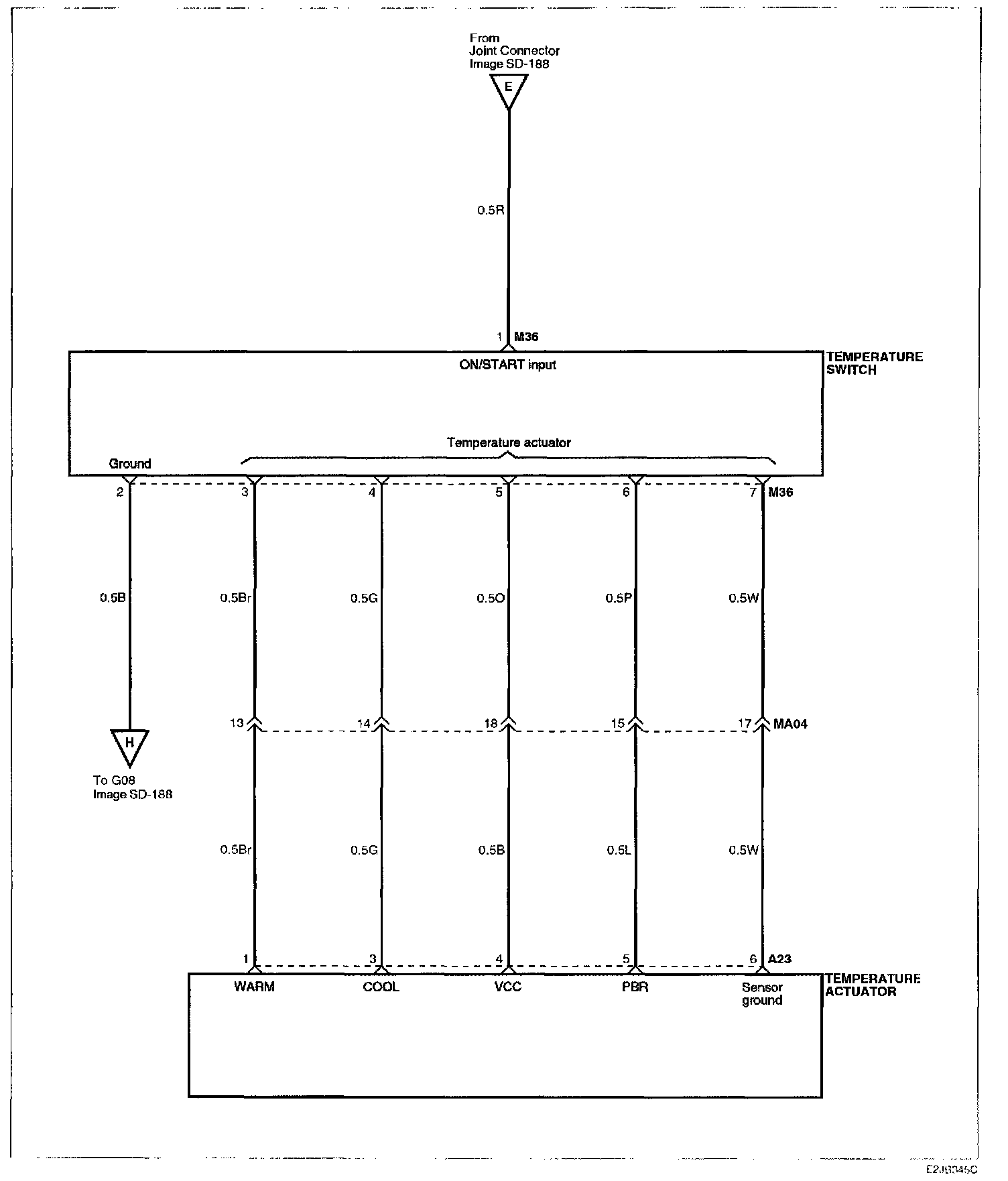

Image SD-190 - Blower And A/C Controls (3):

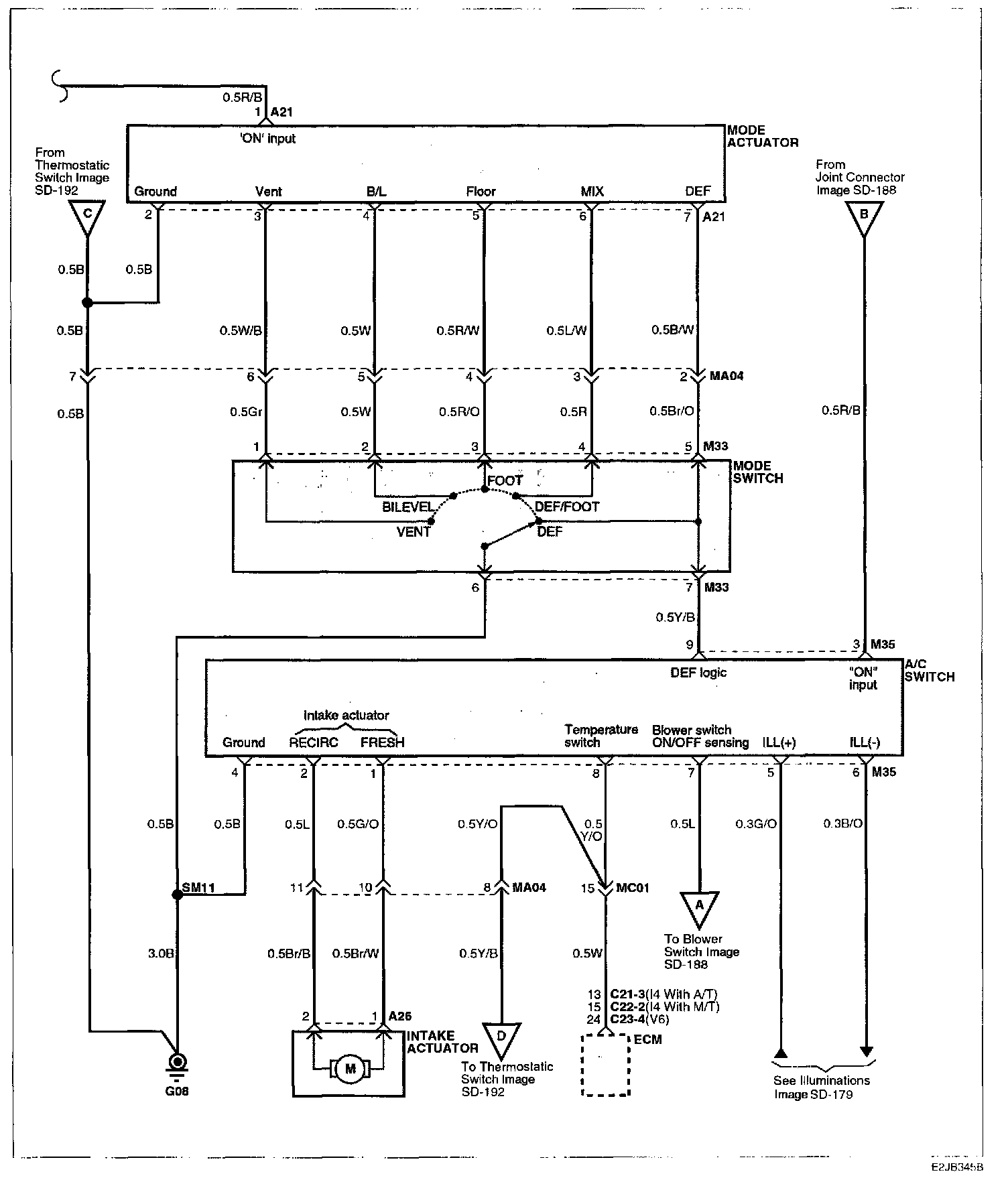

Image SD-191 - Blower And A/C Controls (4):



Image SD-192 - Blower And A/C Controls (5):
