Fog/Driving Lamp: Adjustments

The front fog lamps should be aimed in the same manner of the head lamps aiming.

With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear.

Head Lamp And Fog Lamp Aiming Point:

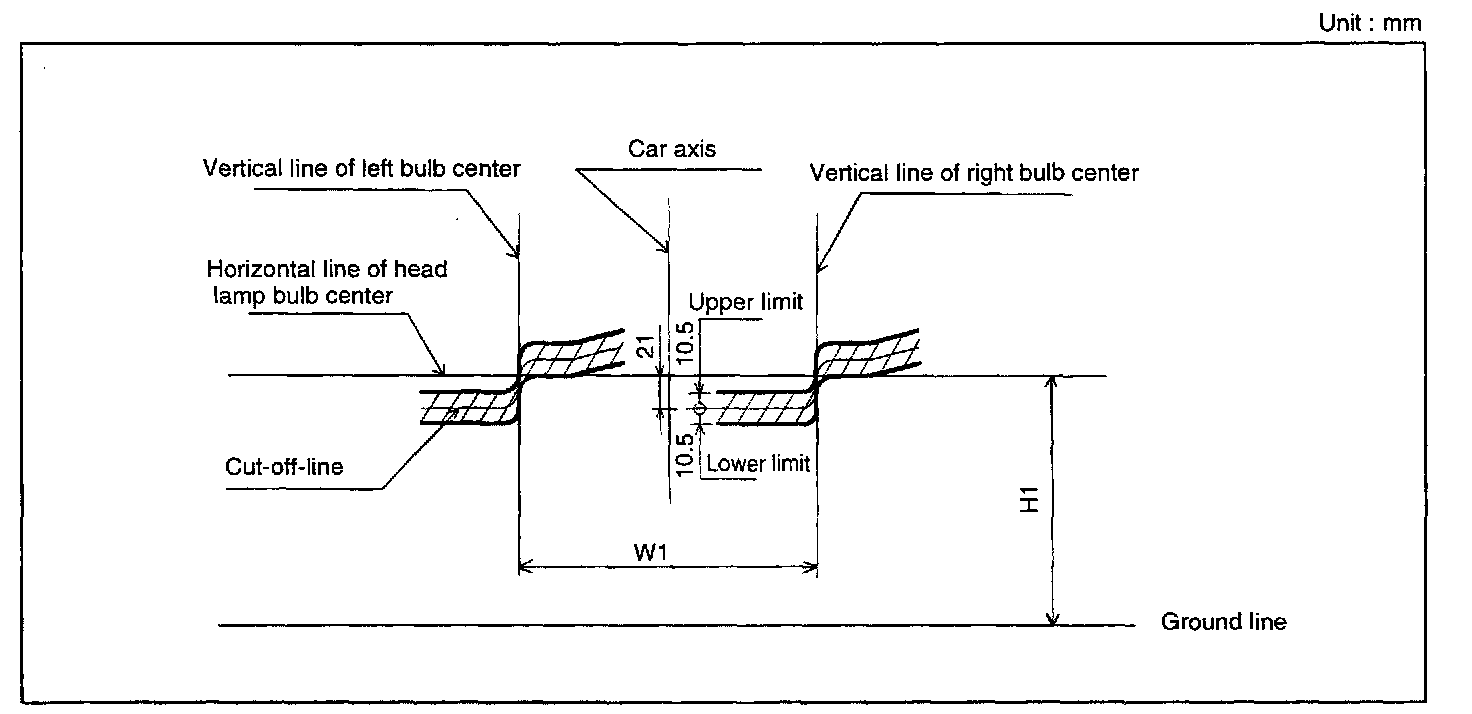

- Turn the low beam on without the driver aboard. The cut-off line should be projected in the allowable range (shaded region).

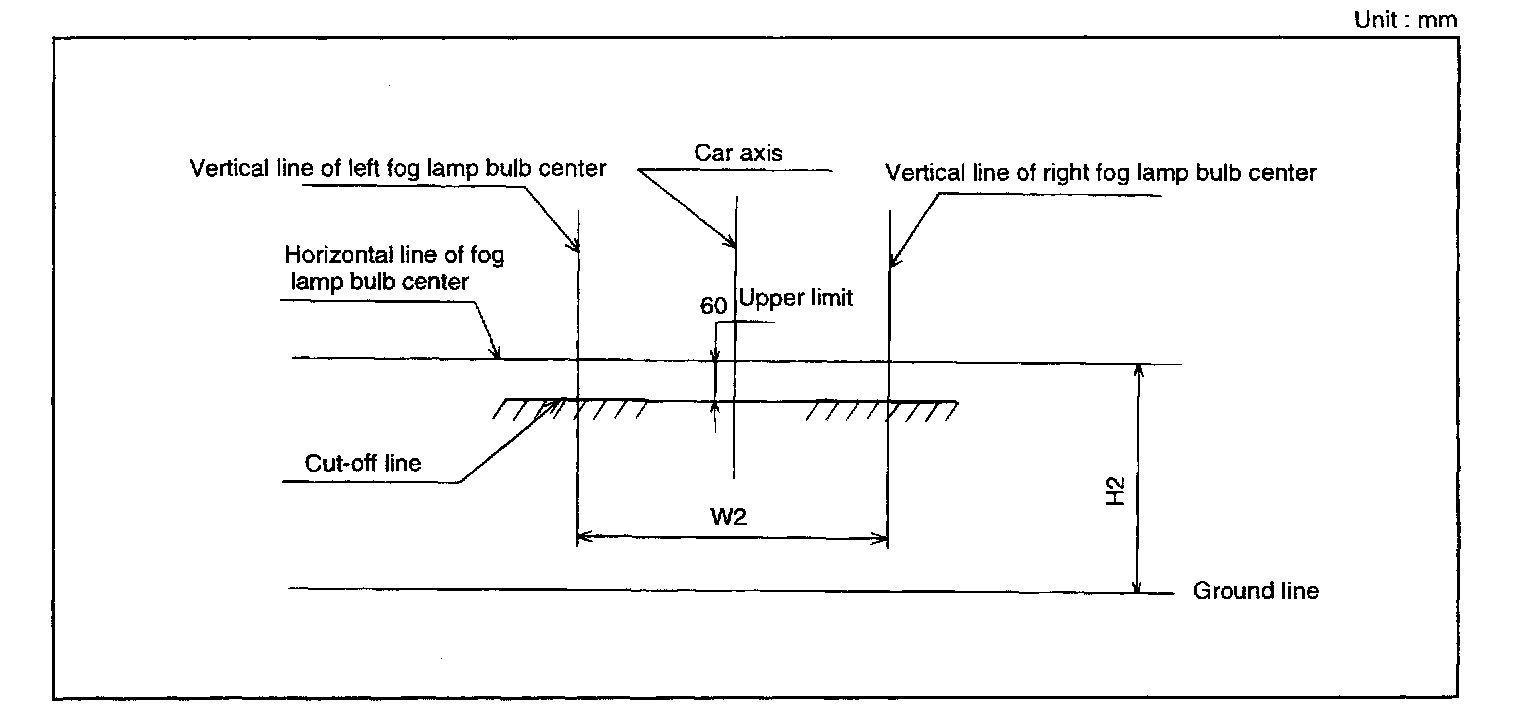

- Turn the front fog lamp on without the driver aboard. The cut-off tine should be projected in the allowable range. (shaded region)
