Map Light: Testing and Inspection
MAP LAMP SWITCH
1.
Disconnect the negative (-) battery terminal.
2.

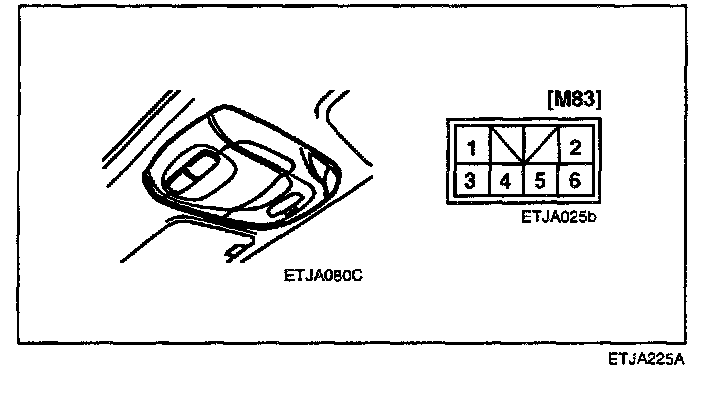

Remove the overhead console.
3.

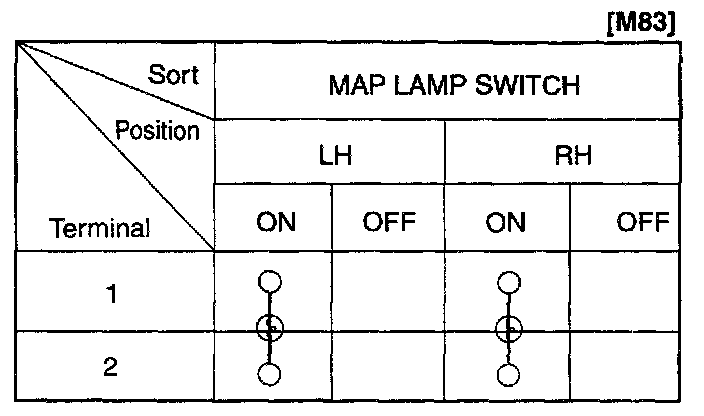

Disconnect the connector from the map lamp switch and then check for continuity between the terminals.

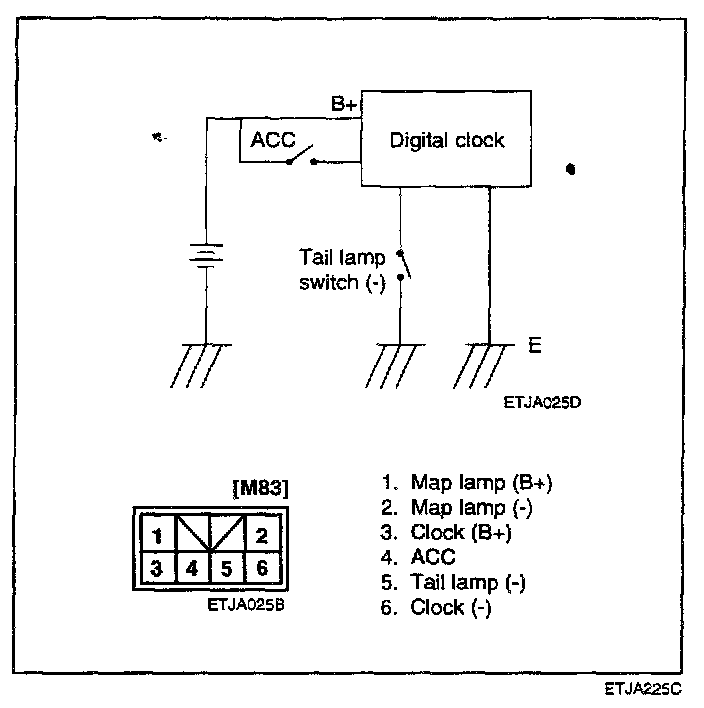

Digital Clock:
