Combination Switch: Testing and Inspection

Check the continuity between the terminals while operating the switch

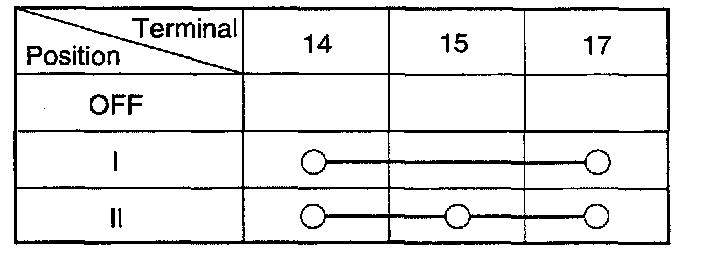

Lighting Switch [M01-2]:






Dimmer And Passing Switch (Connector No.: M 10-2):

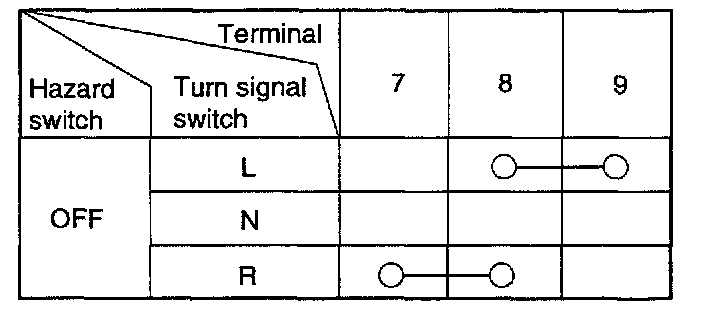

Turn Signal And Lane Change Switch [M01-2]:

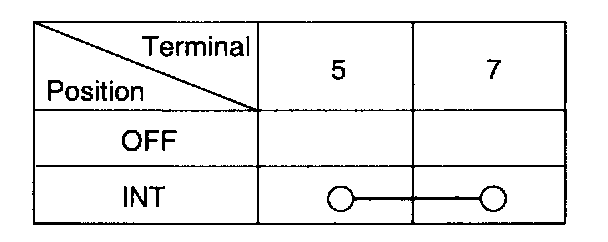

Wiper Switch (Connector No.: M 10-1):






Wiper Switch (Connector No.: M 10-1):






Rear Wiper And Washer Switch [M20-1]:
