Fluid - M/T: Testing and Inspection

TRANSAXLE GEAR OIL INSPECTION
Inspect each component for evidence of leakage. Check the gear oil level by removing the speedometer driven gear. If the oil is contaminated, replace it with new oil.

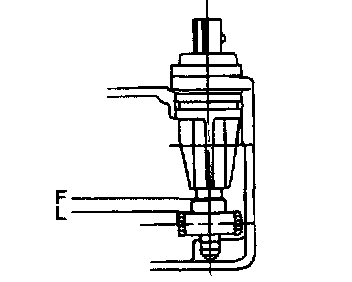

1. Remove the speedometer driven gear and check the level with your finger.





2. Verify that the oil level is between "F" and "L" on the speedometer driven gear.
3. If oil level is "L", fill with the specified type of oil until the level reaches "F".
