Body Control Module: Service and Repair

REMOVAL AND INSTALLATION
1. Disconnect the negative (-) battery terminal
2. Remove the lower crash panel.

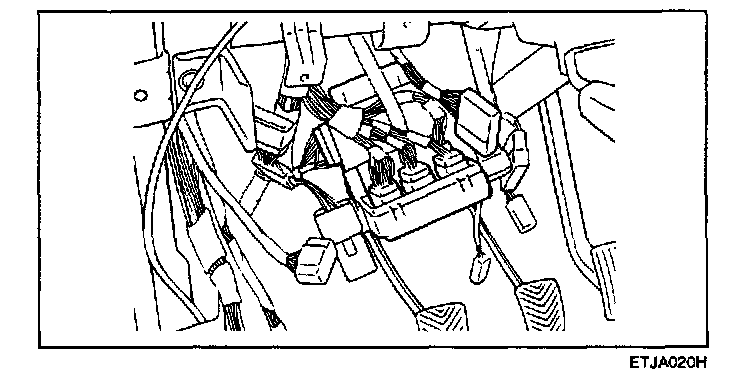

3. Remove the ETACS CM from the junction block and disconnect the connectors.
4. Installation is the reverse of removal.
