Air Bag Systems
Air Bag Systems

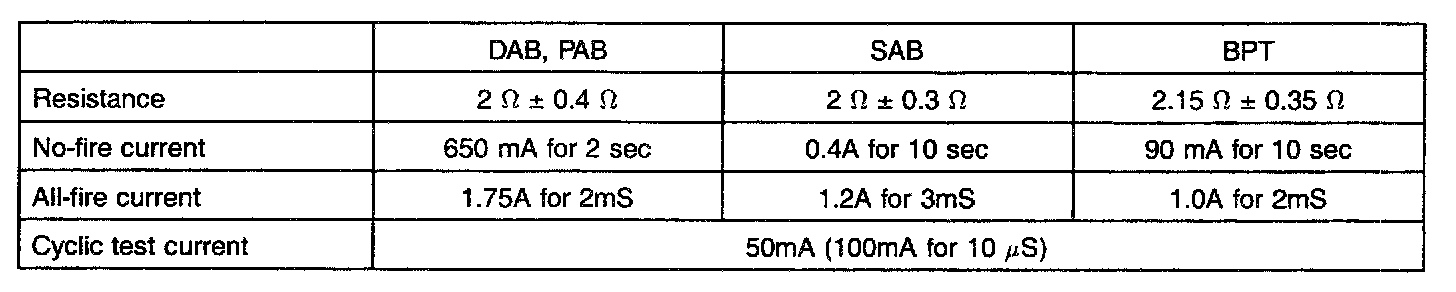

Specification (SRE-LC, SRE-HMC):

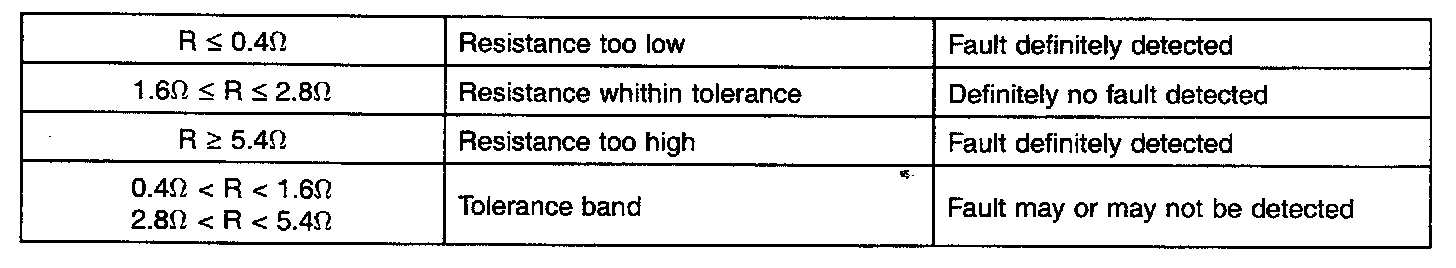

Airbag, Squib Resistance Limits (SRE-LC, SRE-HMC) - DAB:

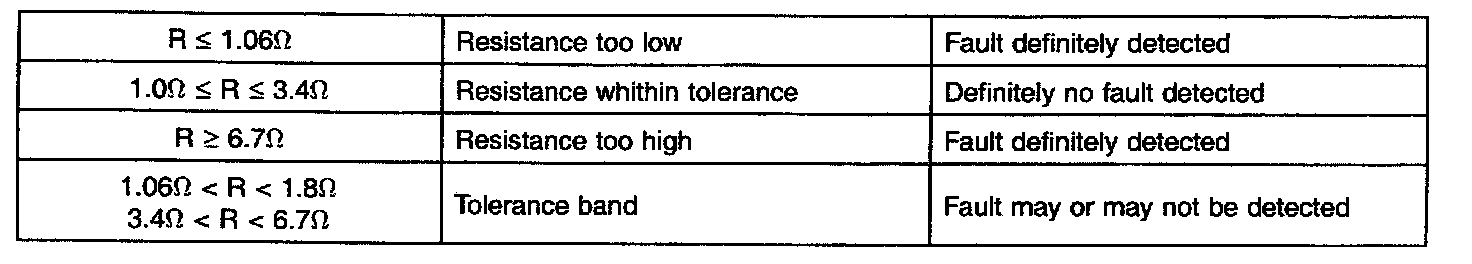

Airbag, Squib Resistance Limits (SRE-LC, SRE-HMC) - PAB, SAB, BPT:

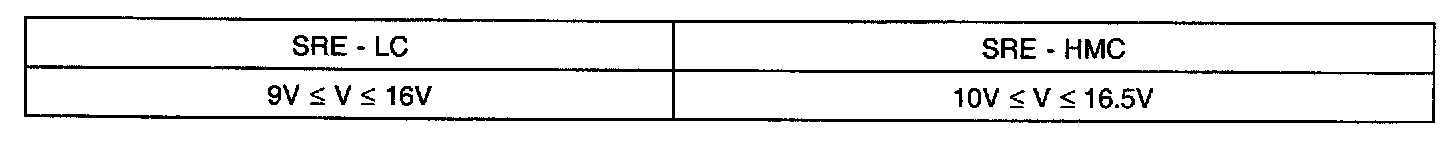

Battery Voltage Specification:
