A/T Technical Data

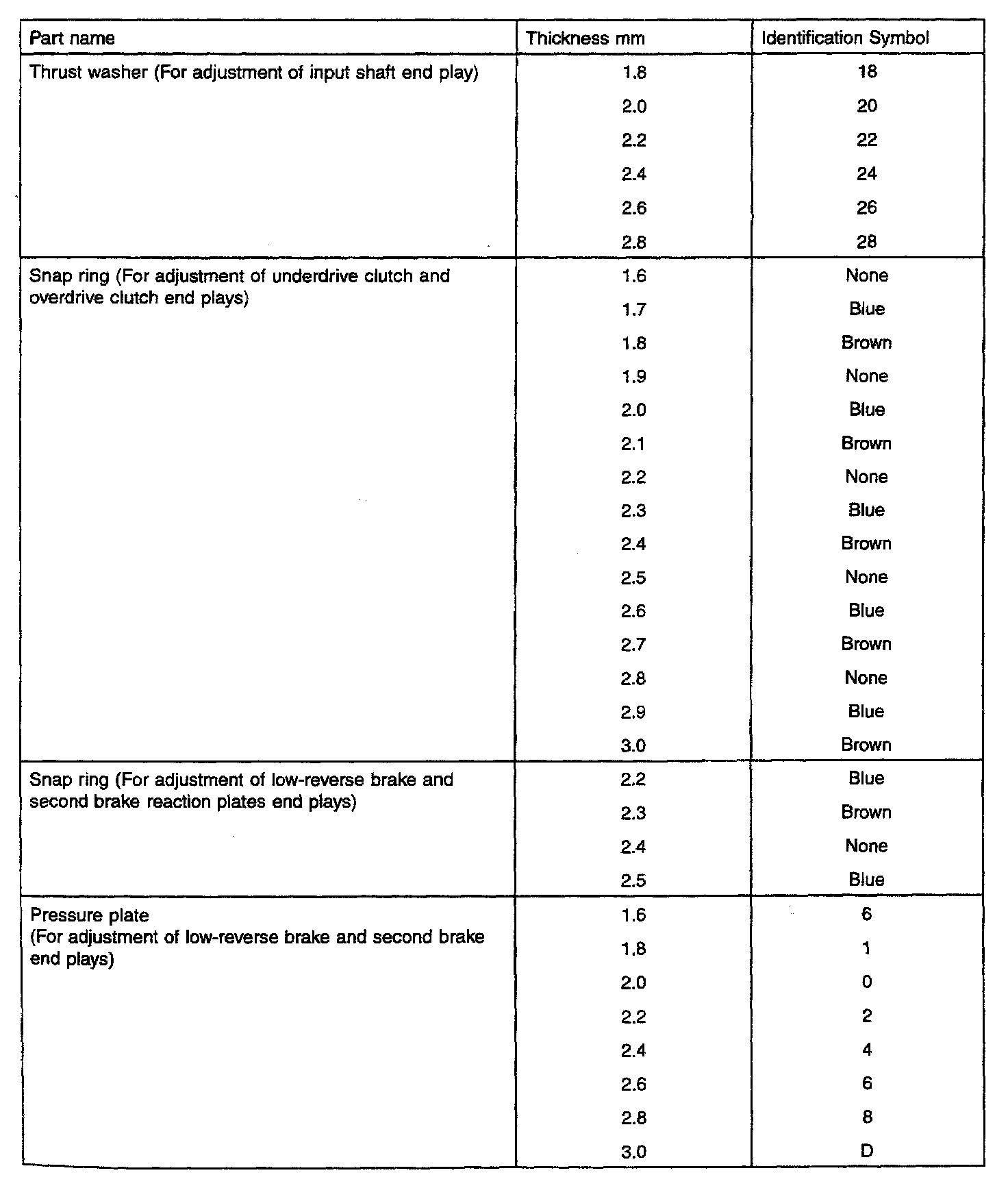

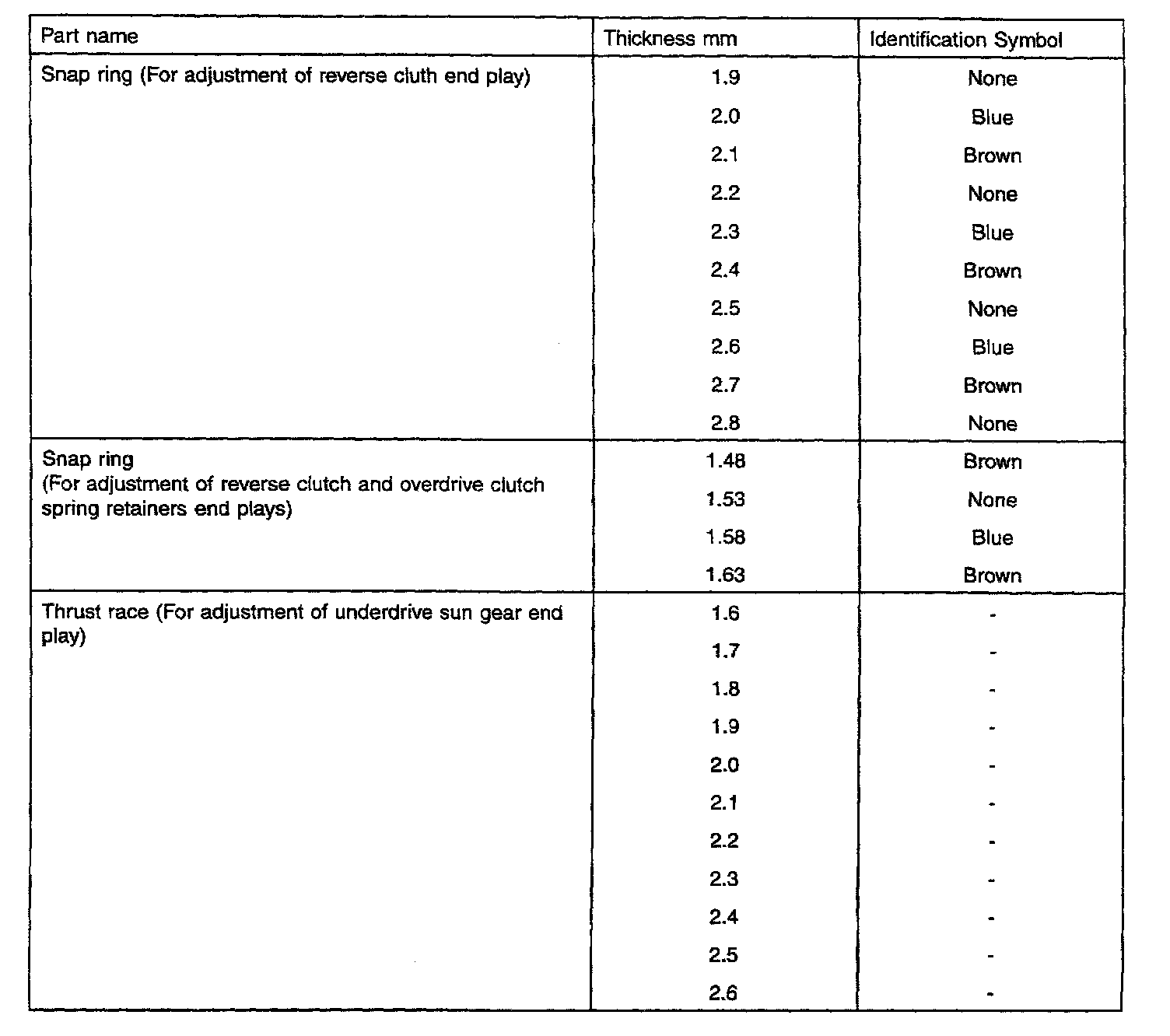

F4A51 4-spd A/T, Transmission End Plays:

F4A51 4-spd A/T, Transmission End Play:

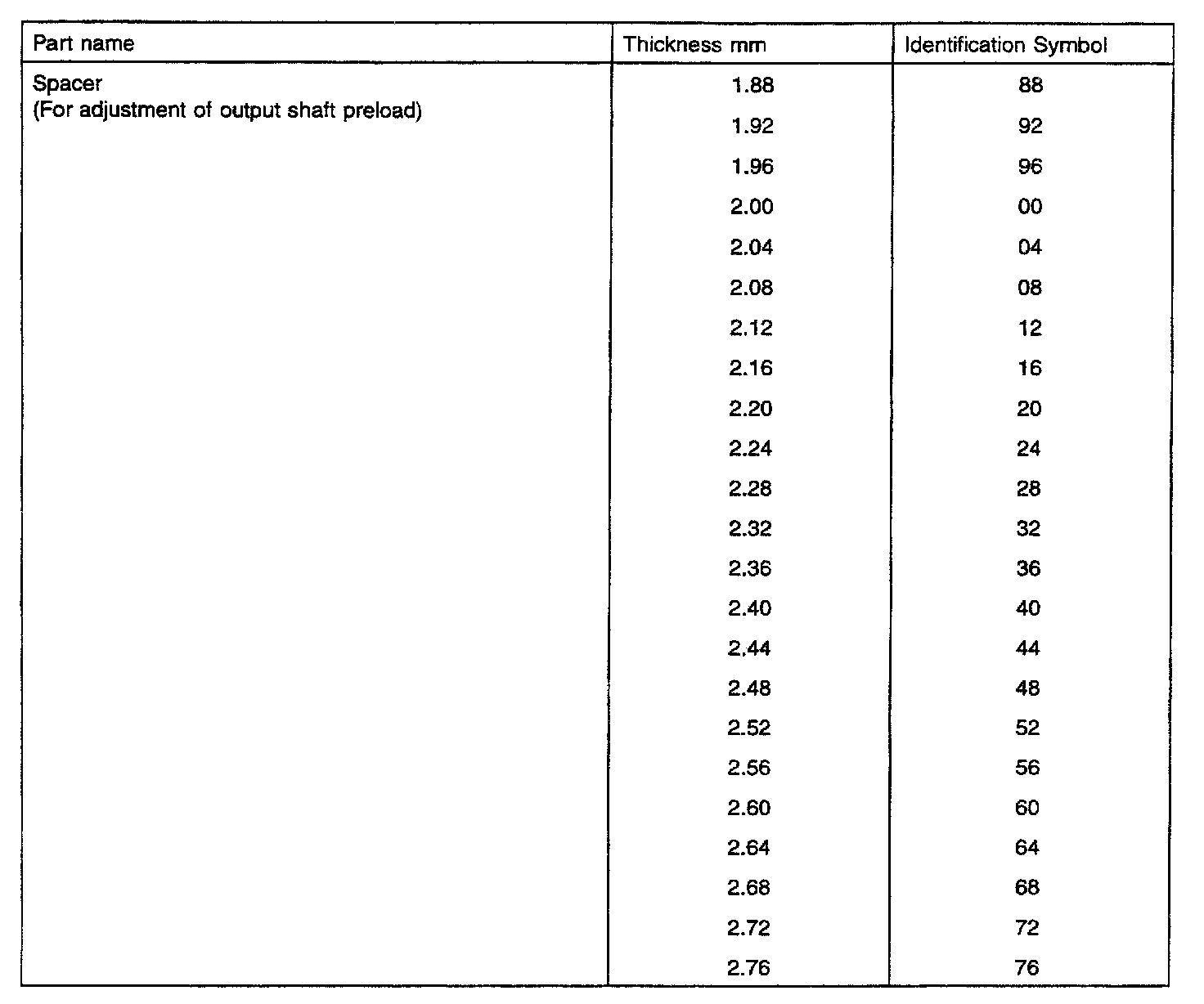

F4A51 4-spd A/T, Transmission Preload:

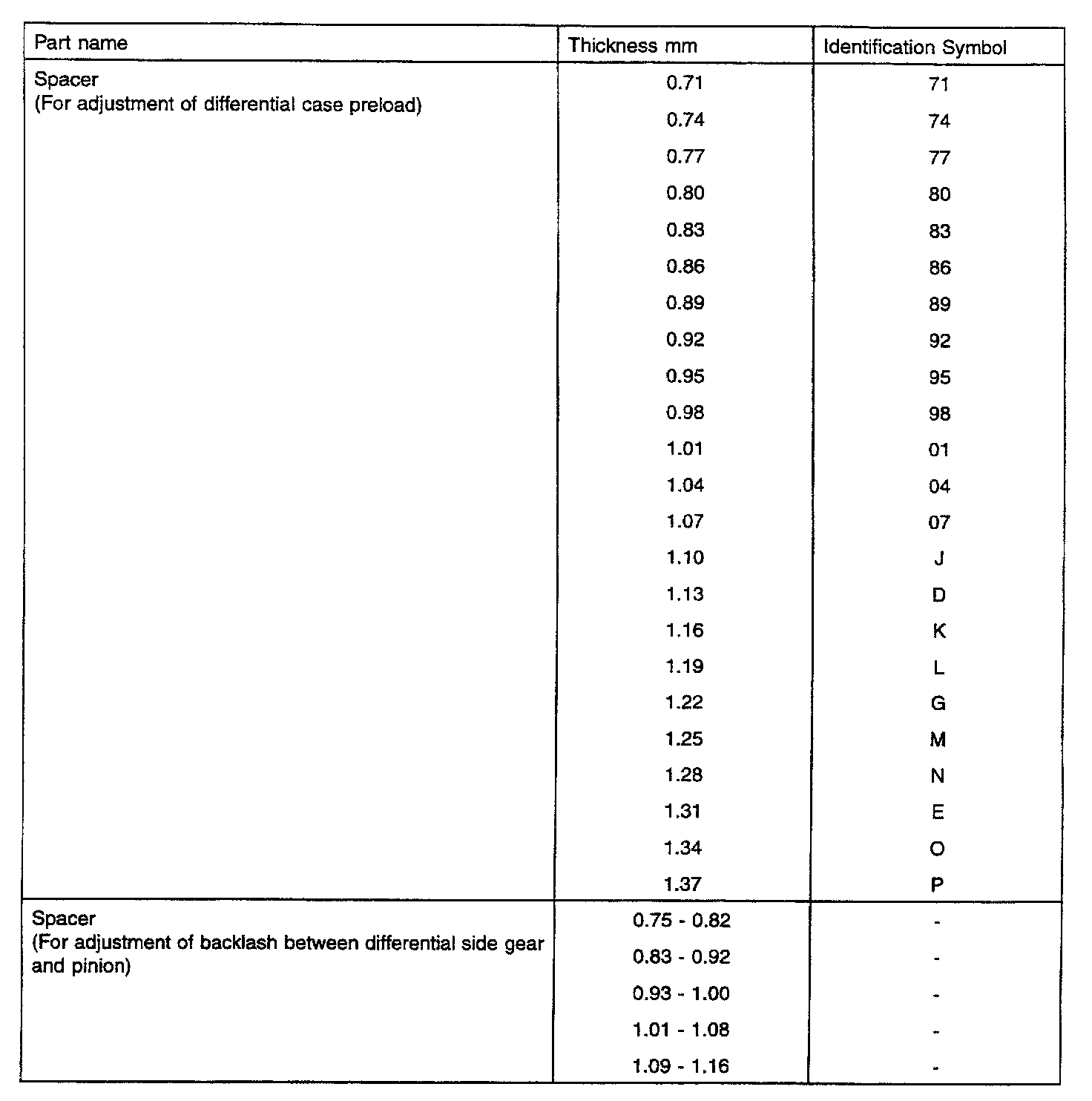

F4A51 4-spd A/T, Transmission Differential Case Preload & Backlash:

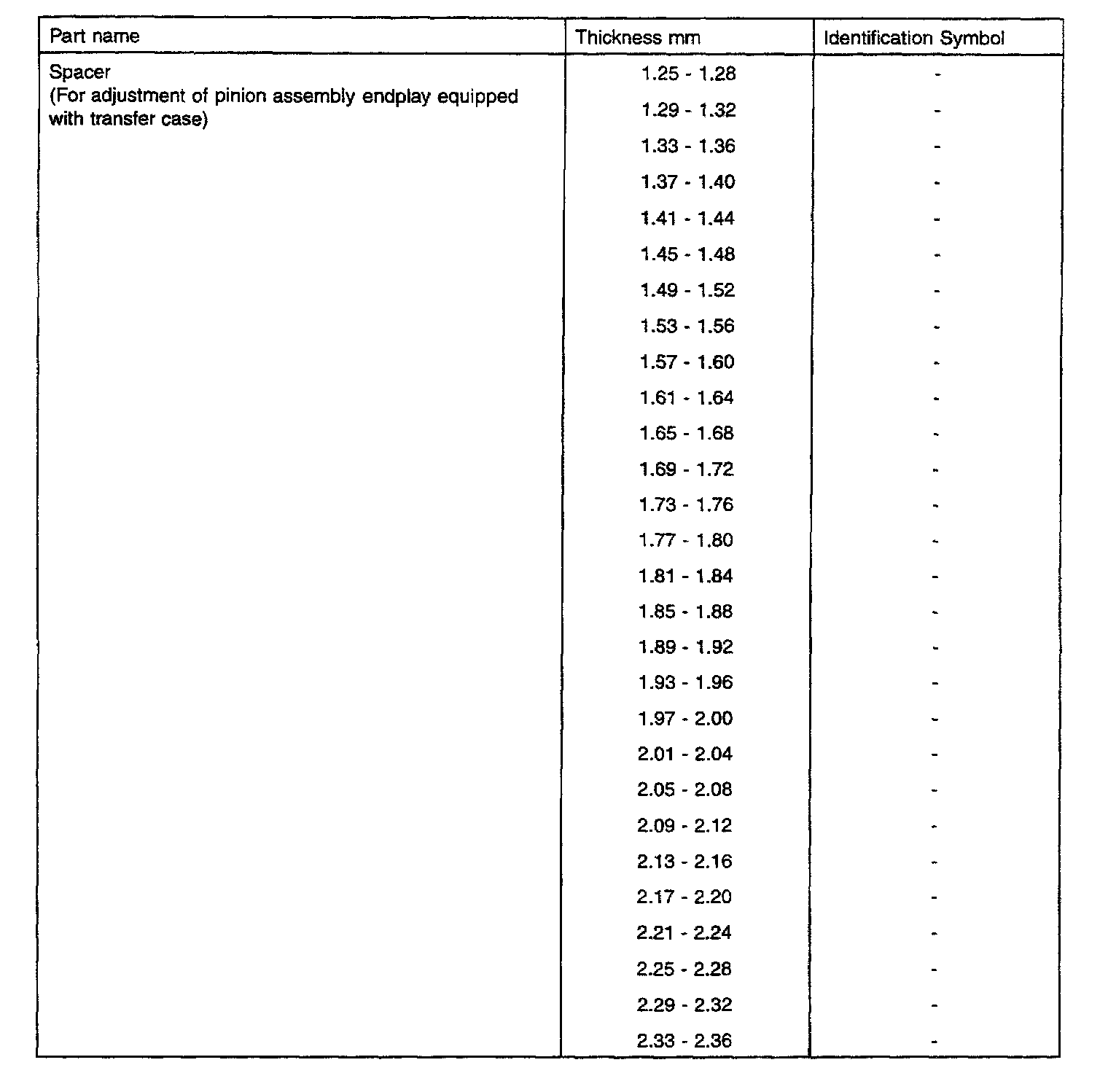

F4A51 4-spd A/T, Pinion Assembly End Play With Transfer Case:

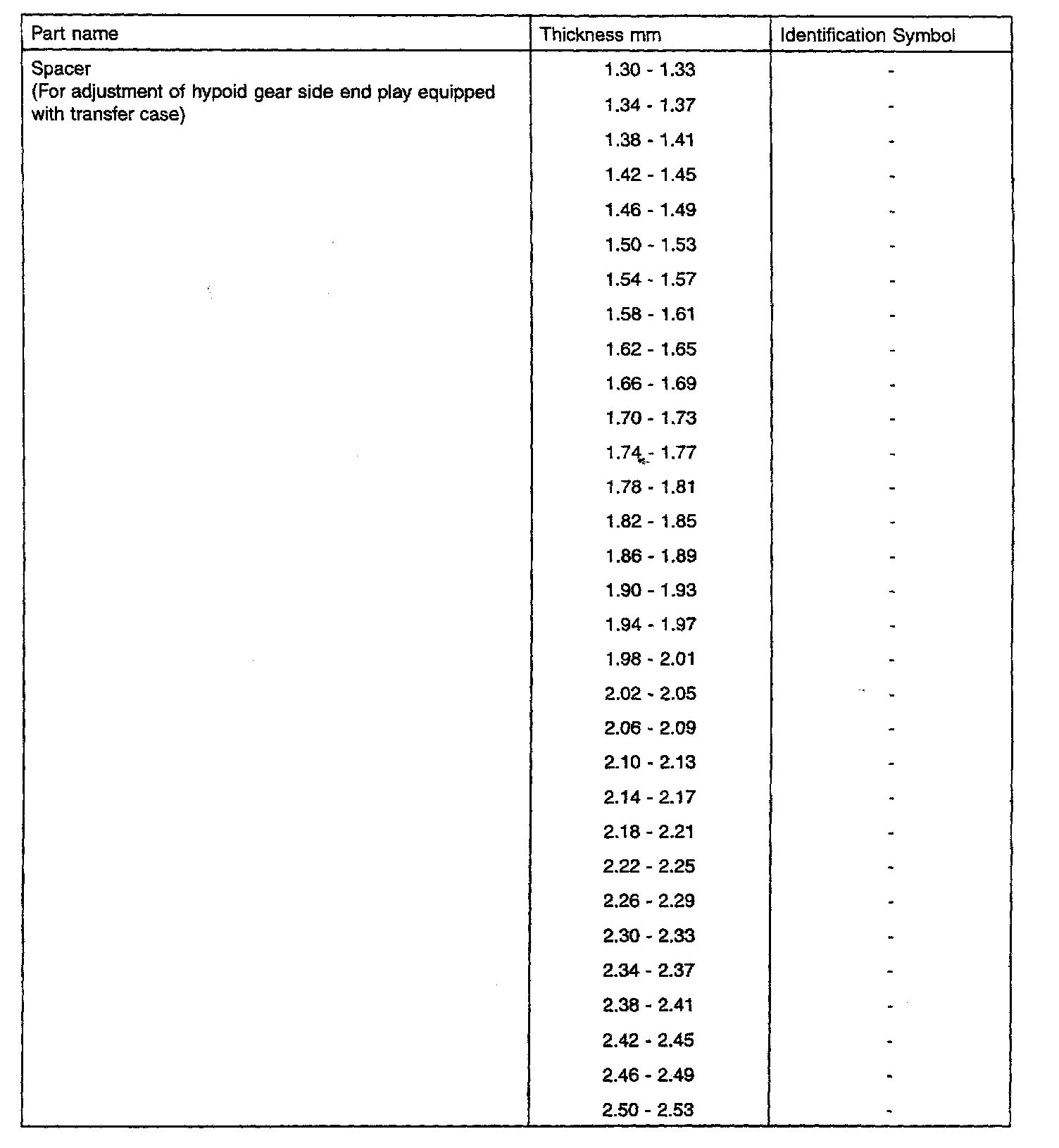

F4A51 4-spd A/T, Hypoid Gear End Play With Transfer Case:

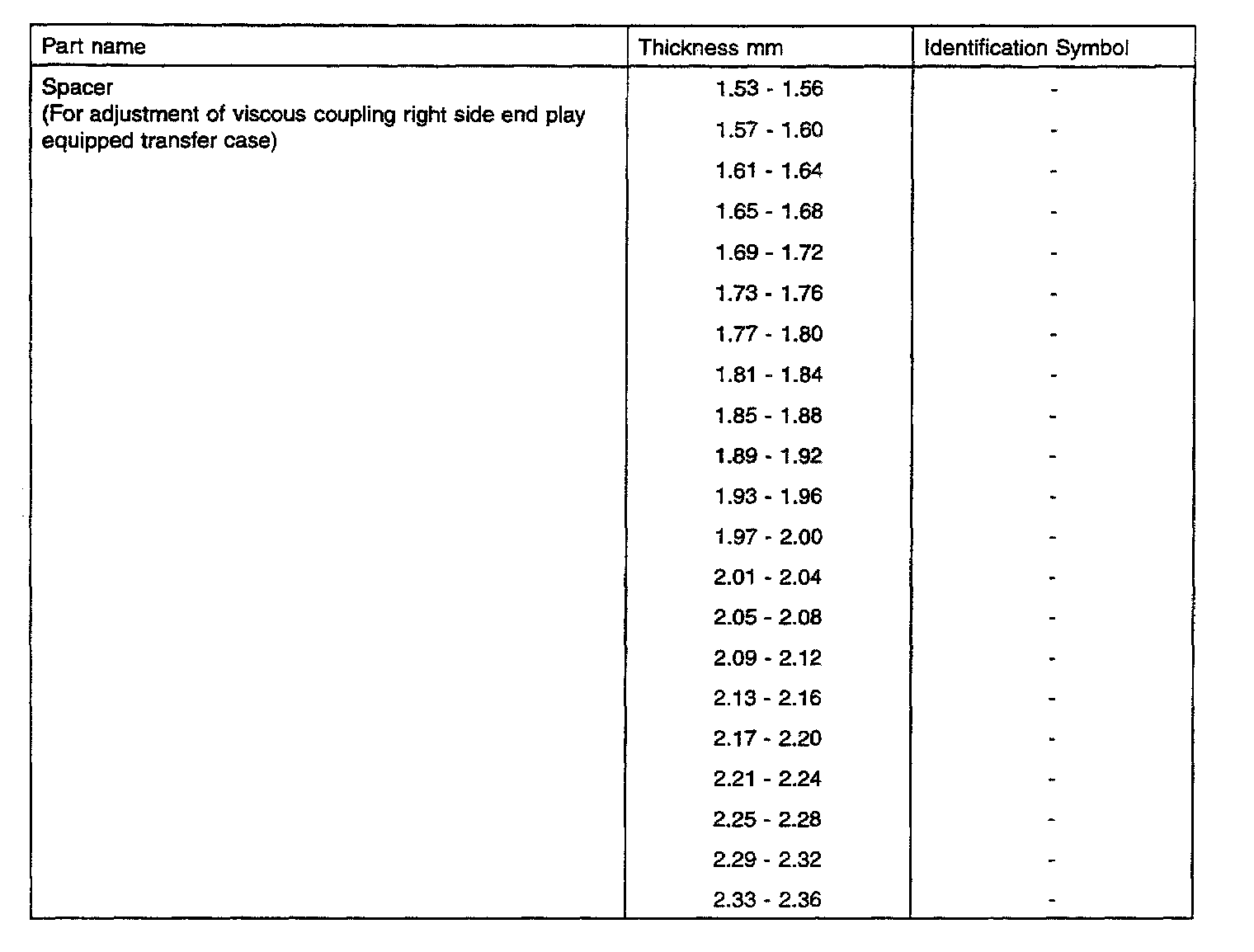

F4A51 4-spd A/T, Viscous Coupling End Play With Transfer Case:
