Home >> Hyundai >> 2001 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive Axles, Bearings and Joints >> System Specifications

System Specifications

SPECIFICATIONS

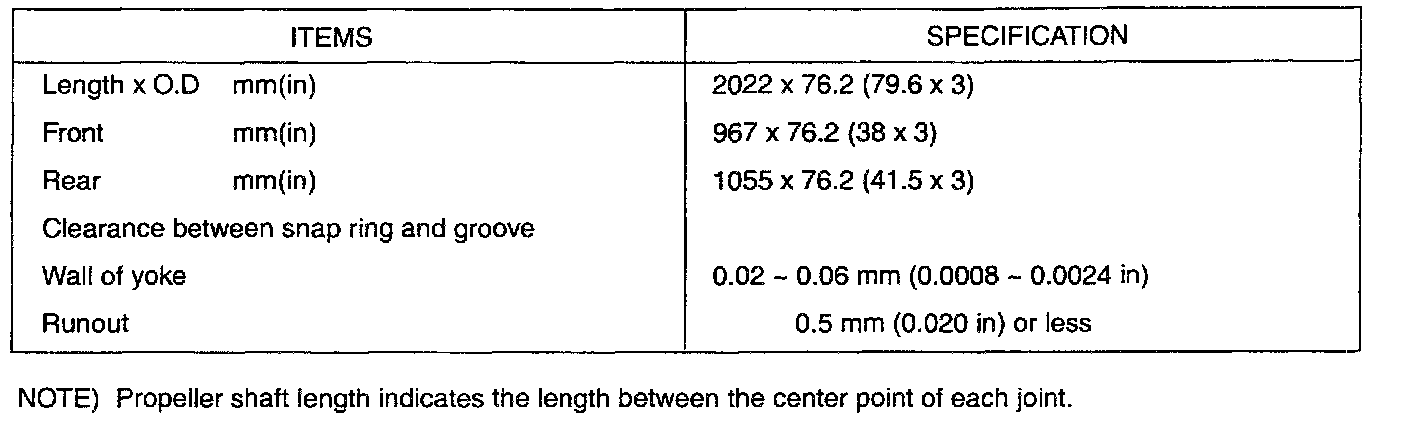

Propeller Shaft

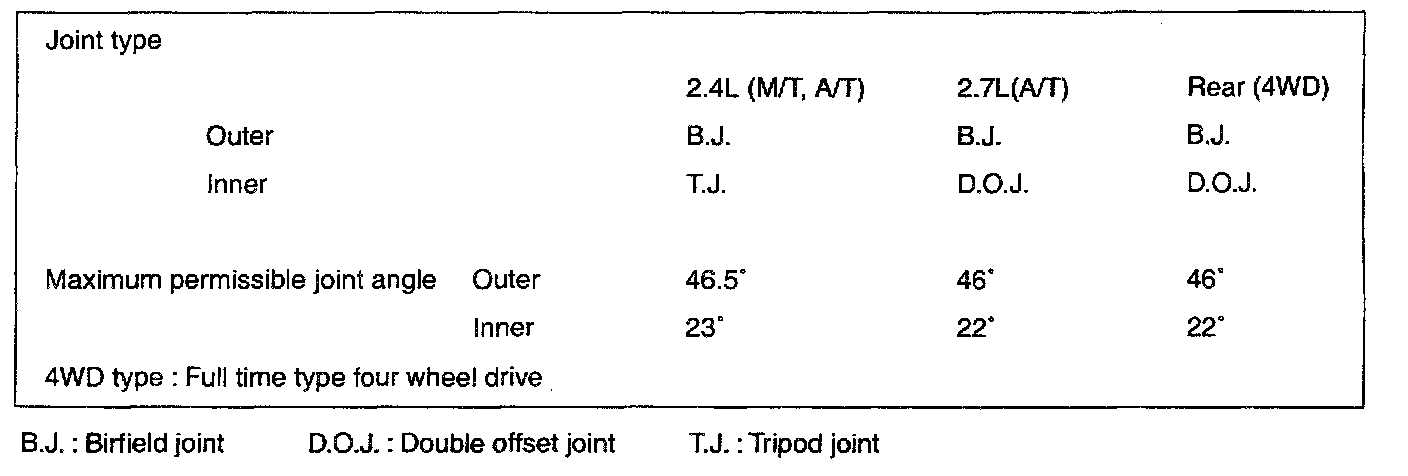

Driveshaft

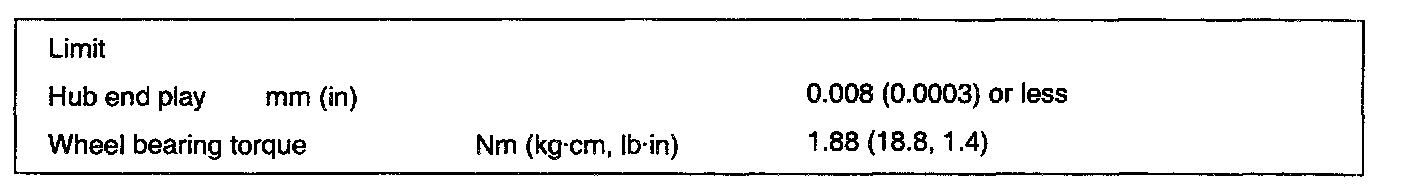

Wheel Bearing

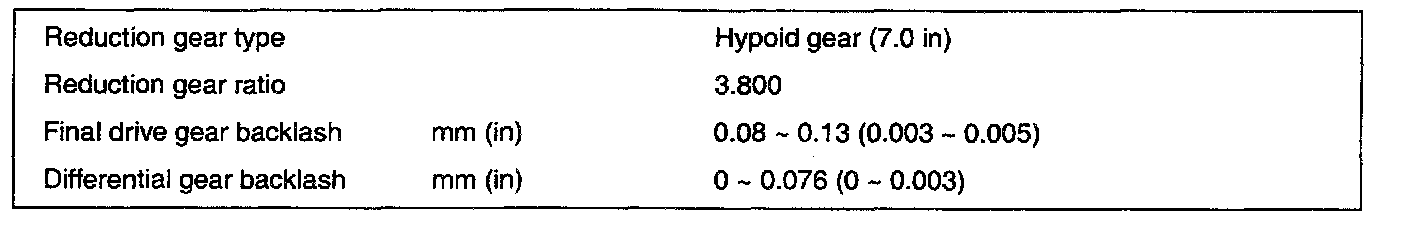

Differential

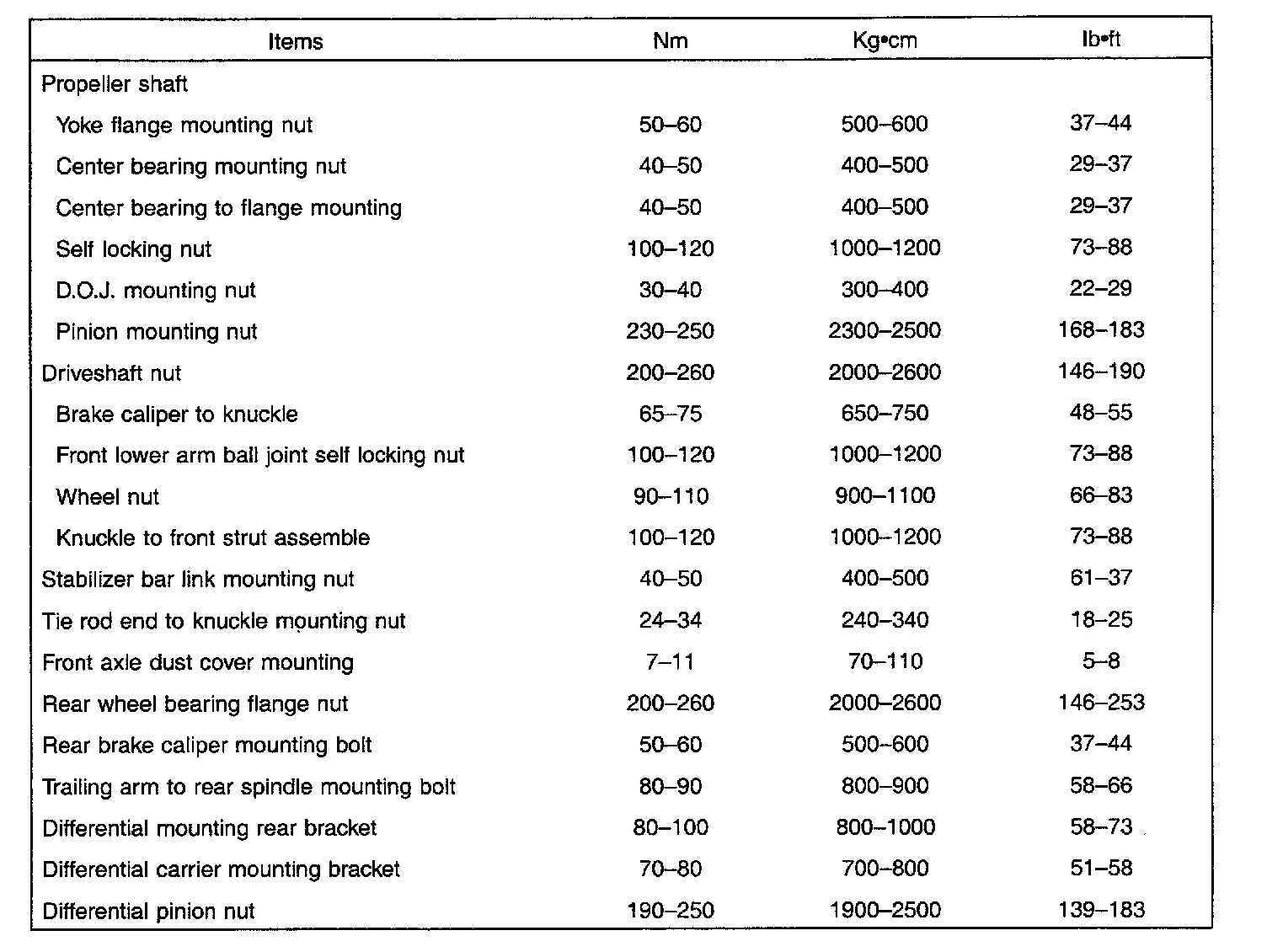

TORQUE SPECIFICATIONS
