Wheel Stud / Lug Nut
Wheel Stud / Lug Nut

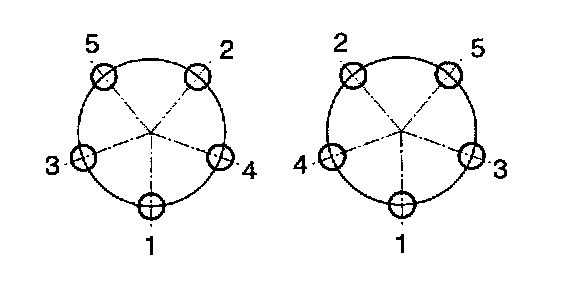

WHEEL NUT TIGHTENING SEQUENCE
WHEEL NUT
Tightening torque:
90 - 110 Nm [900 - 1100 kg-cm, 66 - 81 ft. lbs.]
